2.4 Front Housing Assembly
2.4.1 Main Board
The main board is the control center of the system. It provides communication, display, and data storage functions,
including:
 Display drive and backlight control
 Wired and wireless network
 Data Storage
 Printing
 Serial port communication
 Connection with touchscreen control board
 Audio drive
 EEPROM drive
 USB drive
2.4.2 Keypad
The keypad scans and detects the input of keys and knobs, integrates the power on/off key, and connects AC and
battery indicators.

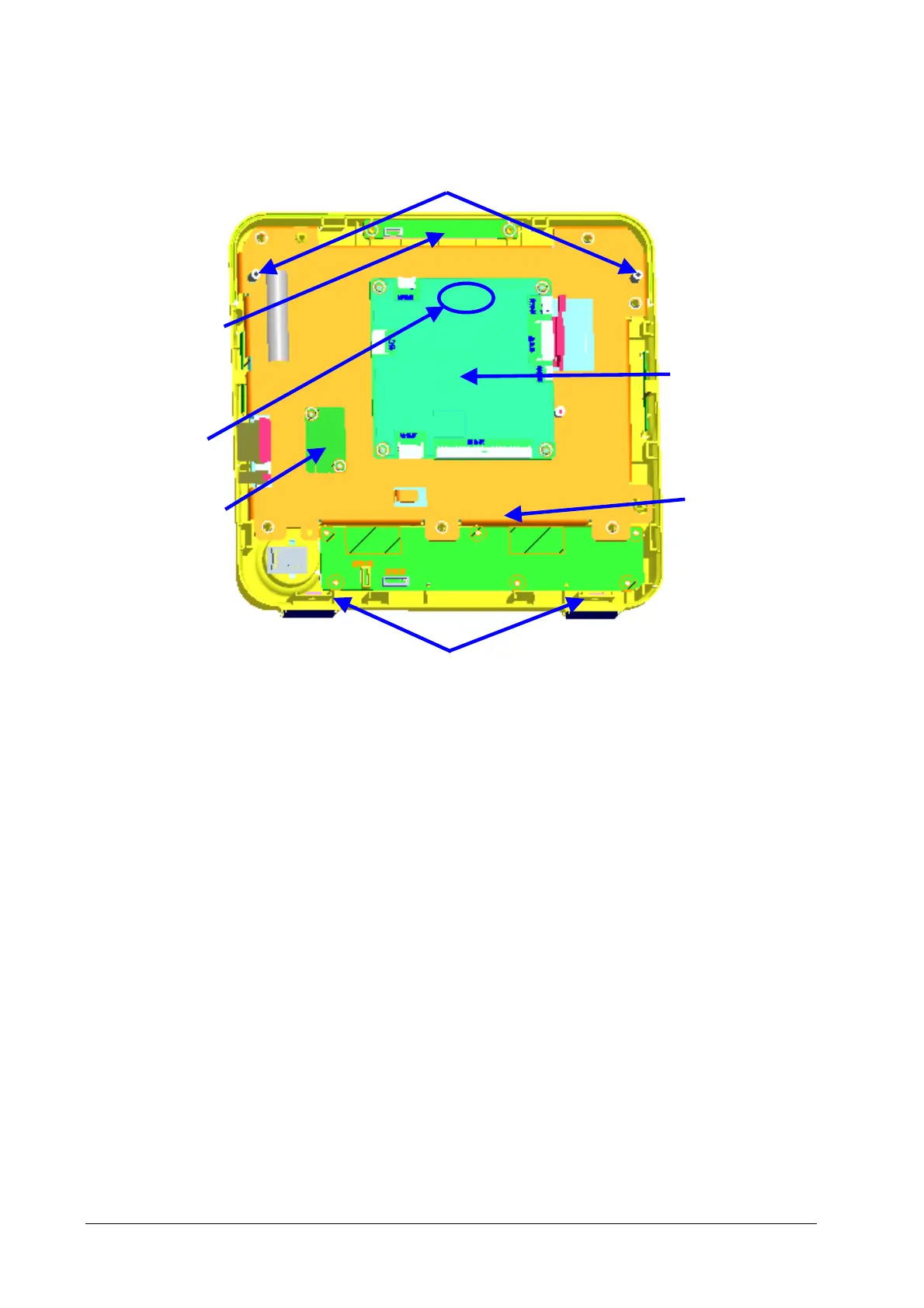

Touchscreen
control board
Main board
Alarm lamp board
Keypad
Lock hatch
Wi-Fi module
Screws fastening the front and rear housing
