8-5
8.2.3 Rear Housing Assembly

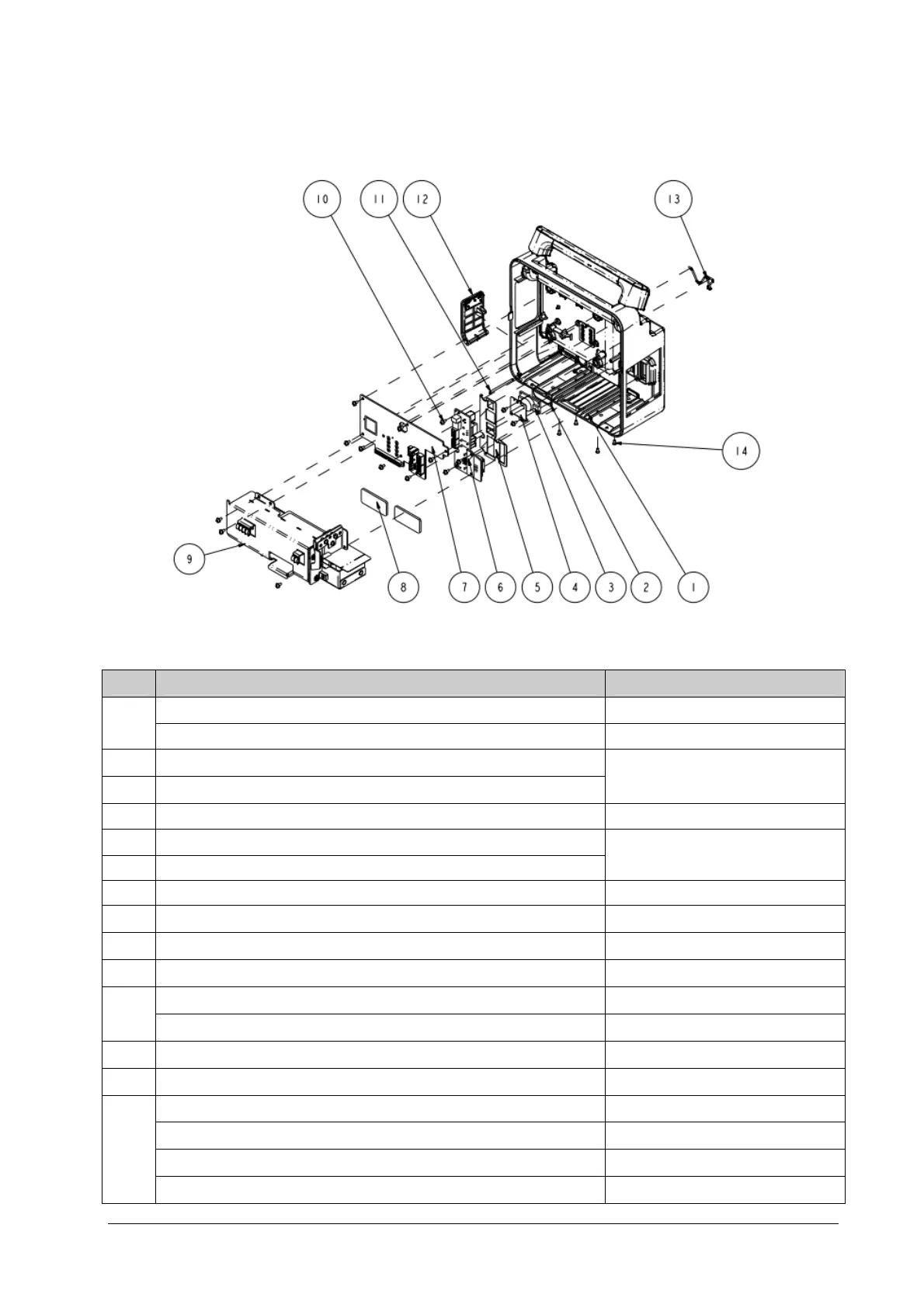

8.2.3.1 Exploded View
8.2.3.2 Parts List
SN Description FRU part number
1 Rear housing assembly (Passport 8) 115-010811-01/115-048886-00
Rear housing assembly (cPM 8) 115-048886-00
2 Speaker pad 801-9261-00010-00
3 Speaker, 2W, 4ohm, 500 Hz
4 Speaker bracket (Passport 8) /
5 I/O gasket 801-9261-00014-00
6 Interface converter kit (Passport 8, USB, no DC_IN)
7 Power management and interface board (full config, USB) 051-001007-01
8 Thermal gel /
9 Main bracket assembly (Passport 8) /
10 Screw, Pan head with washer, Phillips M3×6 /
12 Battery door assembly (Passport 8) 115-010919-00/115-048894-00
Battery door assembly (cPM 8) 115-048894-00
13 AC Inlet Hook 9211-20-87369
14 Screw, pan head, Phillips, M3×6 /
Other
parts
Cable between the interface board and main board 9211-20-87225
Cable between power management board and I/O interface board 009-002235-00
Cable between the power management board and parameter board 009-001989-00
Recorder cables 009-001969-00
