9-48 Structure and Assembly/Disassembly

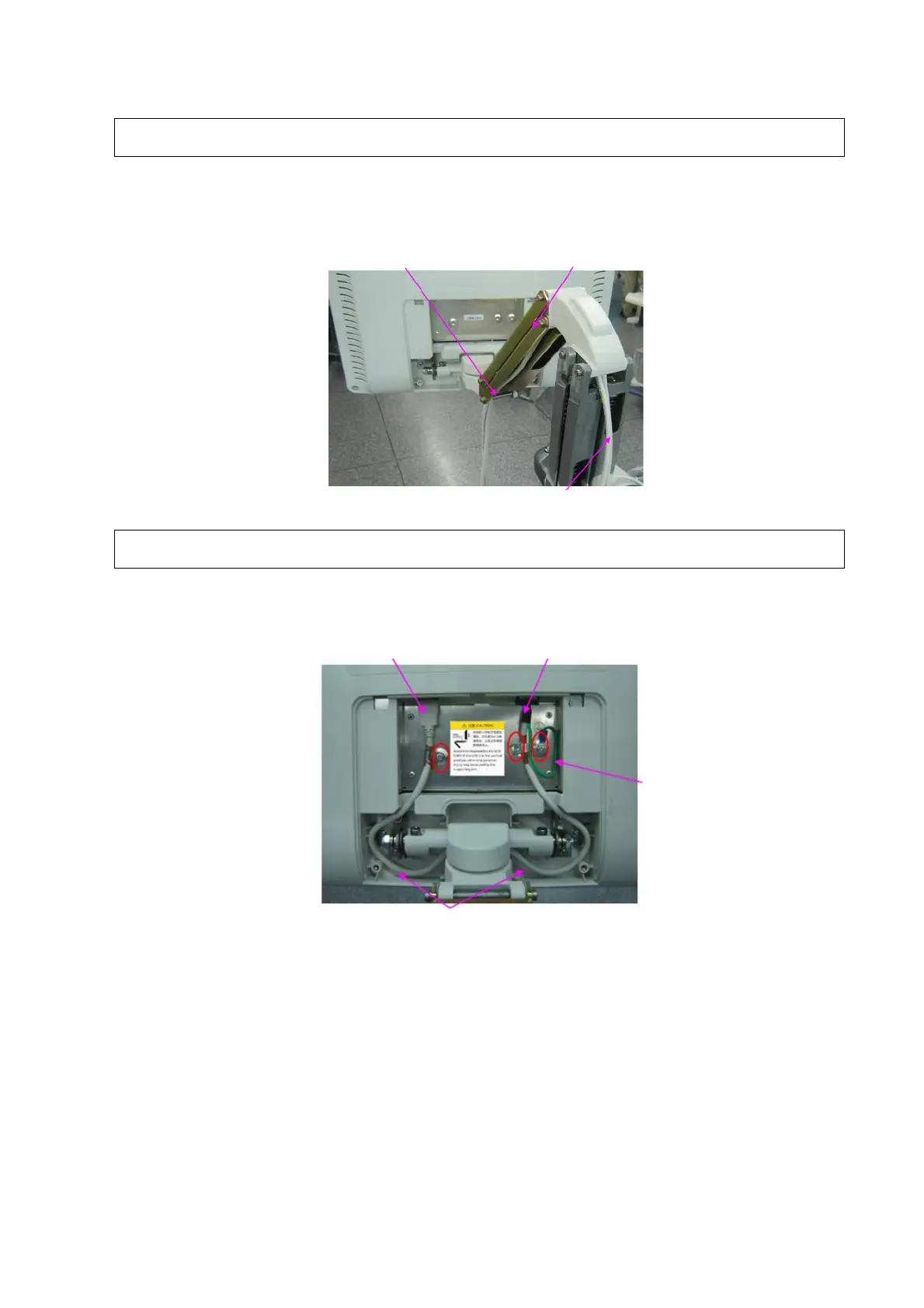

7. Adjust the upper arm in -45 degree direction, along the parallel cable groove, come out two
cables from rotating axis of upper arm (first signal cable, then power line) and guide them into
the top block. Then according to the installing position of cables, tidy them up. Cables must be
in the supporting arm and can’t twist together.
Come out from rotating axis of upper arm upper arm in -45 degree direction
8. As shown in the figure, plug into signal cable and power line of monitor, fix two cable nips in
the middle of shielding copper foil separately, then secure them with 1 M4X8 screw for each.
At last, use 1 M4X8 screw to fix the grounding line.
Close to the side of rear cover, apart from the damp axis
9. Arrange two cables of monitor into the cable groove of connecting base from two sides to the
middle, then use a cable fixing block and 2 M4X12 cross panhead combination screw to fix the
cables in the groove.
Guide the cables gently, side pull, sent one. So as to prevent the surface of cable from
damage.
Guide the cables gently, side pull, sent one. So as to prevent the surface of cable from
damage.
To Next Page
