10-10 Optional Installation/Assembly

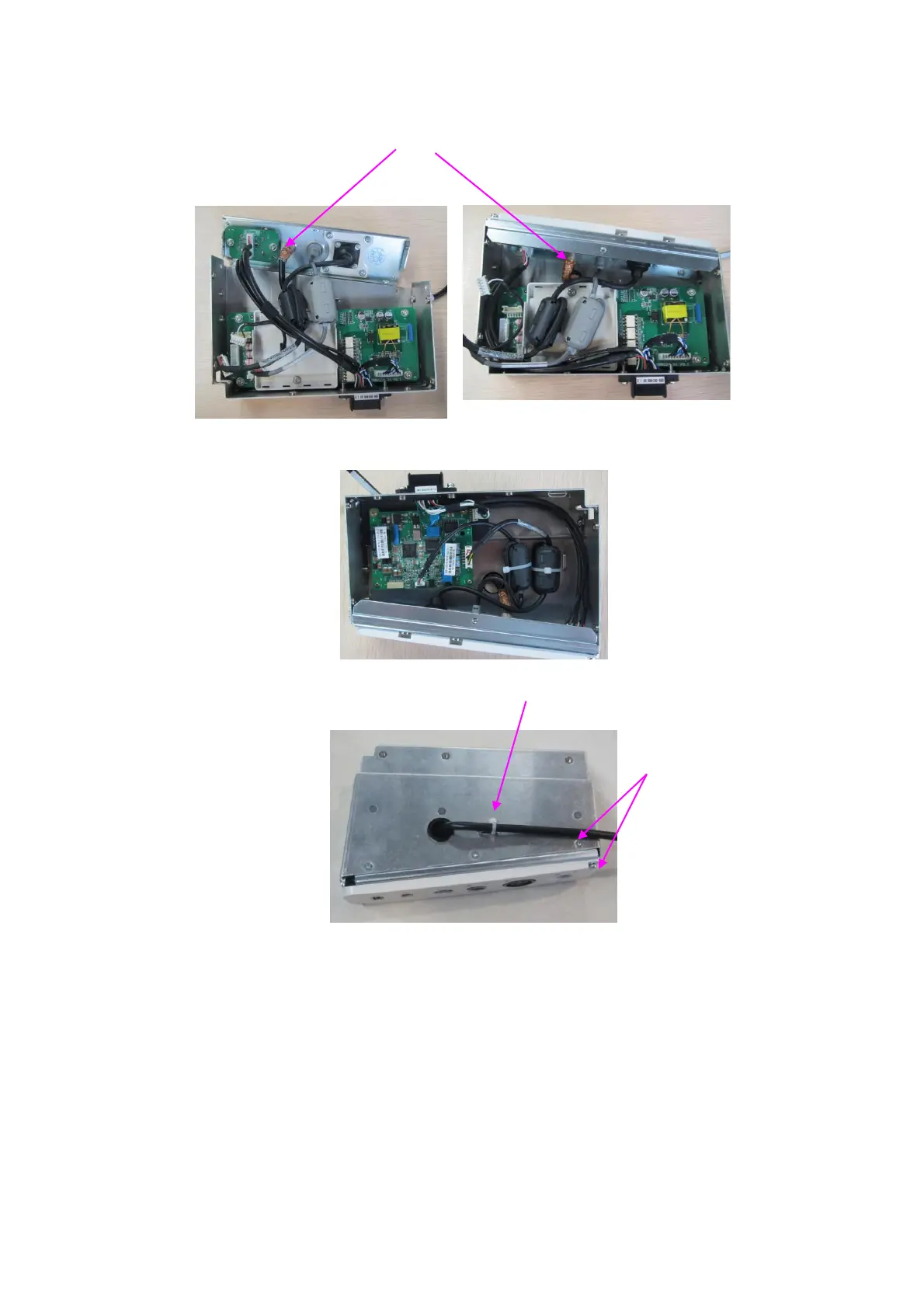

Figure 5C （Win7）
Figure 5D use cable tie 3X100 to tie the pencil probe cable onto the cable-tie bridge
7. As shown in the figure 6A, place the magnetic ring of the ECG cable and PCG cable onto the
magnetic ring securing board, use one cable tie 3X100 to bind the 2 cables and tie to the 2nd
cable tie hole on the depicted fixing board, place the exterior connector end of the ECG cable
beneath the board. Tidy the cables, no cable pinch(stranding) is allowed, and do not tie too
tightly. As shown in the figure 6B, tidy the cables by the assembly side wall: the longer cable of
ECG internal cables should be on the bottom, and then place the ECG and PCG cable,
confirm all outlets and connectors are securely connected.
