Mindray DC-80 User Manual

5-112 Image Optimization
5.15.6 Bull’s Eye Display

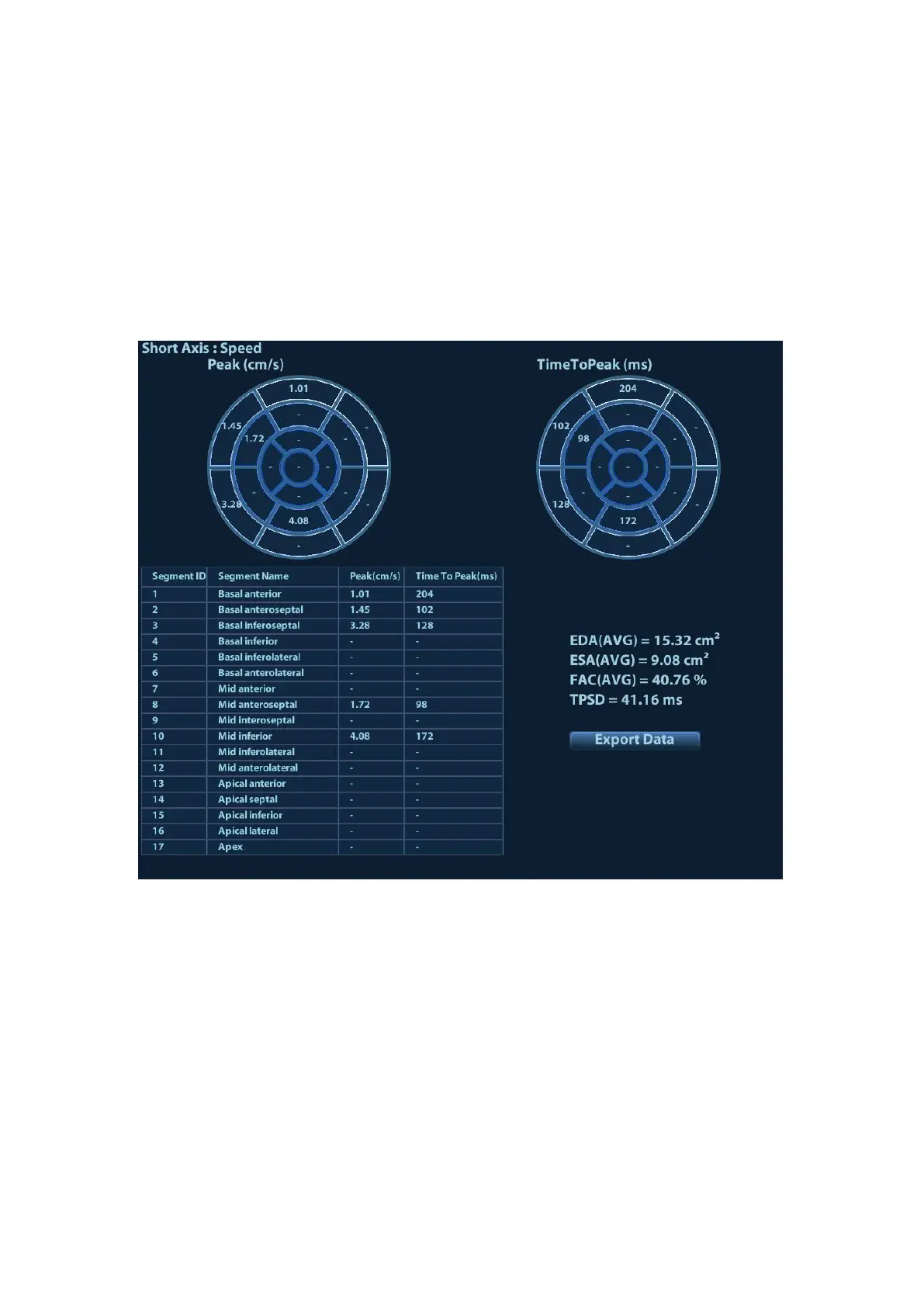

After tracking, the system can display Bull’s Eye graph, for judging the reverse movement or scope
of myocardium.
1. Touch [Bull’s Eye] on the touch screen to turn on the function:
You can acquire:
 Time to peak value and peak value of the 17 segments;
 Display measurement result EDV/ ESV/ EF/ TPSD.
2. Rotate the knob under [Parameter] on the touch screen to see different parameter bull’s eye
graph.
"-" will display in the table to indicate those segments that are not well tracked.
5.15.7 Measurement/ Comment
Under tissue tracking QA mode, only Time measurement is available. For details, please refer to
Operator’s Manual [Advance Volume].
Comments and Body Mark operations are the same as in other modes.
5.15.8 Data Export
The system provides data exporting function, so that you can export calculation result for analysis
(for instance, SPSS analysis).
Touch [Data Export] on the touch screen, to export analyzed data of each segment in .csv format.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
