Barcode Reader E-1
Appendix E Barcode Reader
The product supports reader for logging data as patient ID: 1-D barcode reader (SYMBOL LS2208).
The laser transmitted by the reader is Class 2 laser.
WARNING:
Class 2 laser adopts low power, visible LED. DO NOT
stare into beam because of unknown hazards of
transient radiation provided by class 2 laser.
CAUTION:
Ensure the information acquired by barcode reader is
consistent with the actual information.
There are 2 operation modes:
Hand-held mode: press the trigger to decode.
Hands-free mode: seat the reader in the stand to enter the mode, the reader decodes automatically.
NOTE:
The reader does not support decoding of Multilanguage.
E.1 1-D Barcode Reader

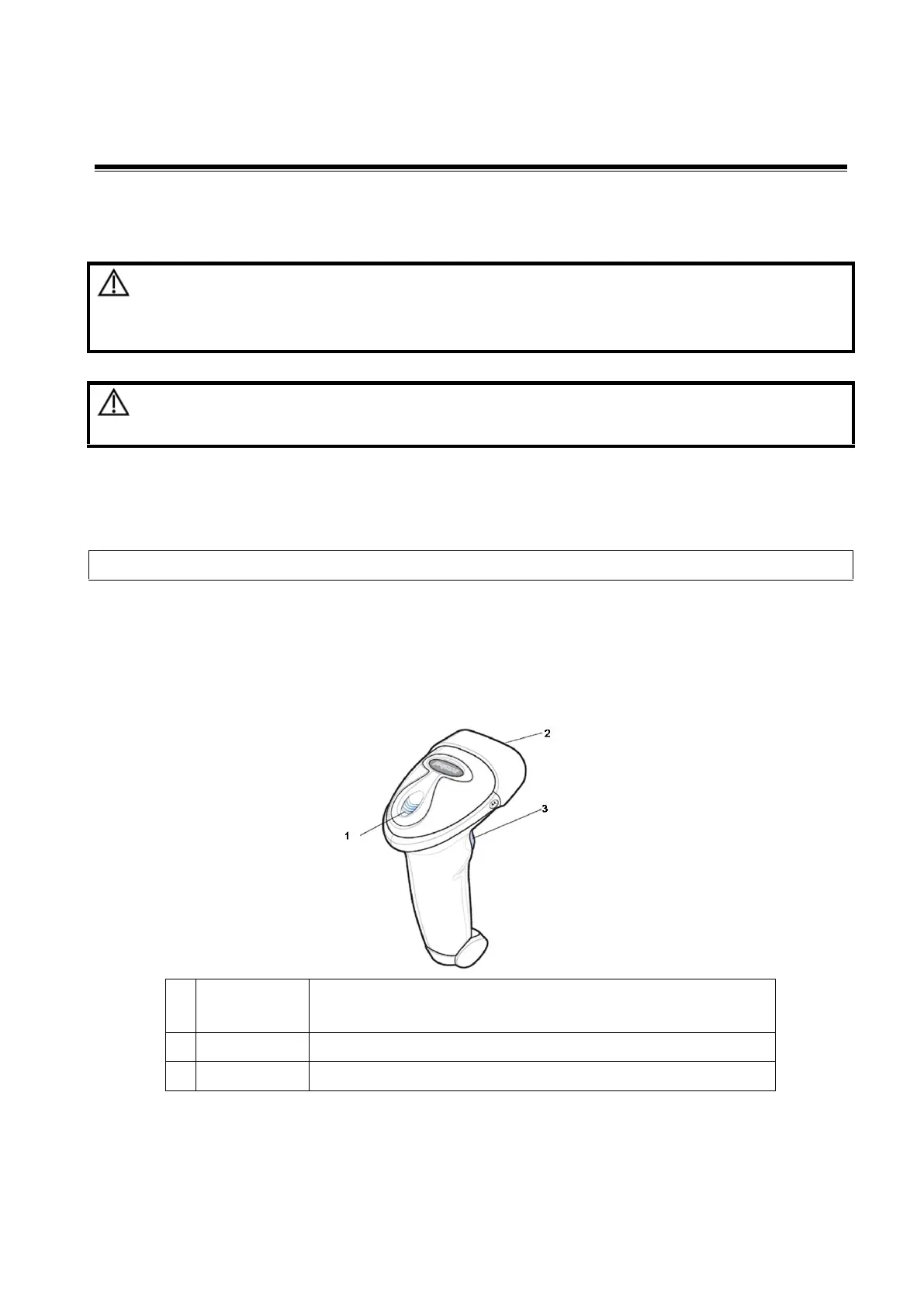

E.1.1 Overview
1.
LED
Green: A barcode was successfully decoded.
Red: A data transmission error or reader malfunction occurred.
2.
Scan window
Scan the barcode.
3.
Trigger
Press to decode
E.1.2 Setting Up the Reader (Take LS2208 as an example)
1. Plug the interface cable modular connector into the cable interface port on the bottom of the reader
handle, and ensure the connector is properly secured.
