Mindray DC-80 User Manual

3-2 System Preparation
3.2 Connecting Power Cord & Protective
Grounding
3.2.1 Connecting Power
 The power system must meet the following requirements:
Voltage:220-240V
Power supply frequency: 50/60Hz
Power consumption: greater than 800VA
 The connection method is described as follows:

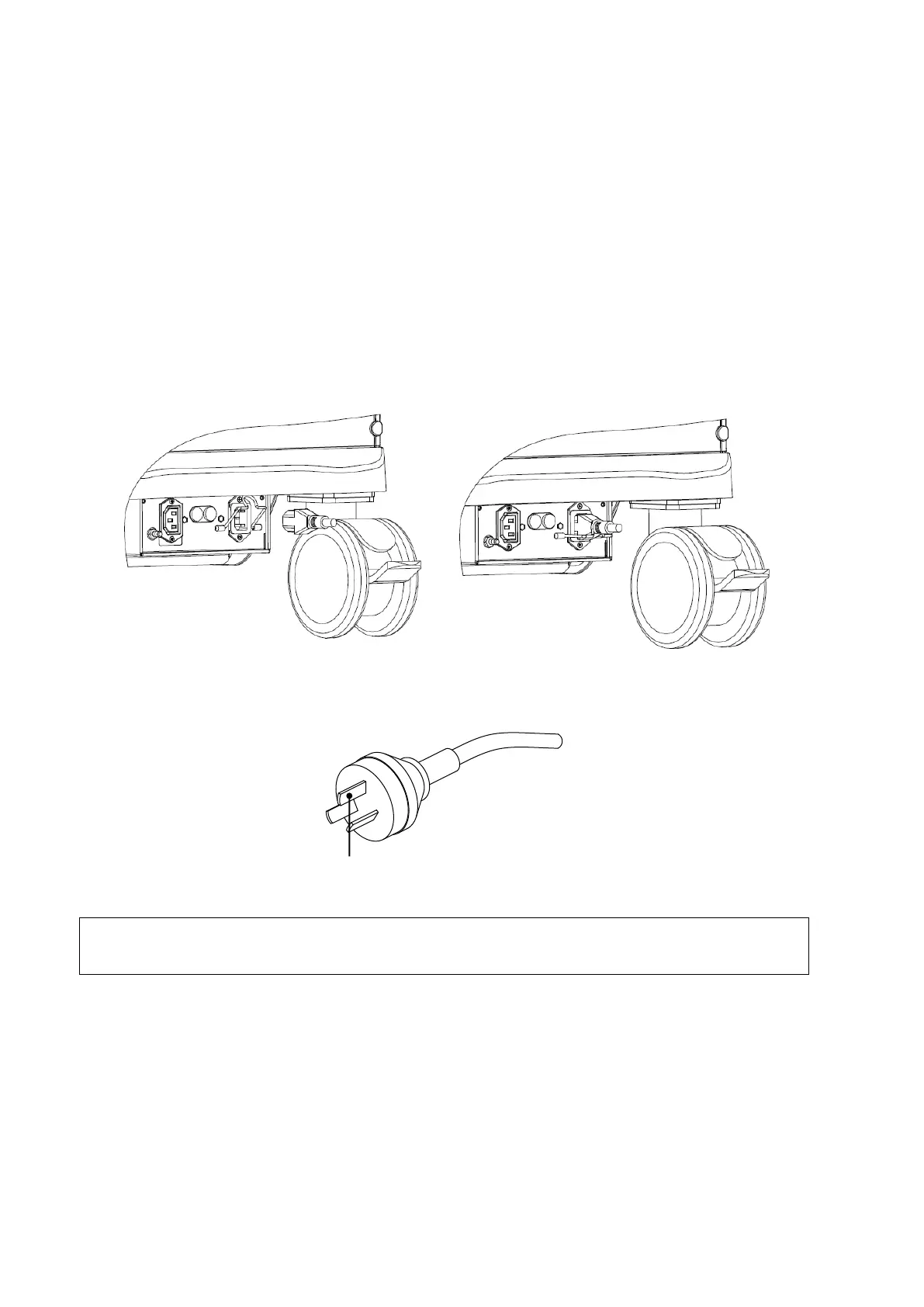

1. Push the retaining clamp upward, and insert the power plug into the receptacle, as shown in
the figure below.
2. Pull the retaining clamp downward to lock the power cord, as shown in the figure below.
3. Plug the other end power plug into an appropriate outlet. The grounding terminal should be
connected with a power grounding cable to ensure that protective grounding works normally.
NOTE:
Make sure to allow sufficient slack in the cable so that the plug will not be pulled out of
the receptacle if the system is moved slightly. If the plug is pulled out accidentally, data
may be lost.
Grounding end

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
