Ultrasound Gel Warmer B-1
Appendix B Ultrasound Gel Warmer
Ultrasound gel warmer is an option of the system, used for heating the ultrasound gel.
B.1 Overview

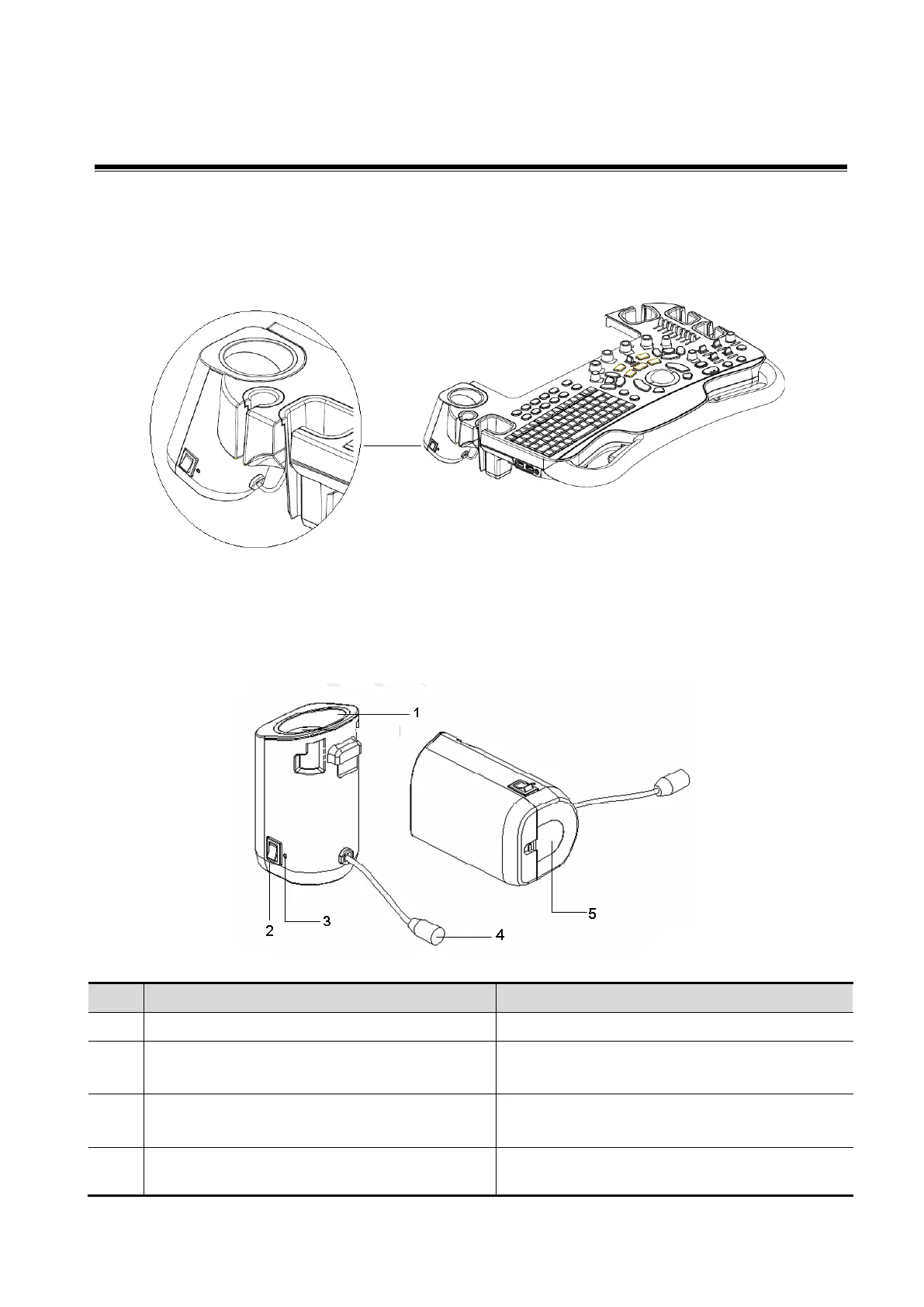

As shown in the figure above, the warmer is installed at left side of the control panel, the position that is
used for placing the ultrasound gel.
To install the warmer, you should remove the ultrasound gel holder first.
B.2 Structure
No.
Name
Function
1.
Ultrasound gel box
Used for placing ultrasound gel.
2.
Warming control switch
Set the gel warmer to the temperature of 37℃
/40℃, or turn off.
3.
Status indicator
Working normally: green.
Failure: blink in orange.
4.
Power cable
Connect to the power socket under the control
panel.
