Mindray DC-80 User Manual

11-2 DICOM/HL7
11.1.2 DICOM Local Preset

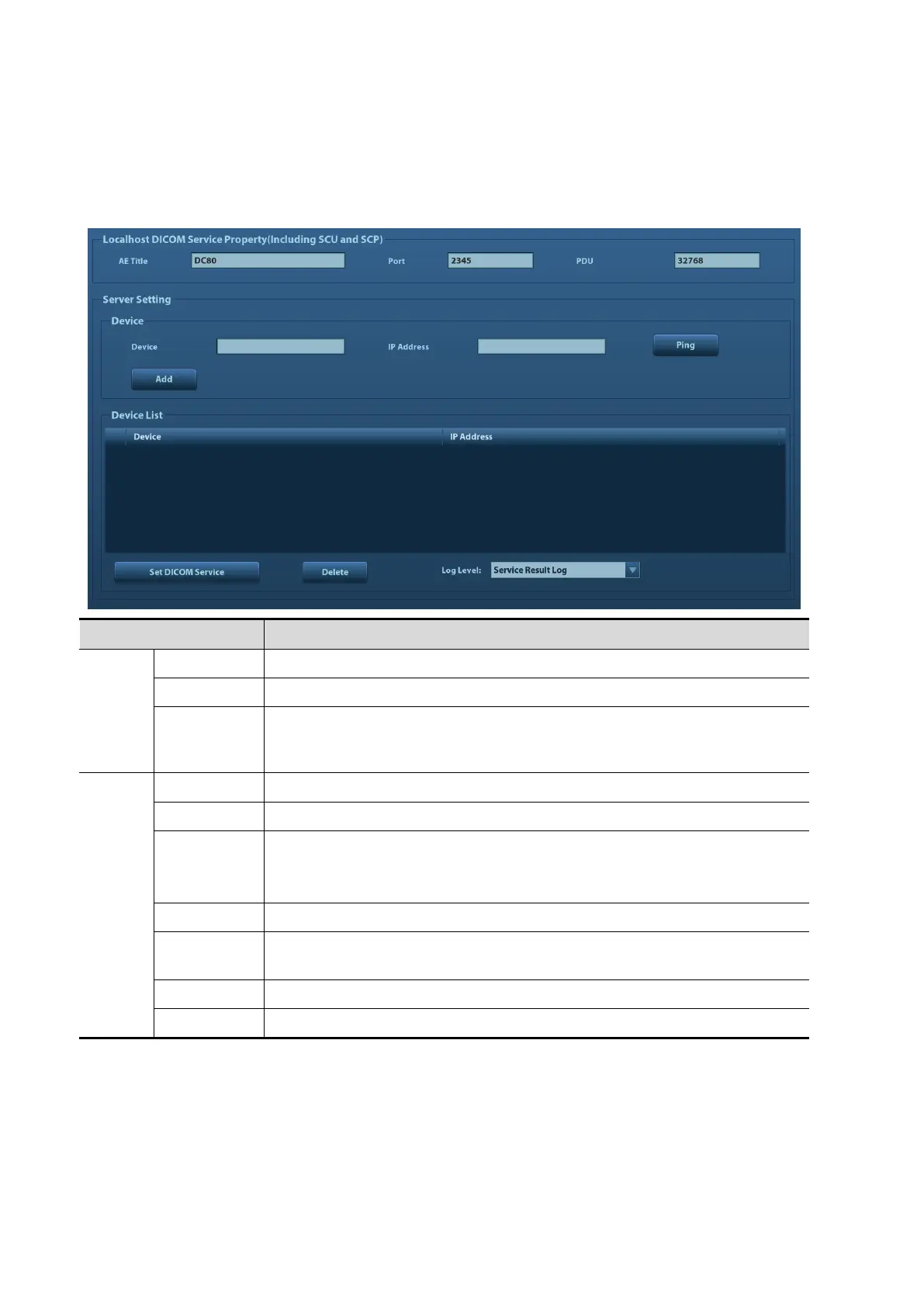

1. Enter the DICOM local preset screen through the path: [Setup]->[DICOM/HL7].
2. Enter AE Title, Port, and PDU according to the actual situation, and then click [Save] to exit the
screen, setting items are introduced in the following.
Name
Description
DICOM
Local
AE Title
Application Entity title.
Port
DICOM communication port.
PDU
Maximum PDU data package size, ranging from 16384 to 65536; if the
value is less than 16384 or greater than 65536, the system automatically
sets it to the value 32768.
Server
Setting
Device
Name of the device supporting DICOM services.
IP Address
IP address of the server.
Ping
You can ping the other machines after you entered the correct IP
address.
Besides, you can select a server in the Device list to ping it.
Device List
Displays the added device.
Set DICOM
Service
Provides server settings of DICOM service, for details, please refer to the
following chapters.
Add
Click to add server (s) to the Device List.
Delete
Click to delete the selected server (s) in the device list.
 Server setting procedure:
1. Enter the server device name and IP address; click [Ping] to check the connection.
2. Click [Add] to add the server to the device list, and its name and address are displayed in the
list.
Tips:
AE Title should be the same with the SCU AE Title preset in the server (PACS/RIS/HIS), for
example, if the AE Title of the server preset in the storage server is Storage, and the AE Title of the

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
