Mindray DC-80 User Manual

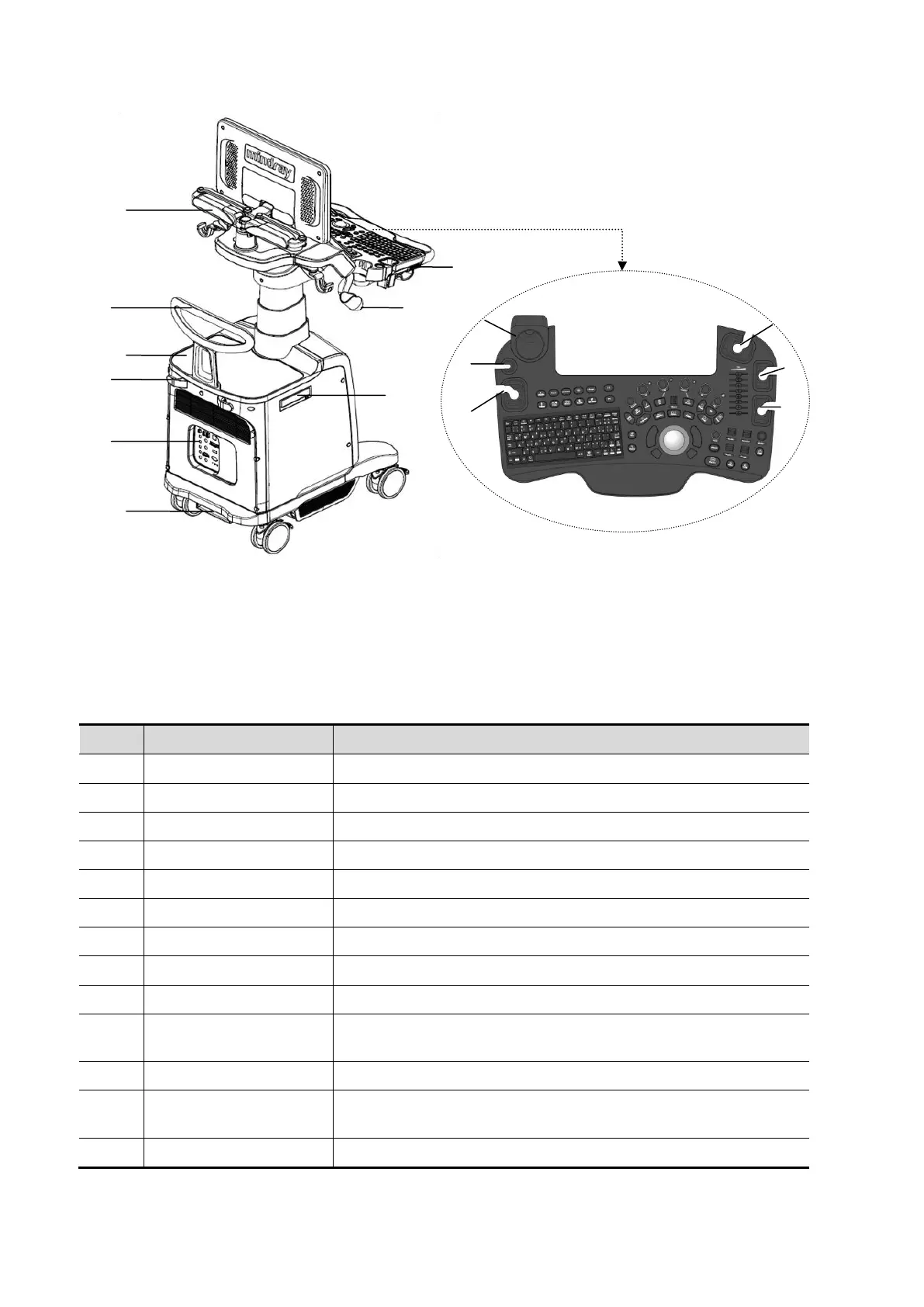

2-10 System Overview
No.
Name
Function
1.
Monitor
Displays the images and parameters during scanning.
2.
Touch screen panel
Operator-system interface or control.
3.
Main control panel
Operator-system interface or control.
4.
Storage compartment
Used for placing small objects.
5.
Physio panel
Used for connecting the ECG leads external ECG device and etc.
6.
Probe port
Sockets connecting transducers and the main unit.
7.
Caster
Used for securing or moving the system.
8.
Probe cable hook
Used for fixing the probe cable.
9.
Compartment
Used for placing B/W video printer.
10.
Monitor support arm
Supports the monitor, for adjusting the height and position of the
monitor.
11.
Rear handle
Used for pushing and moving the system.
12.
Color video printer
placing table
Used for placing the color video printer.
13.
Hanger
/
10
11
13
12
14
15
16
17
18
19
20
21
21
22
22

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
