Mindray DC-80 User Manual

13-36 Probes and Biopsy
 NGB-027

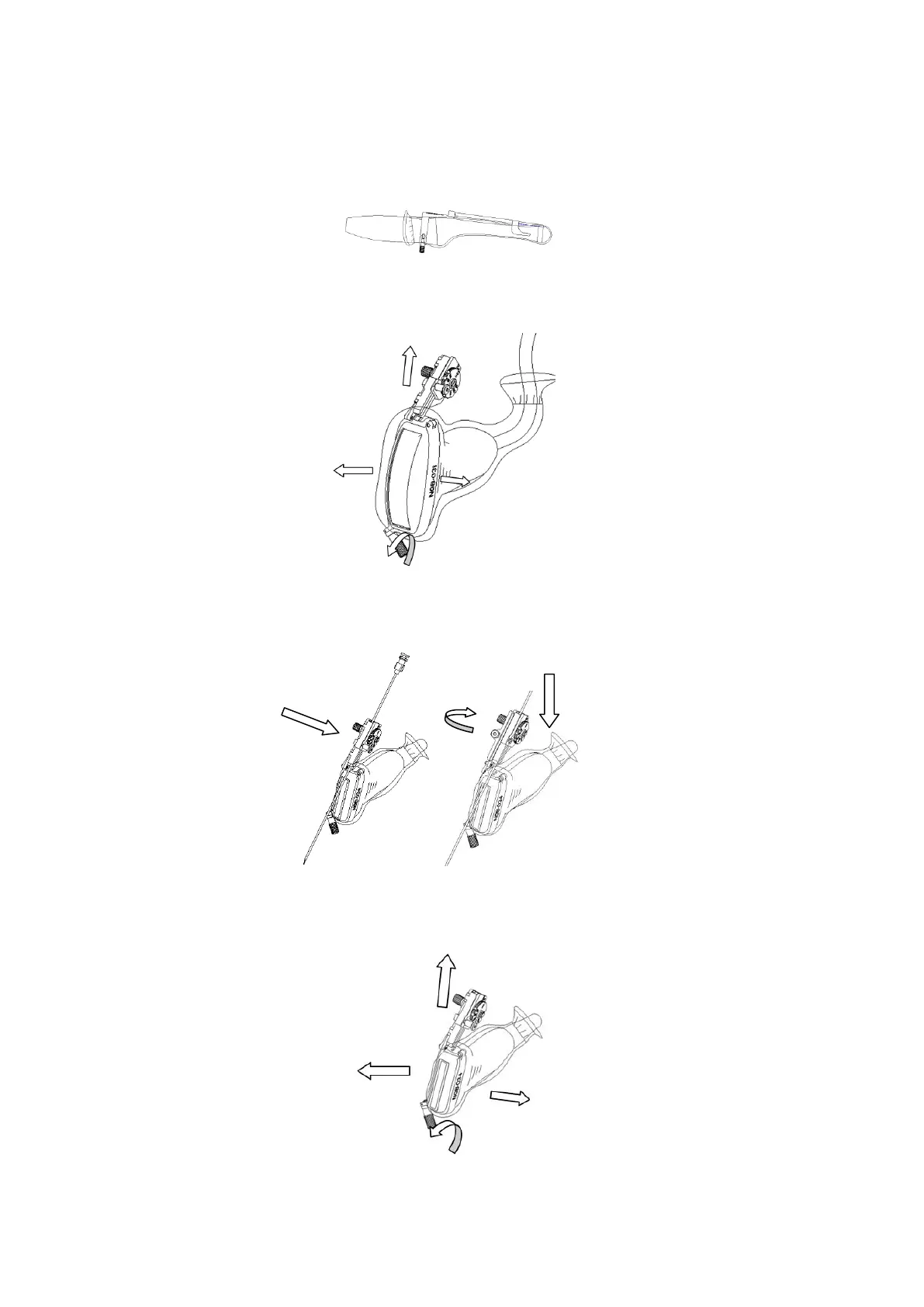

Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the clamp
(arrow’s direction).Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp, the
locating hole and the front clamp become loose.
 NGB-031
Unscrew the pinch nut to separate the needle-guided bracket from the probe. Release the needle-
guided bracket from the probe.
 NGB-034
 Separation of the needle in the operation
1. Pull the lock pin out until the V-shaped cover can be turned and opened up.
2. Turn over the V-shaped cover to expose the needle. Remove the probe and bracket.
 Removing the needle-guided bracket
Screw the pinch nut to release the needle-guided bracket.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
