Mindray DC-80 User Manual

B-4 Ultrasound Gel Warmer

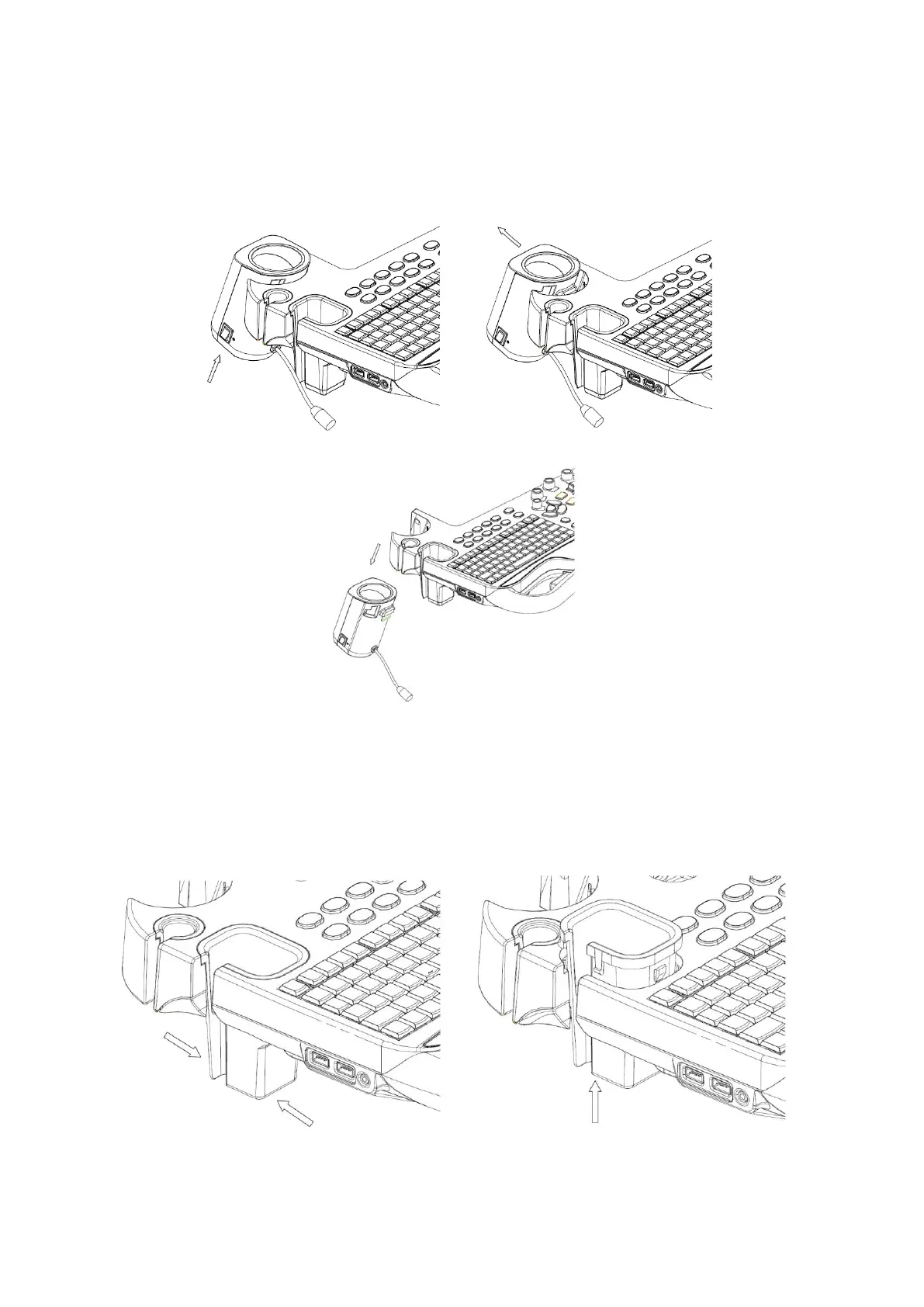

B.6 Remove the Warmer
1. Pull out the power cable from the control panel jack.
2. Push the warmer as per the arrow direction.
3. Remove the warmer as shown in the following figure.
B.7 Mount/Remove Probe Holder
To install the gel warmer, you have to remove the probe holder first.
B.7.1 Remove the Holder
Push towards the arrow direction on the bottom and lift upwards to remove the holder.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
