Mindray DC-80 User Manual

2-16 System Overview

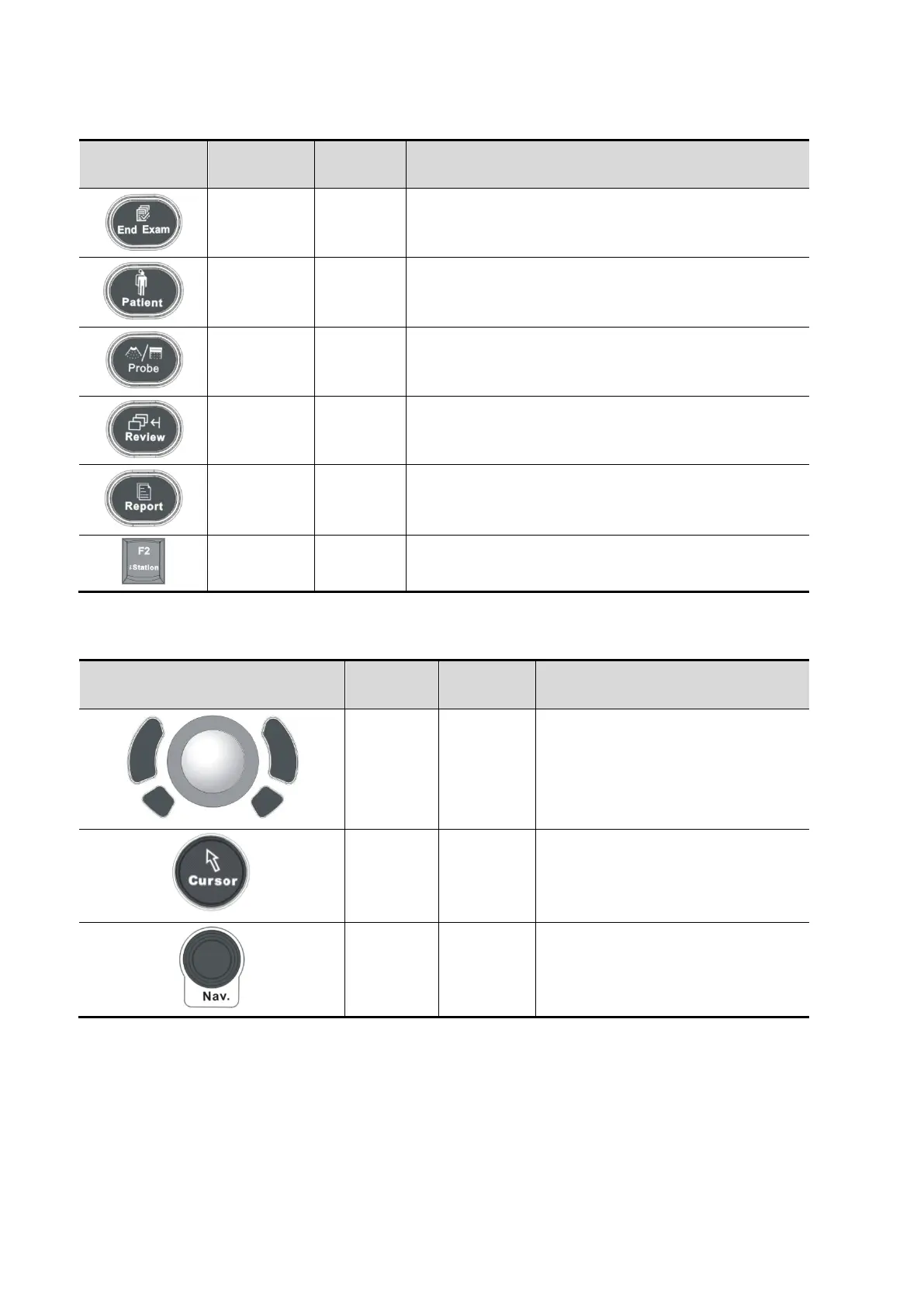

Exam Operation
Symbol
Name
Control
Type
Function
End Exam
Functional
button
End the current exam.
Patient
Information
Functional
button
Enter/ exit Patient Info screen.
Probe/Exam
switch
Functional
button
Switch probe and exam mode.
Review
Functional
button
Enter/ exit the Review screen.
Report
Functional
button
Open/ close the exam report.
/
Functional
button
Enter/ exit the Patient Info system.
Cursor Operation
Symbol
Name
Control
Type
Function
/
Trackball
Confirm
key
Move the trackball to change the
cursor position.
Select functions. The left/right
kidney shaped key is the <Set>
key.
Cursor
Functional
button
Show/ hide the cursor.
Navigation
Pressable
knobs
Multifunctional knob

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
