Mindray DC-80 User Manual

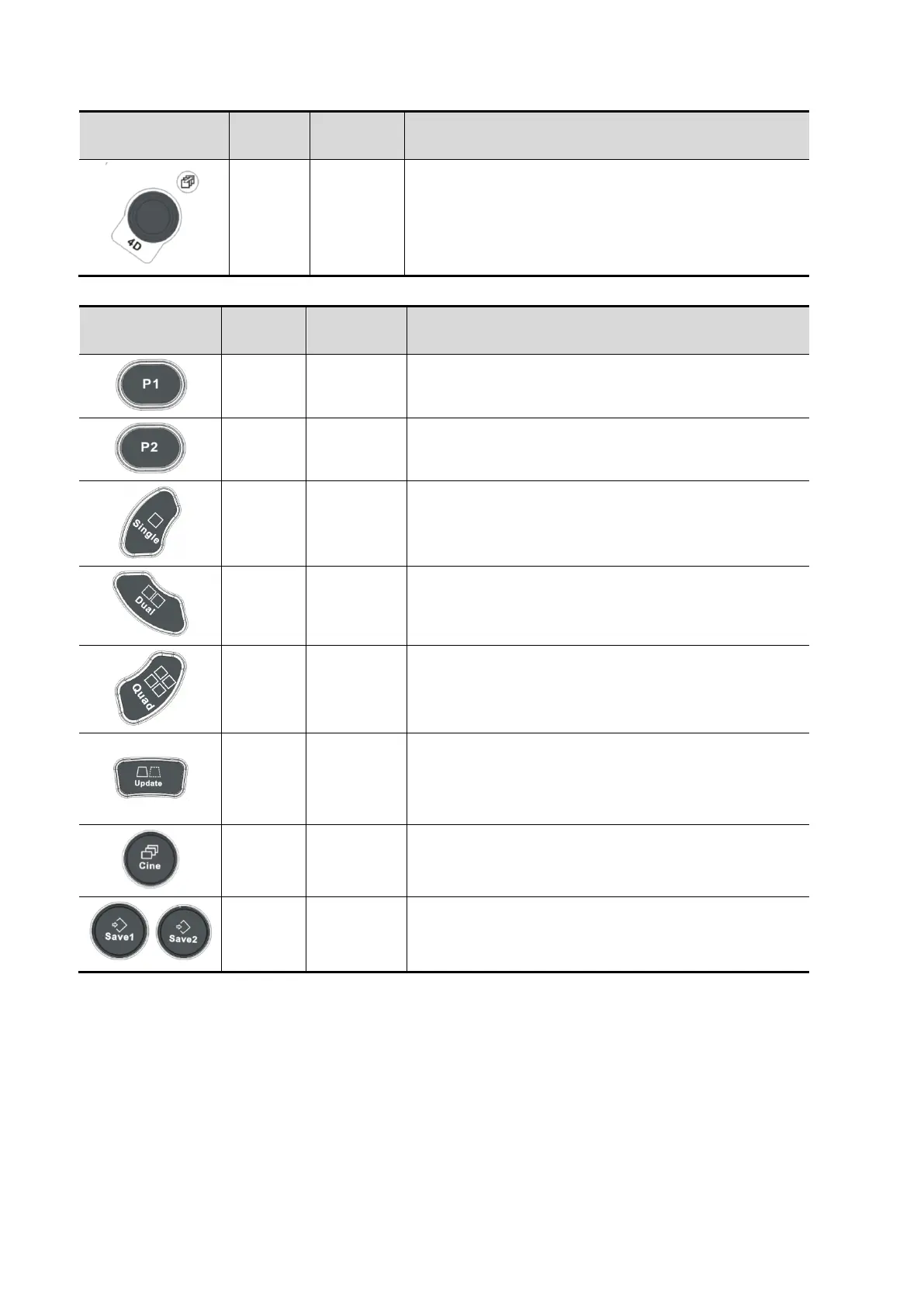

2-18 System Overview
Symbol
Name
Control
Type
Function
/
Pressable
knobs
Press to enter 4D function; rotate to make the 3D
image rotation.
Symbol
Name
Control
Type
Function
/
Undefined
Button
Undefined Button, set by the user in preset.
/
Undefined
Button
Undefined Button, set by the user in preset.
/
Functional
button
Enter single window in multiple window mode.
/
Functional
button
Enter Dual mode in Non-Dual mode;
Switch between the two display windows in Dual
mode.
/
Functional
button
Enter Quad mode in Non-Quad mode;
Press to switch among the display windows in Quad
mode.
/
Functional
button
Switching key: Press to change the currently active
window.
Start/ stop image acquisition in iScape or 3D/4D
mode.
Cine
Review
Functional
button
Enter/ exit the Cine Review status.
/
Save 1/
Save 2
Functional
button
Save images in a way as preset.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
