Mindray DC-80 User Manual

System Overview 2-23

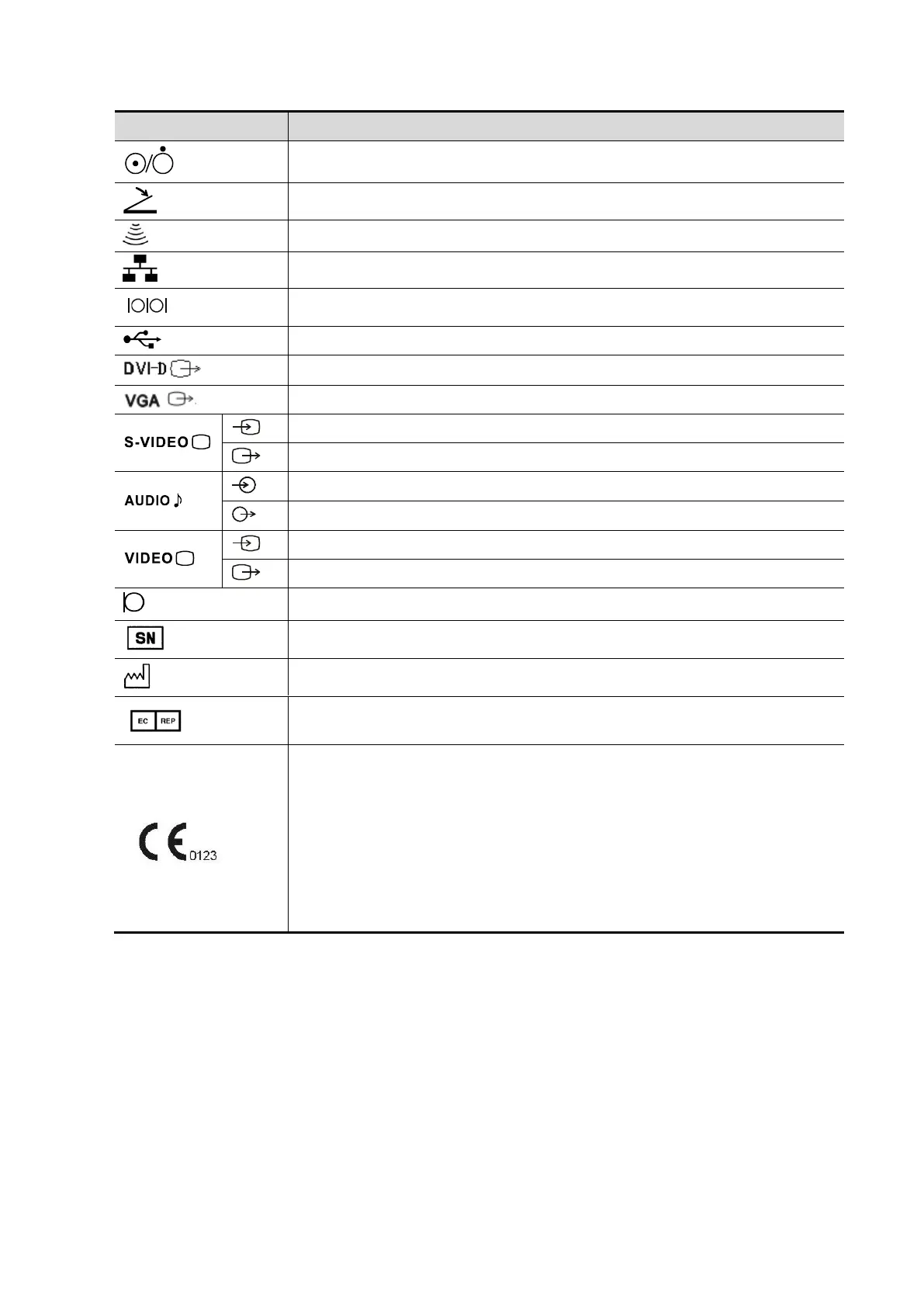

Symbol
Description
Power button
Footswitch
Transducer sockets
Network port
Serial port
USB port
Used for DVI-D signal output.
Used for VGA input.
Reserved, used for separate video input
Reserved, used for separate video output
Reserved, used for stereo audio input.
Reserved, used for stereo audio output.
Reserved, used for composite video input
Reserved, used for composite video output
Microphone input jack
Product serial number
Manufacture date
Authorized representative in the European Community
This product is provided with a CE marking in accordance with the regulations
stated in Council Directive 93 / 42 / EEC concerning Medical Devices. The
number adjacent to the CE marking (0123) is the number of the EU-notified
body certified for meeting the requirements of the Directive.
The radio device used in this product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC (Radio
Equipment and Telecommunications Terminal Equipment Directive). The
product is in compliance with ETSI EN 300 328 and ETSI EN 301 489.
NOTE: The product complies with the Council Directive 2011/65/EU.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
