Mindray DC-80 User Manual

System Preparation 3-19
 Comment area
 Body mark area
3.7.2 Basic Operations of Dialogue Box

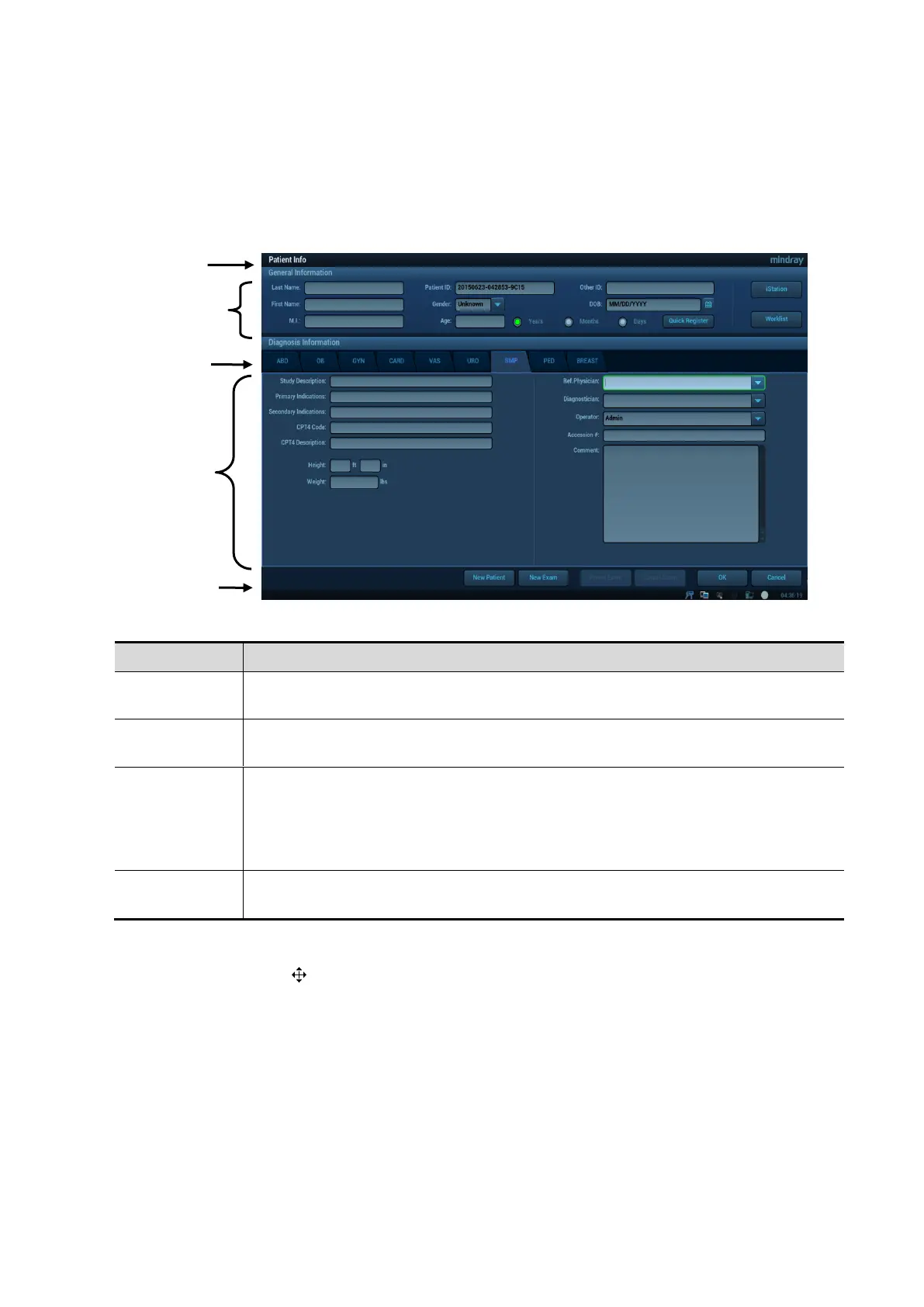

A dialogue box screen consists of title, page tabs, contents and buttons, as shown in the following
figure:
Composition
Description
Title Bar
The title bar is used to give a description for the content and function of the
screen.
Page Tab
For some screens, contents are distributed into several pages. Use the <Set> key to
open/close the available pages.
Contents
 Radio box: click to select the item.
 Check box: click to check or uncheck the item.
 Entry box: enter characters manually via the keyboard.
 Drop-down list box: click ▼ to show the list and select an item.
Functional
buttons
When the operation of a screen is completed, click the [OK] or [Cancel] button to
save or cancel the operation, and close the screen.
 To reposition a dialogue box:
1. Roll the trackball to move the cursor onto the title bar of the dialogue box. At this time the
cursor becomes a ; press the <Set> key.
2. Roll the trackball and posit the rectangular graphic to the new desired location.
3. Release the <Set> key, and the dialogue box is moved to the desired position.
Page Tab
Contents
Controls
Title Bar
Contents

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
