Mindray DC-80 User Manual

4-8 Exam Preparation
3. Guarantee the data source: after select the service type, select the worklist server from the
corresponding server (DICOM and HL7 server).

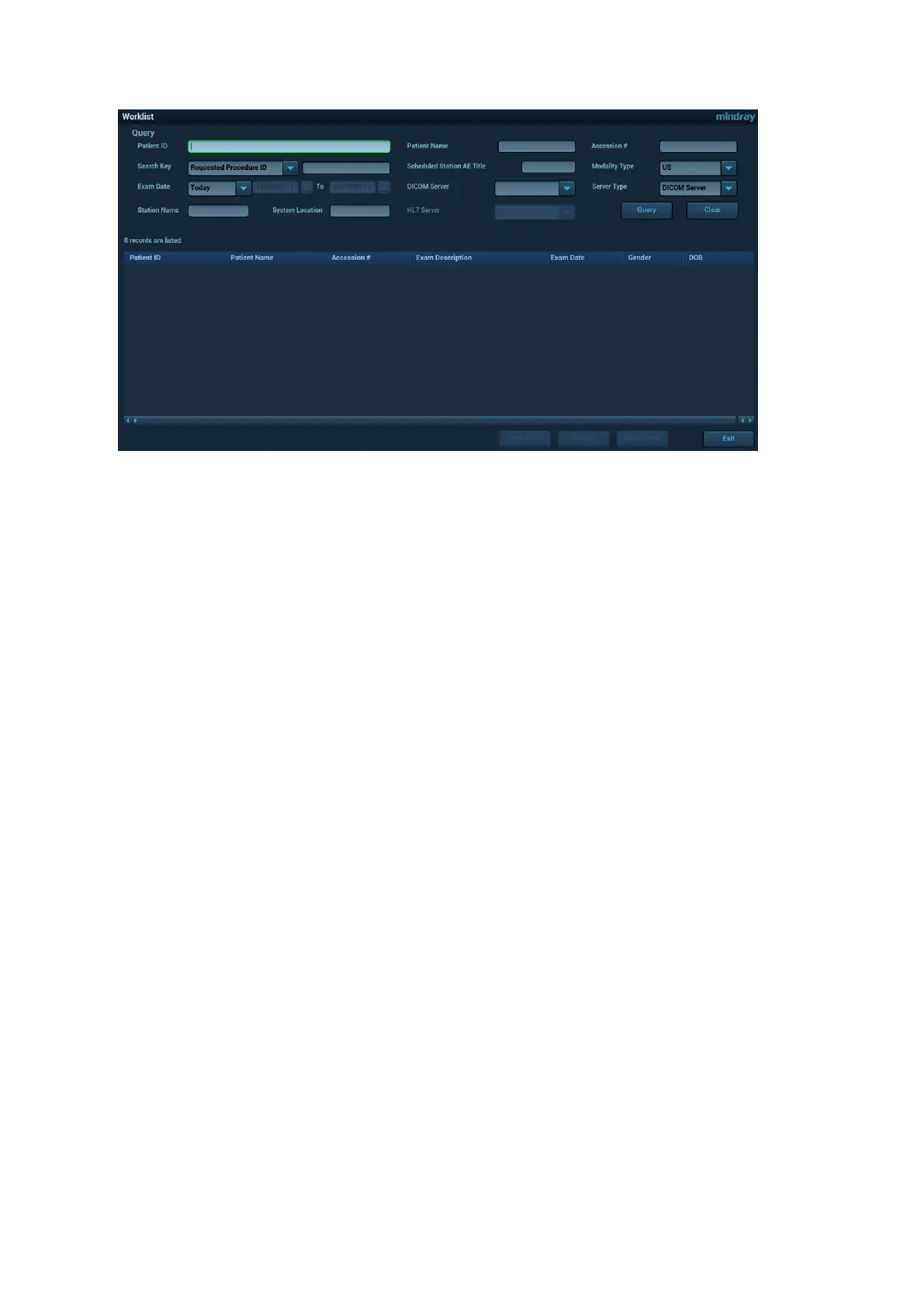

4. Input the searching condition:
a) Input the searching condition:
Select ―DICOM server‖. You can search via patient ID, accession #, key words, AE title,
worklist server or exam date.
Select HL7 server. Search via patient ID, patient name.
b) Click [Query].The scheduled patients, which meet the criteria, are displayed in the lower
part of the screen.
 After the first query, you can perform the second query based on the preview results.The
scheduled patients in the list will update in real time.
 Enter patient ID, patient name, accession # and exam date, the system affords the result
in real-time.
 Or select the keyword type, enter the keywords and then click [Query] to search.
 To reset the criteria, click [Clear] button.
5. Select the desired patient from the list.
 Click [Start Exam], the patient information is imported into the system and then an exam is
started.
 Click [Transfer], the patient information is imported into the Patient Info screen. Edit the
patient information in the Patient Info screen, and click [OK] to start a new exam.
 Click [Show Detail] to see details of patient data.
6. Click [Exit] to exit the WorkList.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
