Mindray DP-50 PT - Page 208

12-20 Probes and Biopsy
No
Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2>
Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle
<3>
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles
<4>
Groove and tab of the
needle-guided
bracket
Respectively matched with the tab and groove of the
transducer
<5>
Specification of
guiding block（13G）
Matched with the corresponding biopsy needle（13G）
<6>
Needle guide hole
Used for installing the biopsy needle
<7>
Specification of angle
block（60°）
Corresponding to the size of the biopsy angle（60°）

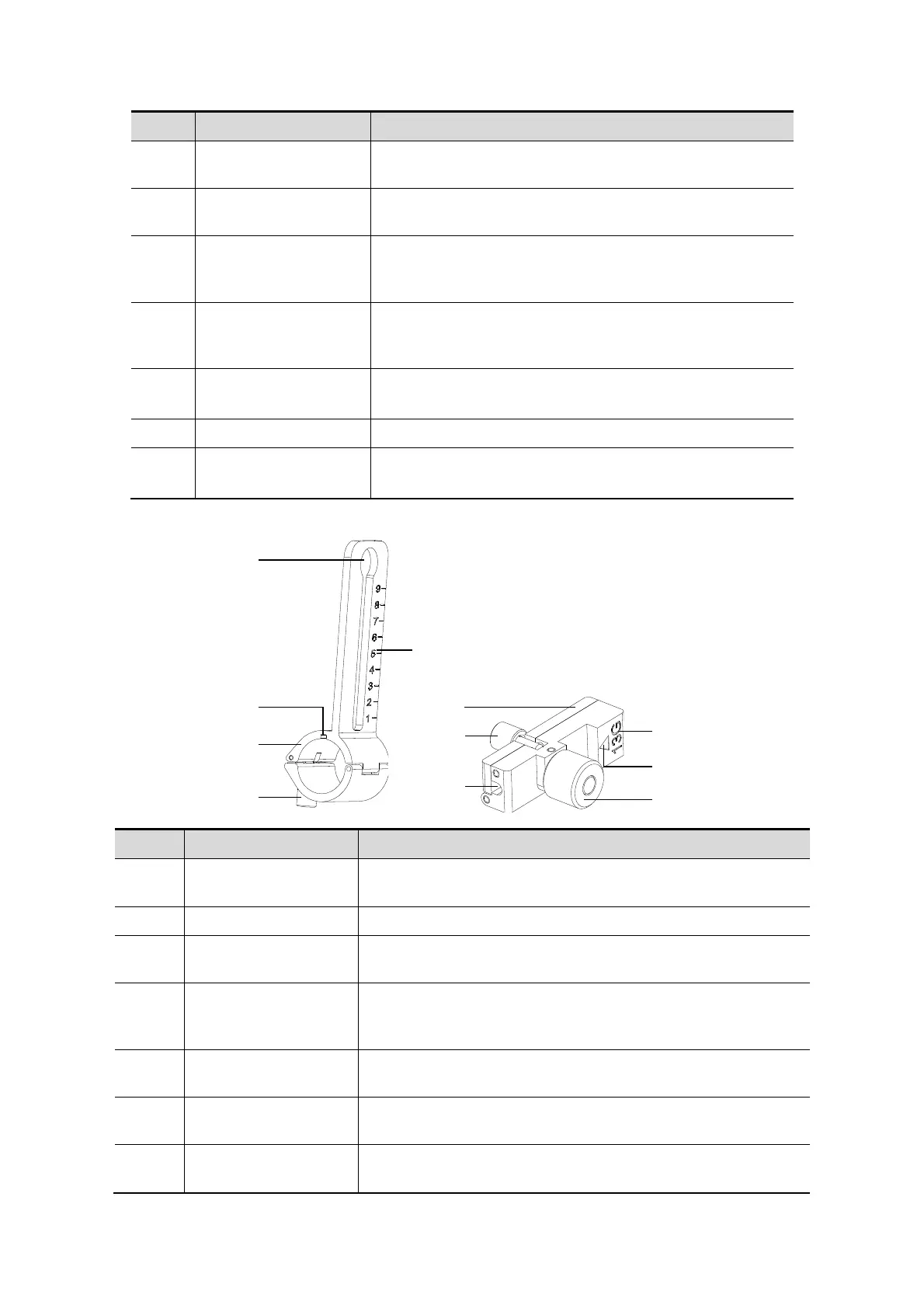

 NGB-009 (Metal/needle detachable)
5
1
2
3
4
10
6
7
8
9
11
No.
Name
Description
1
Hole for installing
guiding block
Used for installing the knob of fixing needle-guided bracket
2
Groove
Match with the tab on the transducer
3
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
4
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the transducer
5
Needle distance
scales
Indicate distance between needle and the transducer head
surface
6
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different needles
7
Knob of fixing the
needle
Used for fixing the needle
