Mindray DP-50 PT - Page 209

Probes and Biopsy 12-21
No.
Name
Description
8
Guiding hole of the
needle
Used for installing the biopsy needle
9
Specification of
guiding block
Matched with the corresponding biopsy needle
10
Mark of indicating
scales
Indicating needle distance scales
11
Knob of fixing the
guiding block
Used for fixing the guiding block

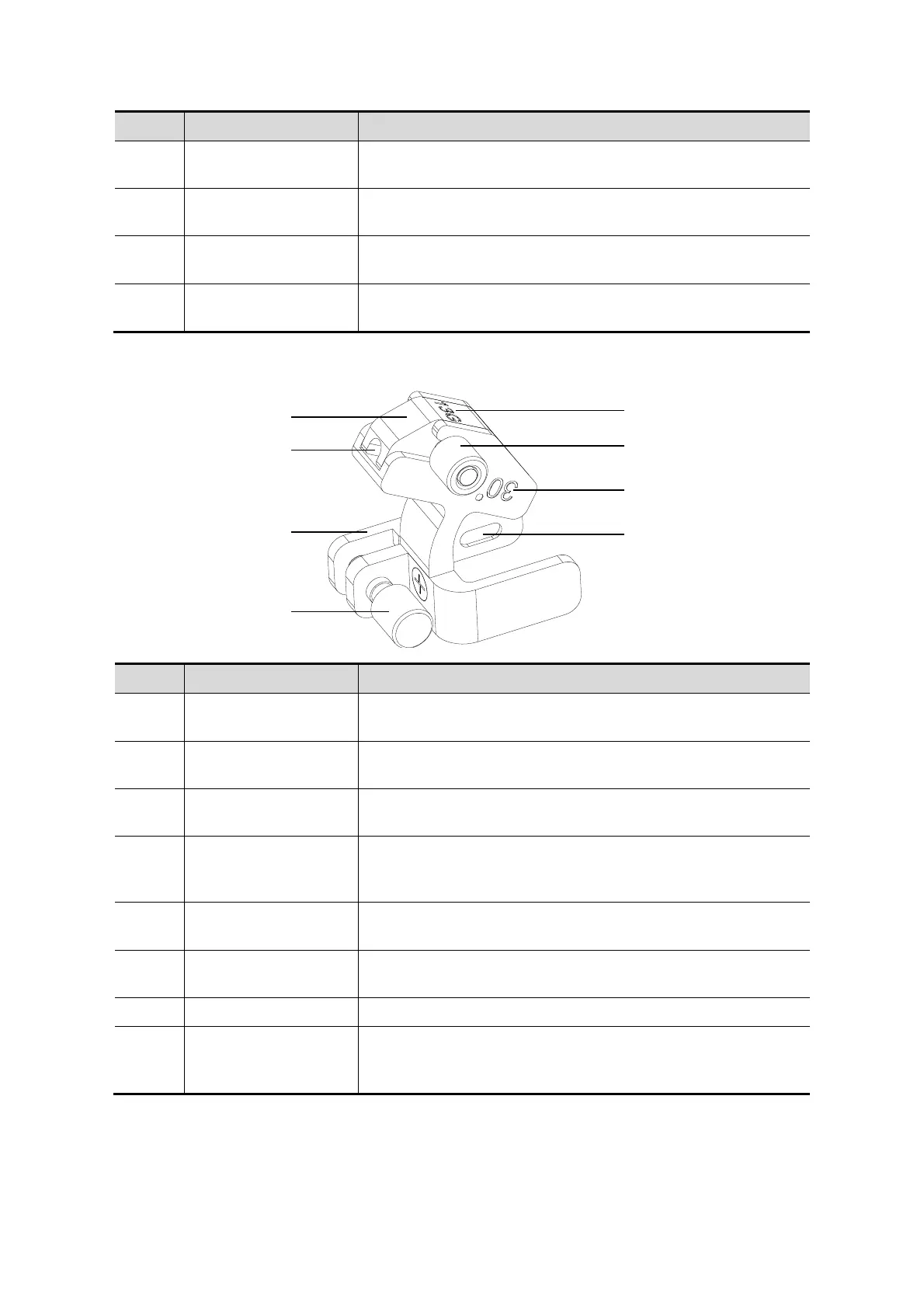

 NGB-010 (Metal/needle detachable)
5
1
2
3
4
6
7
8
No.
Name
Description
1
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
2
Guiding hole of the
biopsy needle
Used for installing the biopsy needle
3
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
4
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the transducer
5
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G)
6
Knob of fixing the
guiding block
Used for fixing the guiding block
7
Needle guide angle
The needle guide angle of this needle-guided bracket
8
Grooves of the
needle-guided
bracket
Matched with the tabs of the transducer
