Service Manual Combics
Version with the junction box (5)
Part no. 57004-428-01

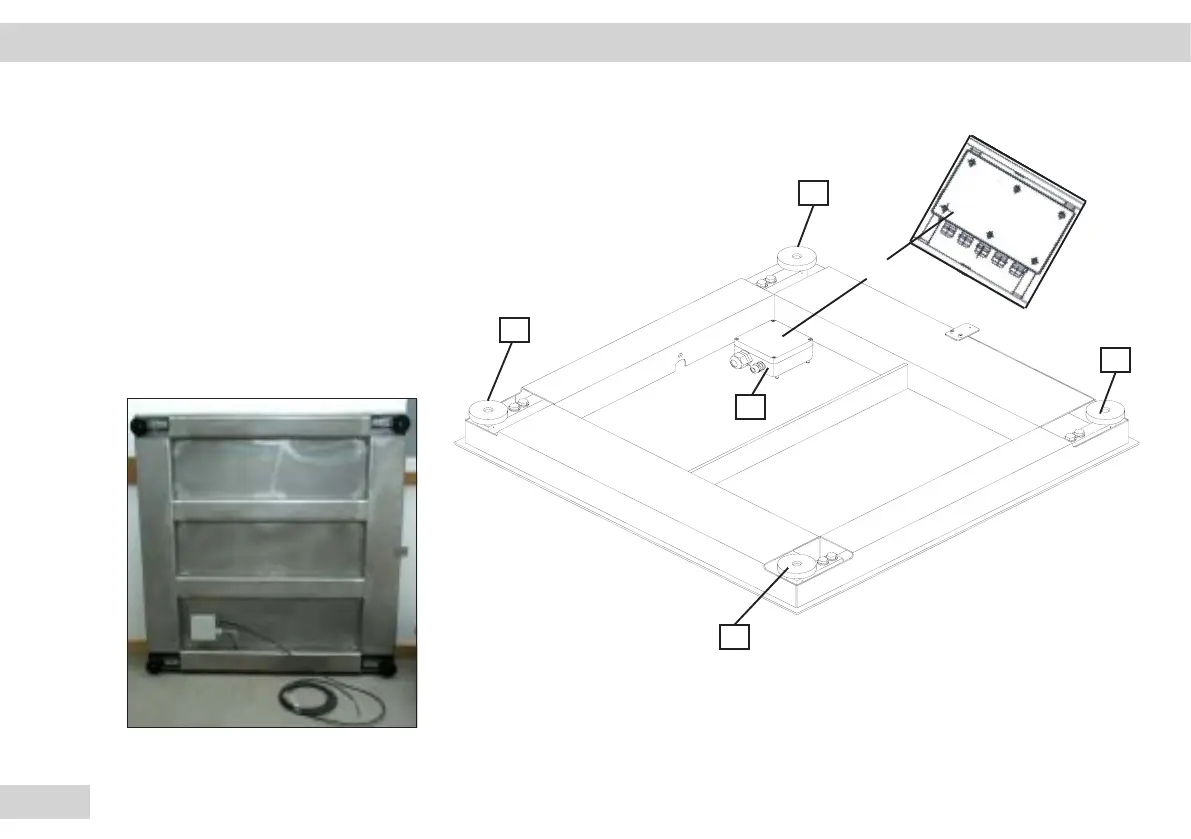

The illustration on the left shows
GF frame 650x500
1. Load cell 1
2. Load cell 2
3. Load cell 3
4. Load cell 4
5. Junction box
Junction Box 1
3
2
4
5
1
or
Interface Description
