Service Manual Combics
Color Coding

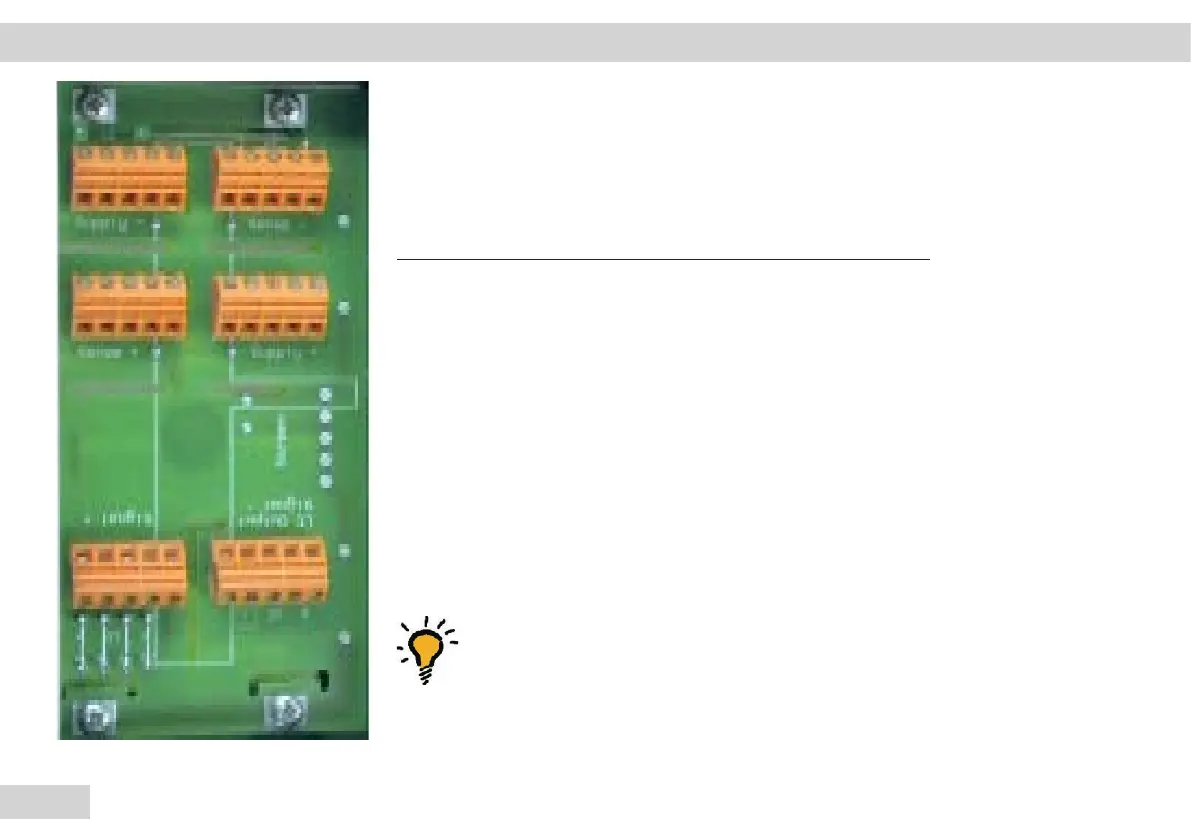

Connecting cable 5.1 from the junction box (terminals) to the A/D converter/indica-
tor.
See page 33 for the colors of the wires; the casing is gray and black.
Function: Terminal:
Shield *
BBR_POS (Bridge supply voltage +) Supply +
BR_NEG (Bridge supply voltage -) Supply -
SENSE_POS (Sense +) Sense +
SENSE_NEG (Sense -) Sense -
OUT_POS (Measuring voltage positive) Signal +
OUT_NEG (Measuring voltage negative) Signal -
* The shield is connected to the housing by means of the cable gland (see page 29).
To connect the cable, the wires must be connected to the inner terminals (marked
in the illustration on page 19).
Note: The color coding of the connecting cable (A/D converter / indicator to junction
box) might be different when connecting a non-Minebea Intec platform to the
Midrics indicator.
