REPAIR GUIDE

■■

■

Fig. 1Fig. 1

Fig. 1

Short-circuit with discharger or resistor of 200-300 ohm/3w.

Check voltage to make sure it is discharged.

■■

■ Precautions

Chemicals

Handle chemicals of high volatility with care, use of which will affect to your health and environment.

1. Store them sealed in a specific place to prevent exposure to high temperature or direct sunlight.

2. Avoid dividing them into small containers and prevent vaporization.

3. Keep containers sealed when not in use.

4. Avoid using them as much as possible. When required, remove only required amount from the

container to make full use.

Plastic parts

1. When cleaning plastic parts, use cleaning paper or cloth. Never use thinner, ketone, ether.

2. When installing plastic parts, insert the specific screws vertically to the parts. (Be careful not to

tighten too much.

PCBs

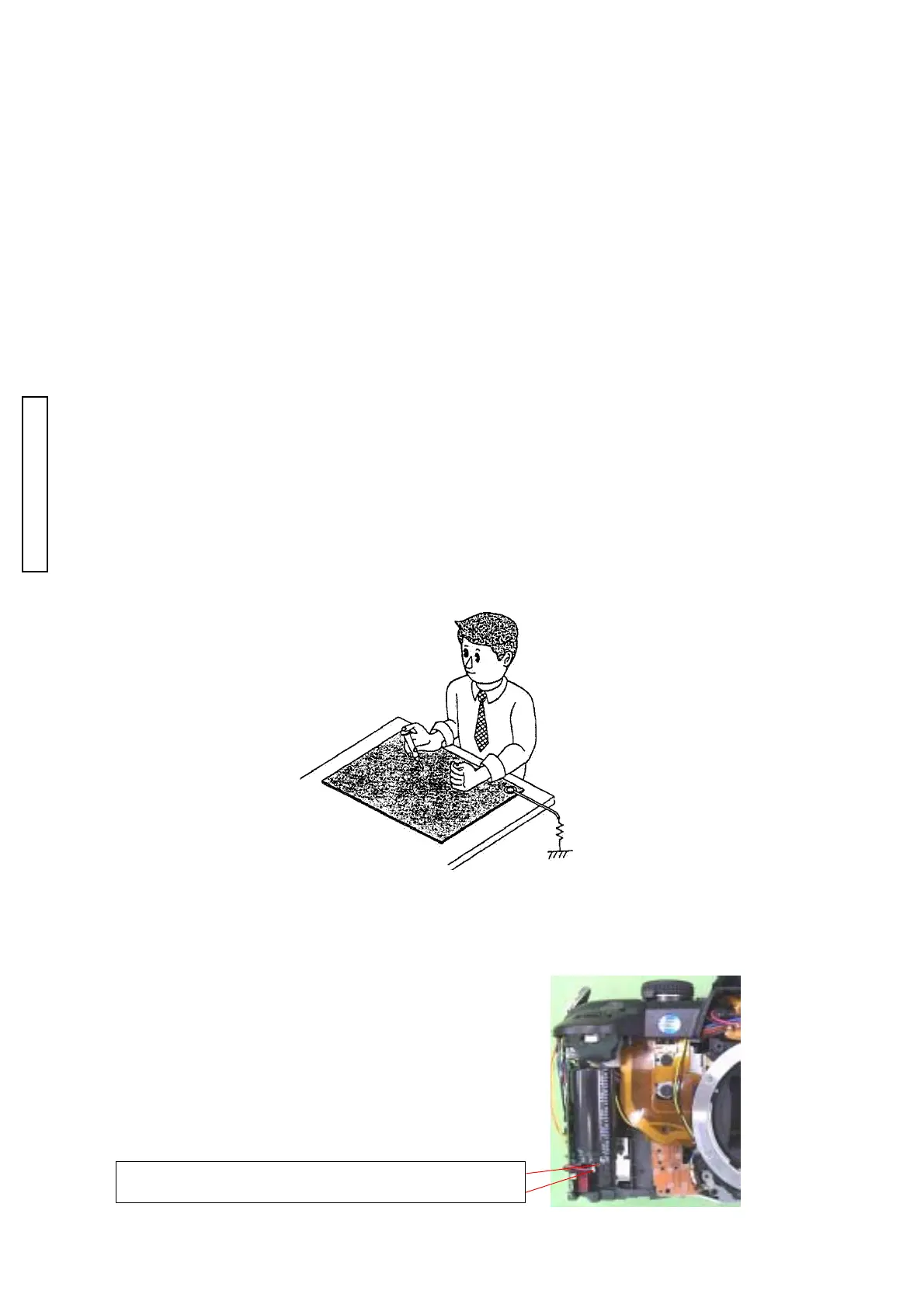

Since PCBs use MOS IC, you must reduce static electricity. When repairing a PCB itself, or when

wiring, please perform your work as illustrated below.

If grounding is impossible, connect a cable to a steel desk or shelf.

Discharge

Before disassembly, be sure to discharge the main condenser in the following manner. (Fig. 1)

Keep touching the conductiveKeep touching the conductive

Keep touching the conductive

mat while you work.mat while you work.

mat while you work.

Conductive MatConductive Mat

Conductive Mat

GNDGND

GND

1M1M

ΩΩ
