REPAIR GUIDE

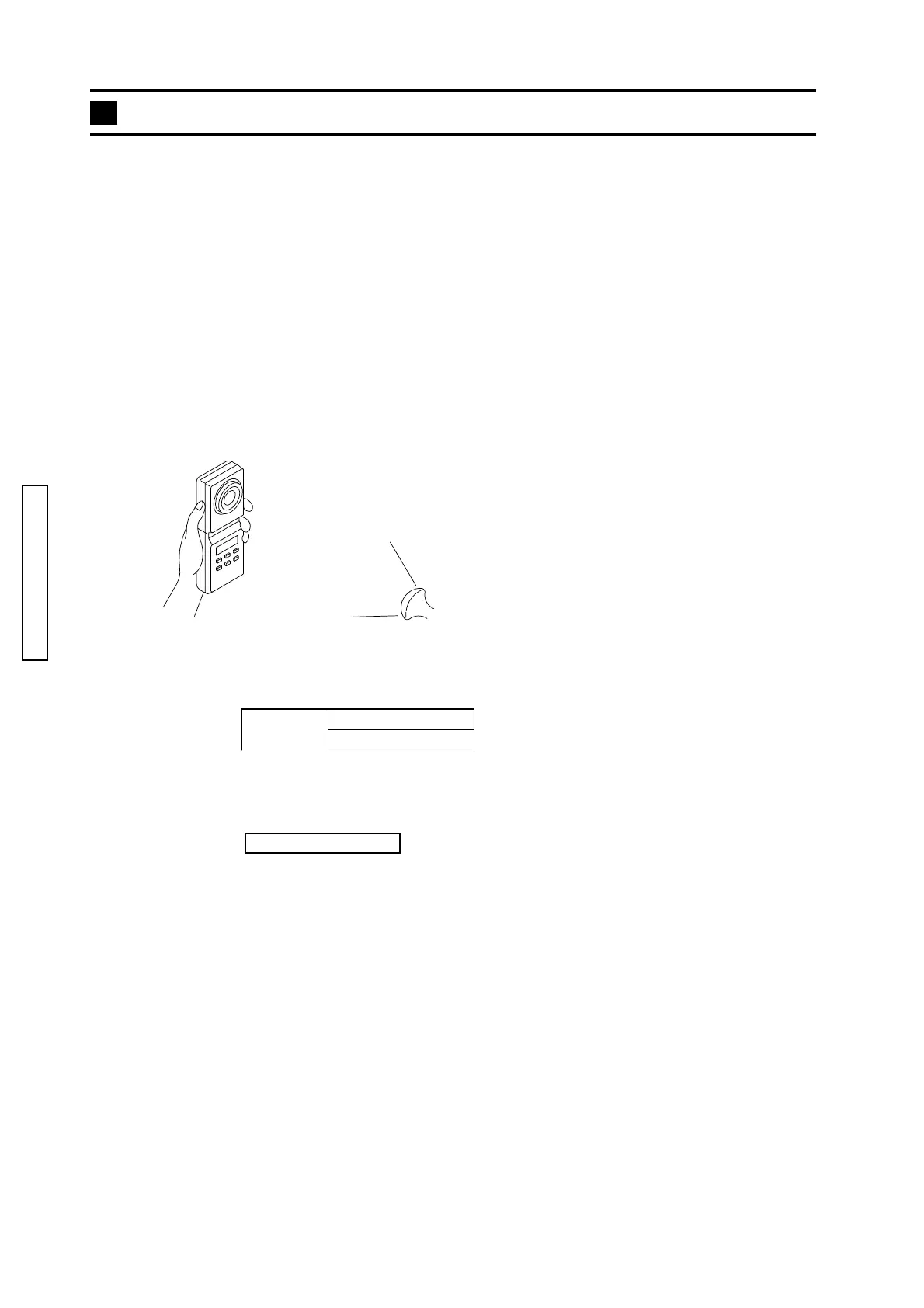

Fig.1Fig.1

Fig.1

Ev10±0.3Ev

Chromaticity

ｘ＝0.445〜0.455

ｙ＝0.405〜0.415

Light Source-A Maintenance

OutLine

Because high accuracy of required light source-A is required when adjusting and confirming.

Measuring instrument

Chroma meter (CL-200)

Liminance meter (LS-100)

Light source-A (tungsten light)

Procedure

*Managements of the chromaticity and the luminance

1. Light the light source-A on.

2. Measure the chromaticity coodinate (x,y) with the chroma meter. (Fig.1)

3. The result should be within the range of the following table.

* If the result is out of the range, adjust the light voltage of the light source-A through the slidax.

4. Measure the luminance with the luminance meter.

5. The result should be within the range of the following table.

*If the result is out of the range, adjust the distance of the light source-A.
