Minolta DYNAX 7 Repair Guide

(2181) 35
REPAIR GUIDE
■■
■■
■
Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
■■
■■
■
Fig. 2Fig. 2
Fig. 2Fig. 2
Fig. 2

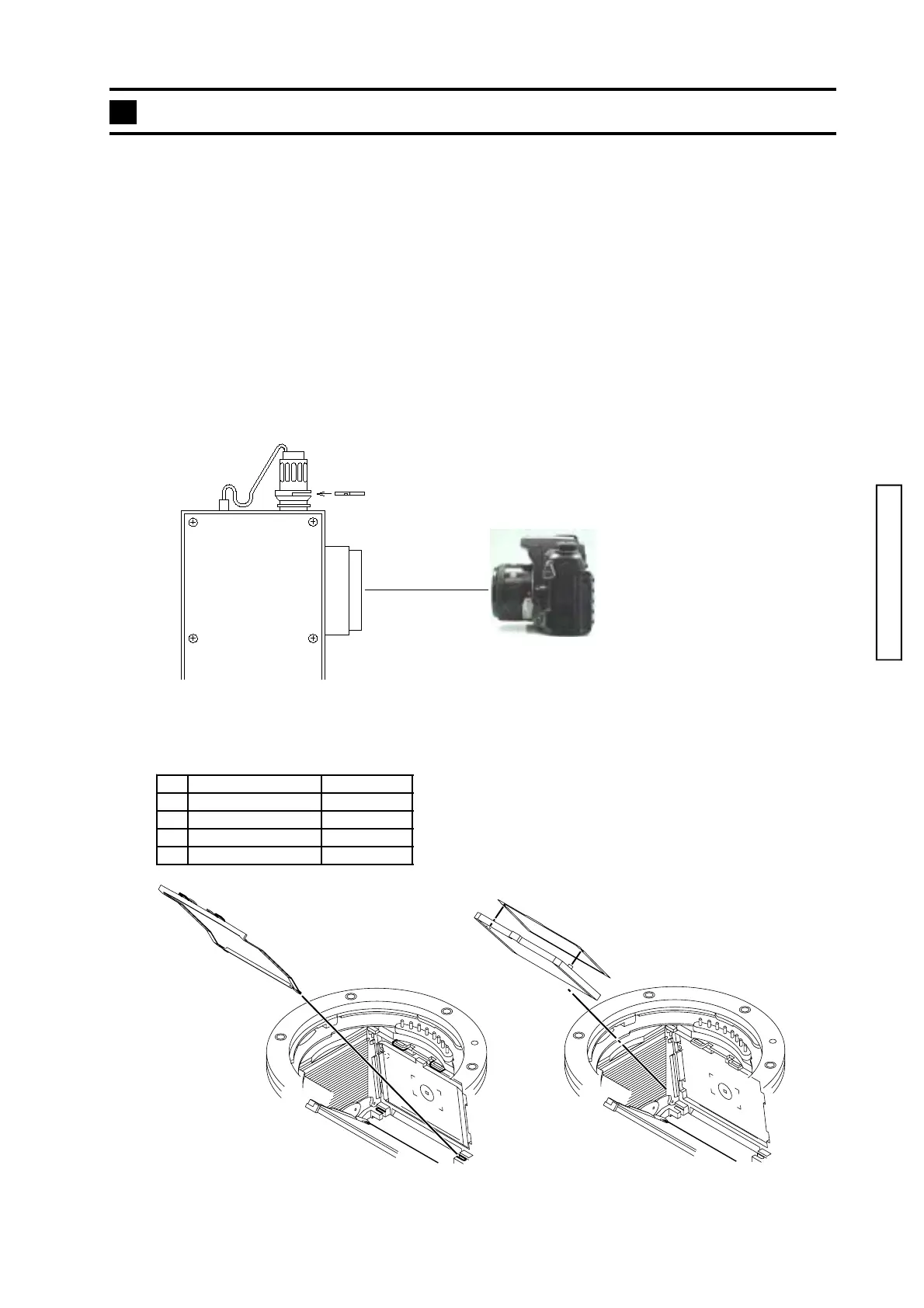

Viewfinder Back Adjustment
Equipment Required
1000mm Collimator
AE Master Lens
Magnifier
Adjustment
1. Set up the camera as in Fig. 1, so that the chart is at the center of viewfinder.
2. Set Master Lens to infinity.
3. Check that the chart is in focus.
If not, Select one or two VB Washers, and install Washer(s) as in Fig. 2.
In case of front focus: Make VB Washers thinner.
In case of rear focus: Make VB Washers thicker.
Parts No. T= (mm)
A 2181-5045-01 0.05
B 2181-5046-01 0.1
C 2181-5047-01 0.15
D 2181-5048-01 0.2
1000mm Collimator1000mm Collimator
1000mm Collimator1000mm Collimator
1000mm Collimator
Master LensMaster Lens
Master LensMaster Lens
Master Lens
VB WASHERVB WASHER
VB WASHERVB WASHER
VB WASHER
FRESNAL SPRINGFRESNAL SPRING
FRESNAL SPRINGFRESNAL SPRING
FRESNAL SPRING
FOCUSING SCREENFOCUSING SCREEN
FOCUSING SCREENFOCUSING SCREEN
FOCUSING SCREEN
VB WASHERVB WASHER
VB WASHERVB WASHER
VB WASHER
MagnifierMagnifier
MagnifierMagnifier
Magnifier

Minolta DYNAX 7 Specifications

General

Camera Type	SLR
Film Format	35mm
Flash Sync Speed	1/200 sec
Sensor Type	N/A (Film Camera)
Sensor Size	N/A (Film Camera)
Effective Pixels	N/A (Film Camera)
Lens Mount	Minolta A mount
Shutter Speed	1/8000 to 30 sec, Bulb
ISO Range	ISO 6 to 6400
ISO Sensitivity	ISO 6 to 6400
Viewfinder	Pentaprism
Storage Media	N/A (Film Camera)
