Minolta DYNAX 7 Repair Guide

(2181) 41
REPAIR GUIDE
Fig.1Fig.1
Fig.1Fig.1
Fig.1
How to Handle RESET MODE
Caution: This MODE must be used only when PI-PR adjustment fails and camera is not functional at all.
If camera is not functional at all, you can not do switch on or off camera power or you can not release at all
by the communication failure.

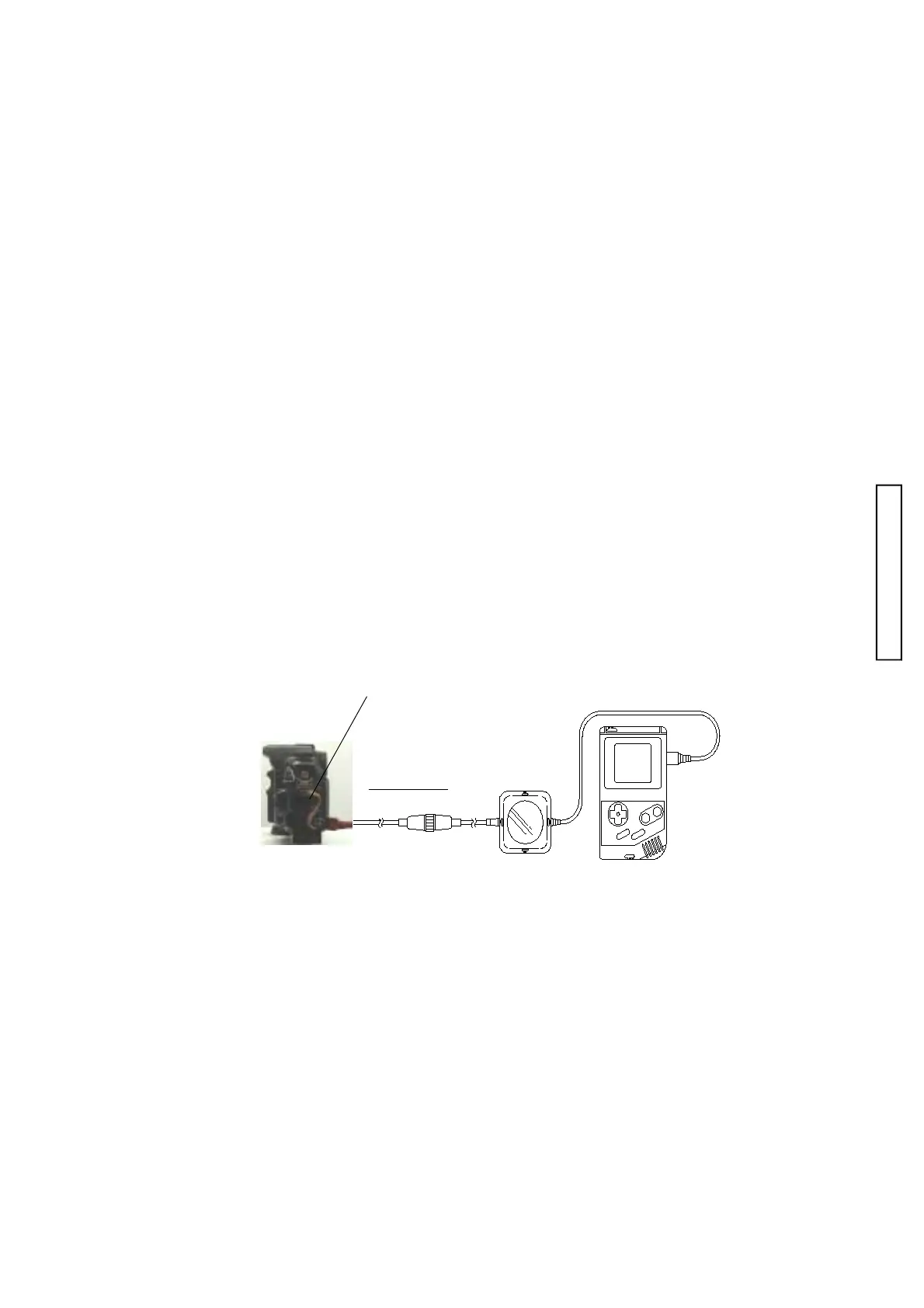

1. Set up the equipment as in Fig. 1.
2. Select "PI-PR ADJ." from the main menu and press SELECT Button.
3. Select "RESET MODE" from the menu and press SELECT Button.
4. Select "RESET MODE 1" from the sub menu and press SELECT Button.
5. Connect AC Adapter and press SELECT Button, when "SET BATTERY" is displayed.
6. Press Shutter-release Button partway down. (S1 ON)
After do this, PI-PR communication is terminated in the camera.
7. Press SELECT Button to return to sub menu.
8. Disconnect AC Adapter.
9. Connect AC Adapter again.
After connecting to the AC Adapter, PI-PR Adjustment is automatically executed in the camera.
10. Select "RESET MODE 2" from the sub menu and press SELECT Button.
11. Press Shutter-release Button partway down. (S1 ON)
After do this, RESET MODE is cancelled and return to normal mode.
12. Press SELECT Button to return to sub menu.
Contact Jig for 2181Contact Jig for 2181
Contact Jig for 2181Contact Jig for 2181
Contact Jig for 2181
ROM Pack for 2181ROM Pack for 2181
ROM Pack for 2181ROM Pack for 2181
ROM Pack for 2181
HIT ControllerHIT Controller
HIT ControllerHIT Controller
HIT Controller
I/F Box for HITI/F Box for HIT
I/F Box for HITI/F Box for HIT
I/F Box for HIT
Contact Jig CableContact Jig Cable
Contact Jig CableContact Jig Cable
Contact Jig Cable
