Mircom FX-350 Series User Manual

55
Indicators, Controls and Operations
11.10.1Status Display Mode
The display is in status display mode when there are no items in the queue and command
mode is not active. When there are no active alarms on the system, the display will show a
system normal message. By default the message is displayed in the following format
When there is a pre-alarm, alarm verification active or retard verification in process on a
device the system normal message is replaced by a message in the following format:
OR
OR
If the device or circuit returns to normal, the system normal message will be re-displayed. If
multiple pre-alarms or alarm verification sequences are active at the same time only the first is
displayed. Pressing the INFO button while the pre-alarm or verification message is active will
display additional information on the circuit or device as described under queue display mode.

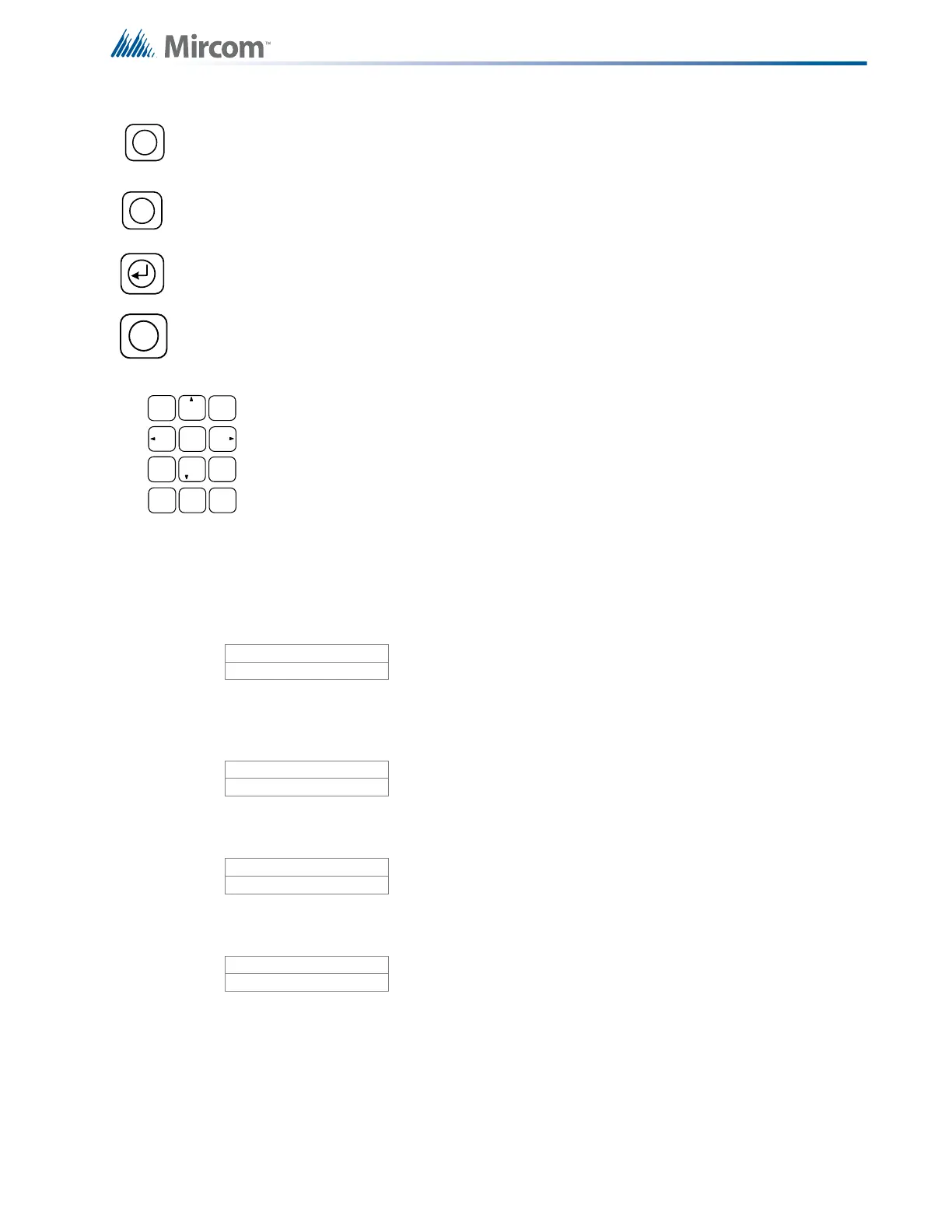

INFO
• displays additional information for the currently selected item in queue display
mode or when a pre-alarm, alarm verification or retard operation is active in
status display mode
MENU
• enter command mode or returns to base menu if already in command mode
ENTER
• accepts currently selected item or menu selection in command mode
CANCEL
• cancels current operation in command mode and returns to previous menu, or
exits command mode if at base menu
ALPHA NUMERIC KEYS
• Some commands require the entry of numeric values, for example loop and
device address for device configuration or changing the time etc.
• Some configuration requires entering the alpha keys for example the labels for
circuits. Multiple key presses are required for entering an appropriate alpha
character. First key press enters the numeric character, the second key press
enters the first alpha character and another key press will enter the second alpha
character and so on. The sequence is repeated with subsequent key presses.
?
M
X
1
2
ABC
3
DEF
5
JKL
6
MNO
7 8
TUV
9
WXY
* 0
QZ
#
4
GHI
PRS
System Normal
12:47 MON 2005-10-03
Pre-alarm detected
12:47 MON 2005-10-03
Alarm verification
12:47 MON 2005-10-03
Retard verification
12:47 MON 2005-10-03
