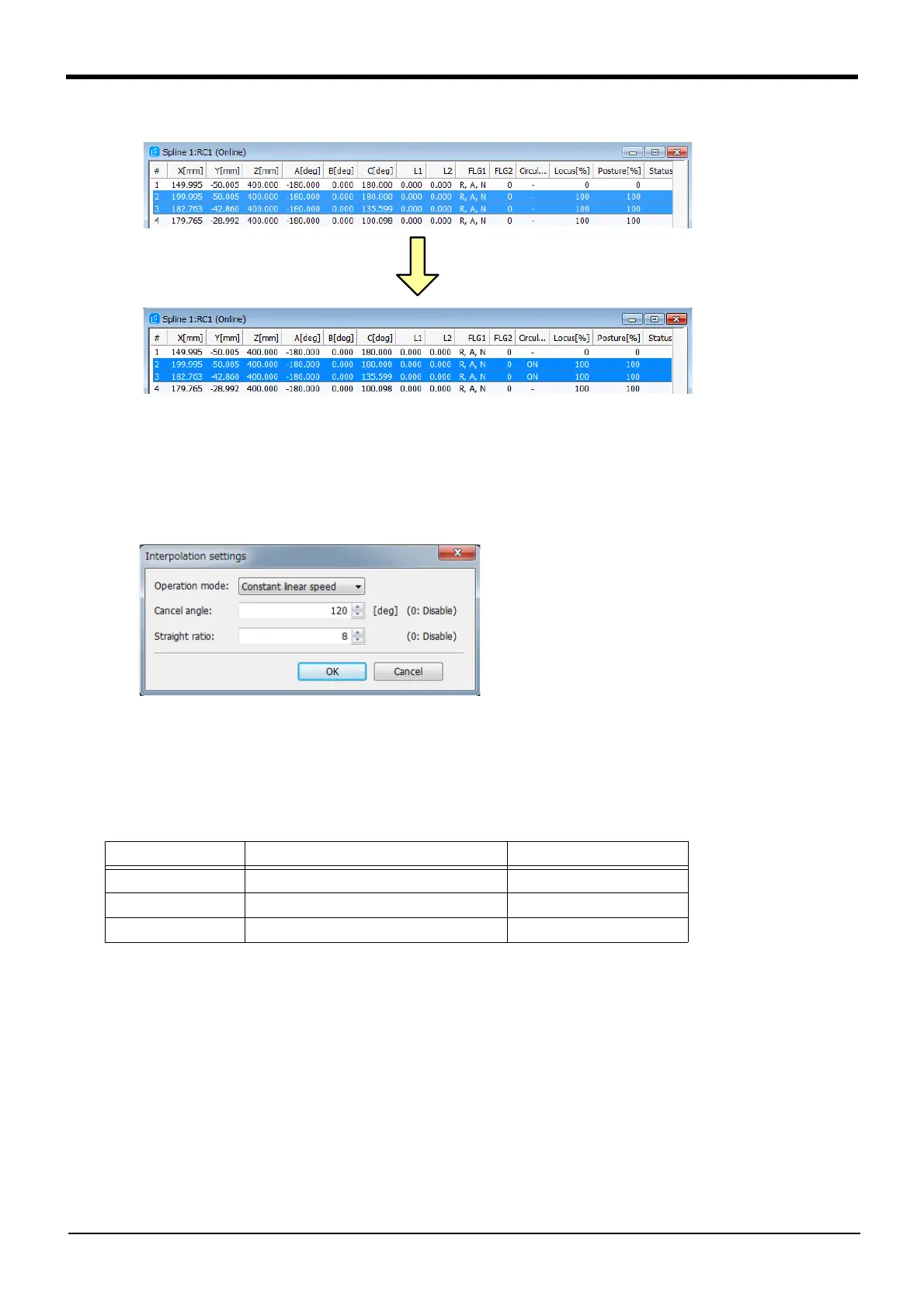

Fig.7-59:Circular interpolation
■Interpolation settings
Set the "Operation mode", "Cancel angle" and "Straight ratio" for the spline interpolation.
When the menu [Tool]
→ [Interpolation settings] is clicked, the interpolation settings set in the spline file on
the active Spline File Edit screen appear in the setting screen.
Fig.7-60:Interpolation settings screen
If the [OK] button is clicked after changing the settings, the changes will be saved and the setting screen will
close. If the [Cancel] button is clicked, the setting screen will close without saving the changes. The setting
range for each item is shown in Table 7-14.
Table 7-14:Setting range for interpolation setting items
Item Setting range Default value
Operation mode Constant linear speed/variable linear speed Constant linear speed
Cancel angle 0 to 180 [deg] 120
Straight ratio 0 to 100 [fold] 8
