Appendix-656 Spline interpolation
7Appendix
3) Teaching the grasp position
* This is only required for Ex-T spline. For spline, perform the procedure in "4)Creating paths".
Click [Work-flow] to display the Work-flow screen. Click the [Get location] button on the Work-flow
screen to teach the position at which the workpiece is to be grasped.
* The data taught here is the grasp position.
* Ensure not to move the workpiece after teaching the grasp position.

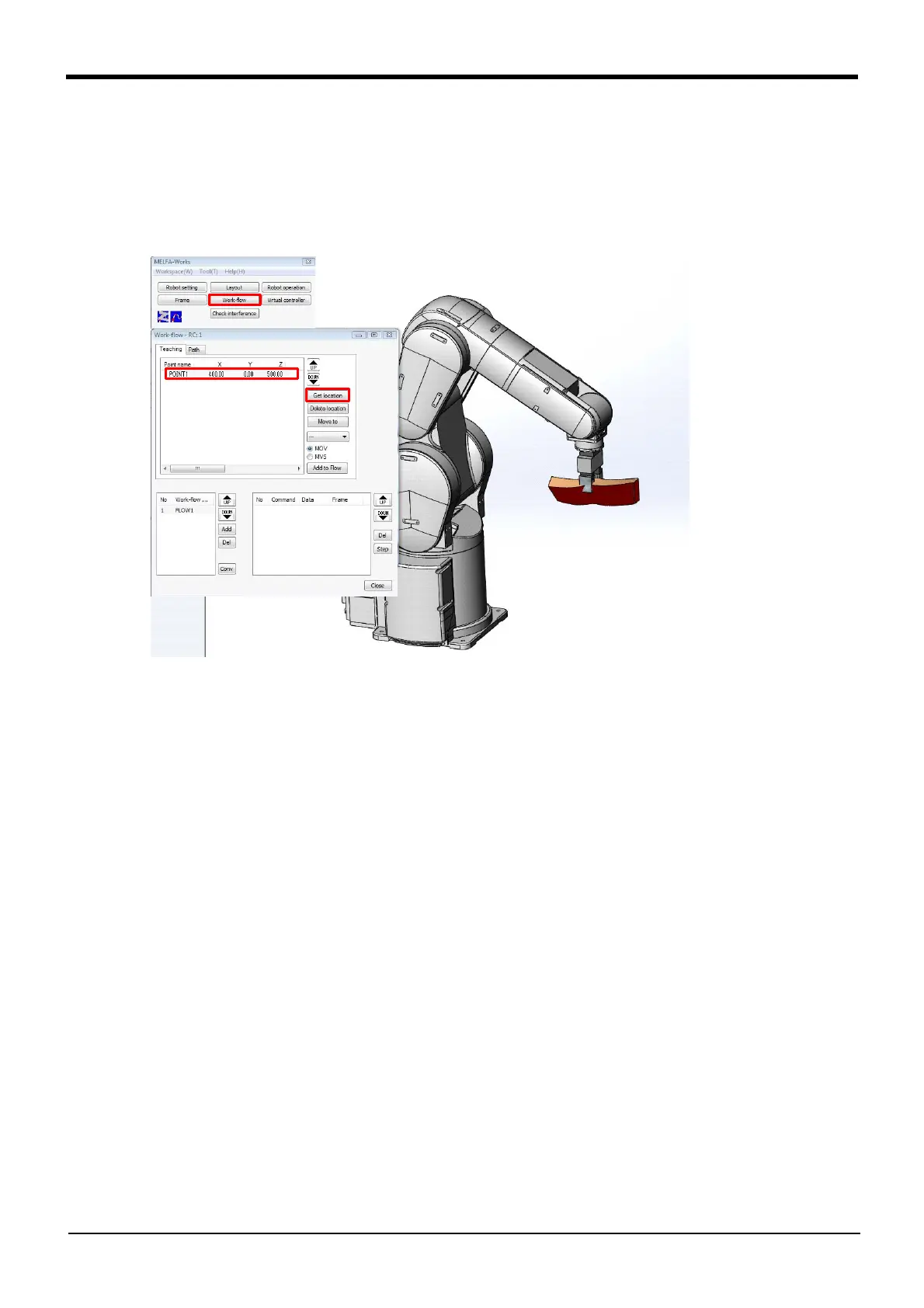

Fig.7-77:Teaching the grasp position
To Next Page
