Appendix 3 CPU Module Processing Time
Appendix 3.3 Factors that increase the scan time
(b) Online change (files)
When a file is written to the running CPU module, the processing time listed in the following table is required.
*1
*1 The time in the table is for the case where the service processing count is set to one.
(8) Non-group output status read

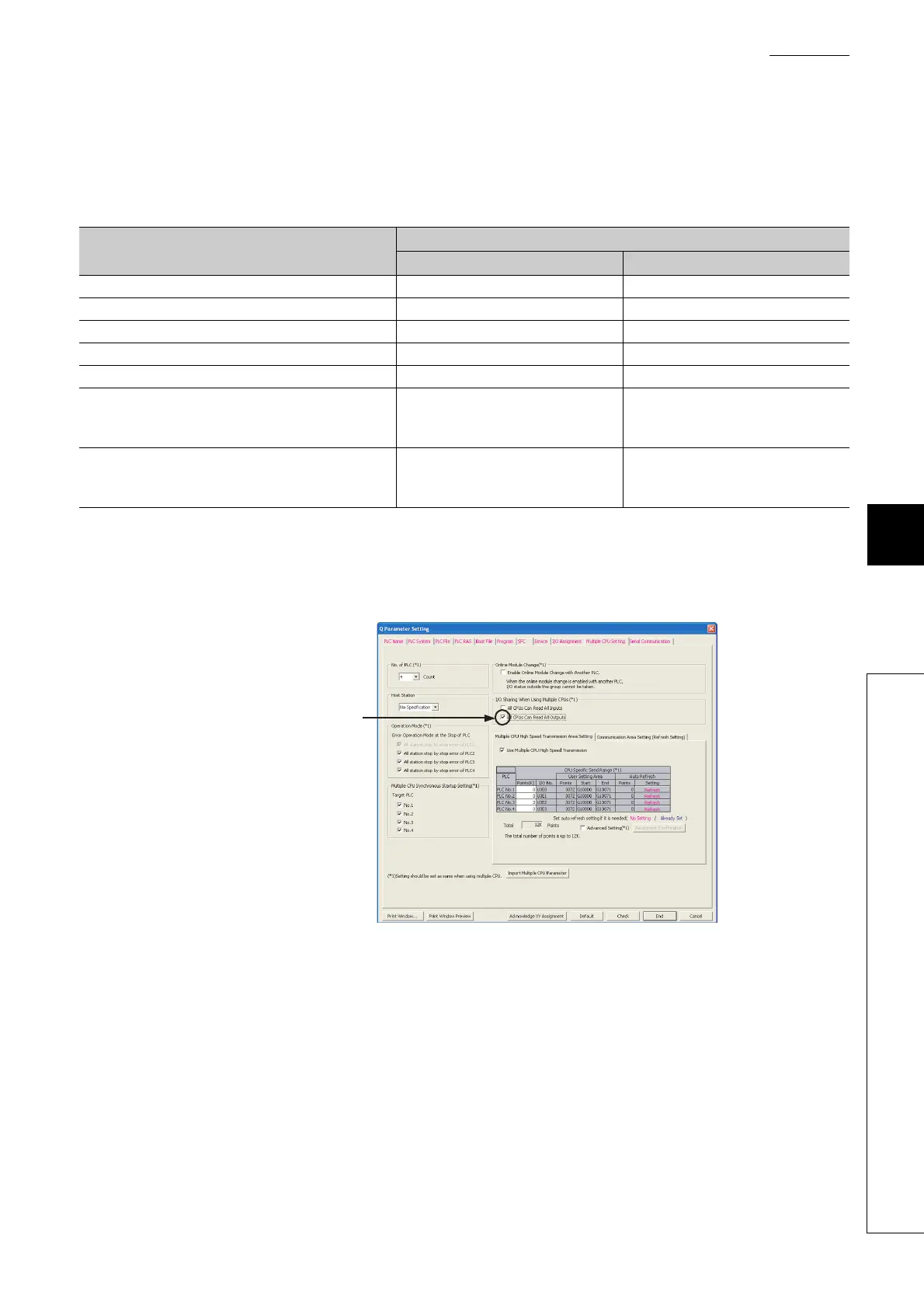

In multiple CPU systems, the scan time increases when "All CPUs Can Read All Outputs" is selected in the
Multiple CPU settings screen of the PLC parameter dialog box.
CPU module
Processing time
Scan time = 2ms Scan time = 20ms
Q00UJCPU Up to 4.00ms Up to 6.20ms
Q00UCPU Up to 3.50ms Up to 5.80ms
Q01UCPU Up to 3.50ms Up to 5.60ms
Q02UCPU Up to 4.80ms Up to 4.80ms
Q03UD(E)CPU Up to 3.75ms Up to 3.75ms
Q04UD(E)HCPU, Q06UD(E)HCPU, Q10UD(E)HCPU,
Q13UD(E)HCPU, Q20UD(E)HCPU, Q26UD(E)HCPU,
Q50UDEHCPU, Q100UDEHCPU
Up to 3.70ms Up to 3.70ms
Q03UDVCPU, Q04UDVCPU, Q04UDPVCPU,
Q06UDVCPU, Q06UDPVCPU, Q13UDVCPU,
Q13UDPVCPU, Q26UDVCPU, Q26UDPVCPU
Up to 0.8ms Up to 0.8ms
The scan time increases
when this parameter is set.
