(12)Multiple CPU settings Note8.3Note3
Parameters required for configuring a multiple CPU system are set.
(To the next page)
Note3

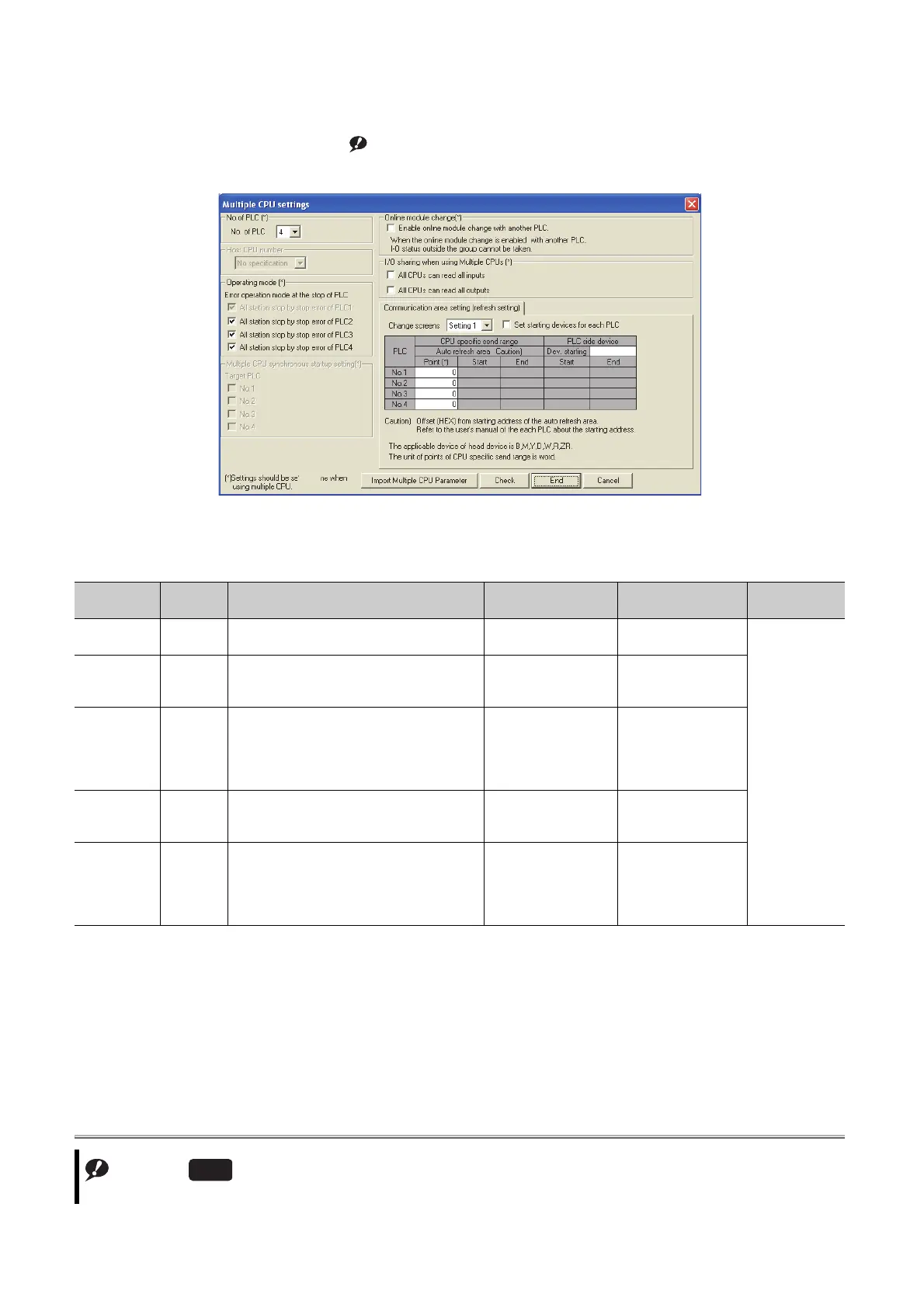

Figure 8.23 Multiple CPU settings
Table8.23 Multiple CPU setting list
Item
Parameter
No.
Description Setting range Default Reference
No. of PLC 0E00
H
Set the number of CPU modules used in a multiple
CPU system.
1 to 4 1
QCPU User's
Manual (Multiple
CPU System)
Host CPU
number
E00C
H
Set a CPU number for which the multiple CPU
setting parameters are set. (Set the number of the
connected CPU module.)
PLC No.1 to No.4 Blank
Operating
mode
0E01
H
Select the multiple CPU system operation to be
performed in case a stop error occurs in any of
CPU No.2 to No.4.
When CPU No.1 results in a stop error, the multiple
CPU system stops. (Fixed)
Selected/deselected All items selected
Multiple CPU
synchronous
startup setting
E00B
H
Enable or disable synchronous startup of the CPU
modules on the multiple CPU system.
Mp.1 to No.4 All items selected
Online module
change
E006
H
Enable or disable the online module change in the
multiple CPU system. (When enabled, the CPU
module cannot read the I/O data outside the
specified group.)
Selected/deselected
• High Performance
model QCPU:
Deselected
• Process CPU:
Selected
Note8.3
The Redundant CPU cannot be used in multiple CPU systems.
Redundant
