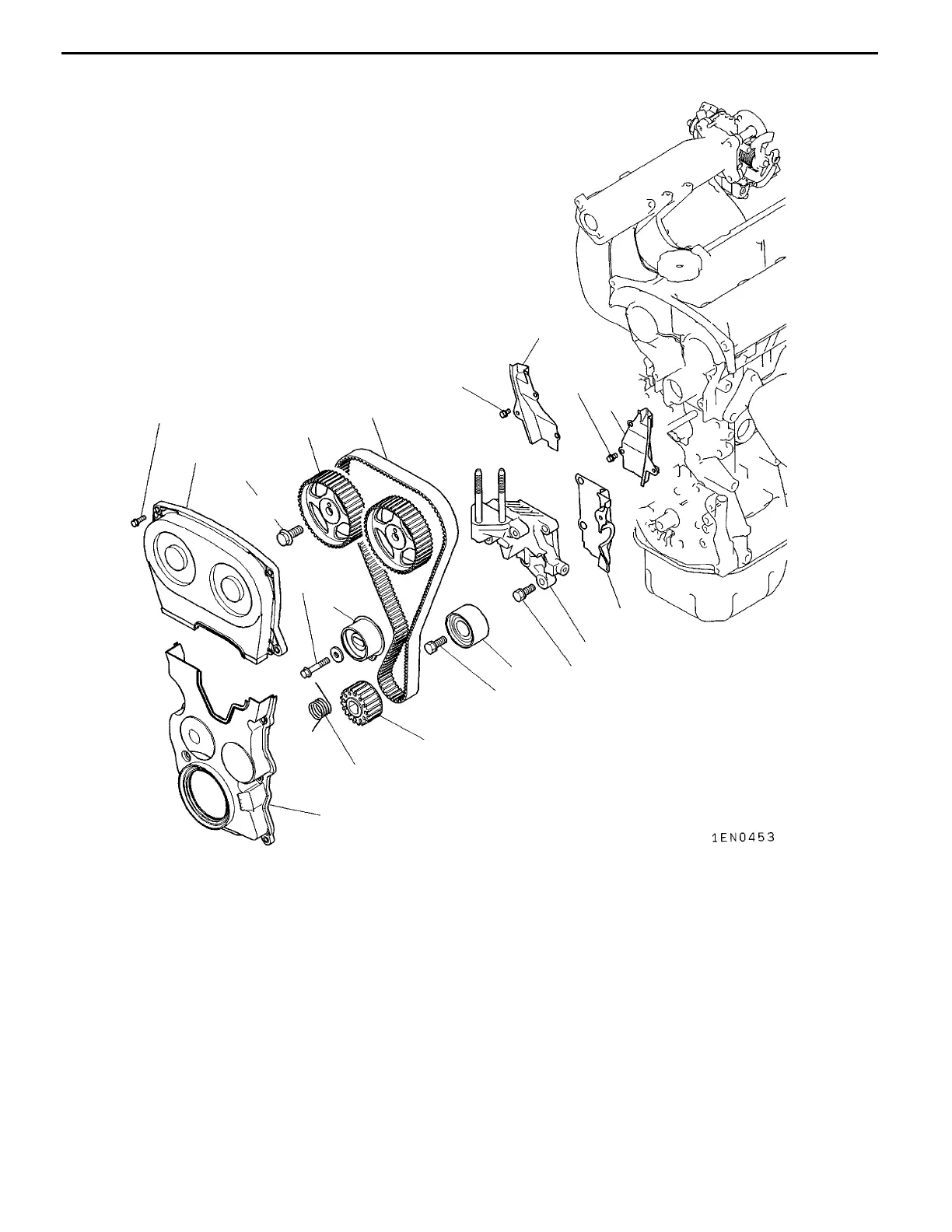

REMOVAL AND INSTALLATION <DOHC>
11 Nm
1
7
9
10
35 Nm
4
3
6
2
5
23 Nm
88 Nm
8
35 Nm
11
13
12
11 Nm
11 Nm
Removal steps
1. Timing belt upper cover
2. Timing belt lower cover
A
A
""
D
A
3. Timing belt
A
A
""
B
A
4. Tensioner spring
A
A
""
B
A
5. Timing belt tensioner
6. Idler pulley
7. Crankshaft pulley
A
B
""
A
A
8. Camshaft sprocket bolt
9. Camshaft sprocket
10. Engine support bracket
11. Timing belt rear cover (lower)
12. Timing belt rear cover (right)
13. Timing belt rear cover (left)
