4G1 ENGINE (E-W) -
Cylinder Head and Valves
11A-9-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

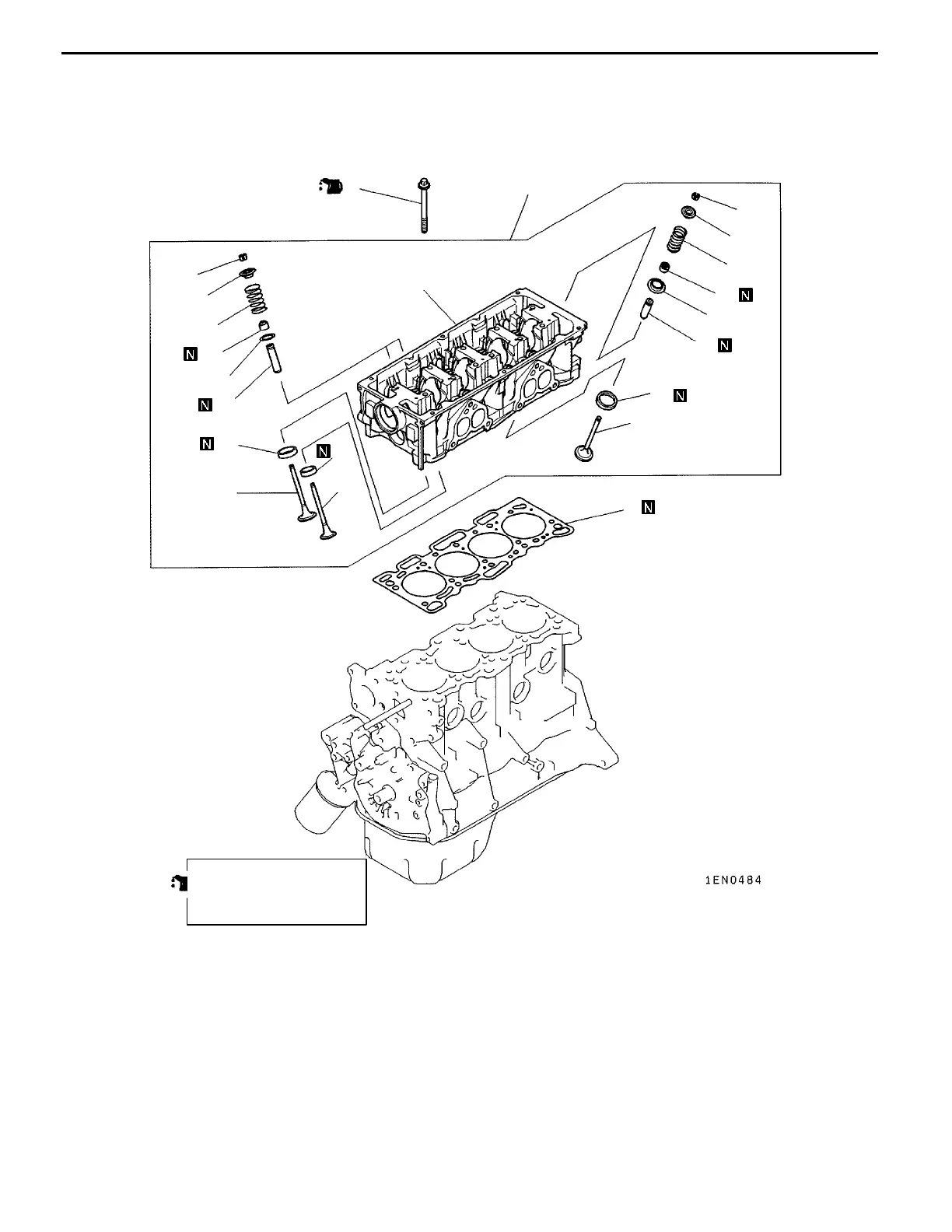

9. CYLINDER HEAD AND VALVES
REMOVAL AND INSTALLATION <SOHC 12-VALVE>
Apply engine oil to all
moving parts before
installation.
1
2
22
4
5
6
14
13
17
19
7
20
8
12
21
18
16
15
11
10
9
3
Removal steps
A
A
""
D
A
1. Cylinder head bolt
2. Cylinder head assembly
3. Cylinder head gasket
A
B
""
C
A
4. Retainer lock
5. Valve spring retainer
"
B
A
6. Valve spring
7. Intake valve (primary)
8. Intake valve (secondary)
A
B
""
C
A
9. Retainer lock
10. Valve spring retainer
"
B
A
11. Valve spring
12. Exhaust valve
A
C
""
A
A
13. Valve stem seal
14. Valve spring seat
A
C
""
A
A
15. Valve stem seal
16. Valve spring seat
17. Intake valve guide
18. Exhaust valve guide
19. Intake valve seat (primary)
20. Intake valve seat (secondary)
21. Exhaust valve seat
22. Cylinder head
PWEE9520-A
E
Dec. 1998Mitsubishi Motors Corporation Revised
