4G1 ENGINE (E-W) -
Cylinder Head and Valves
11A-9-9
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
"
B
A

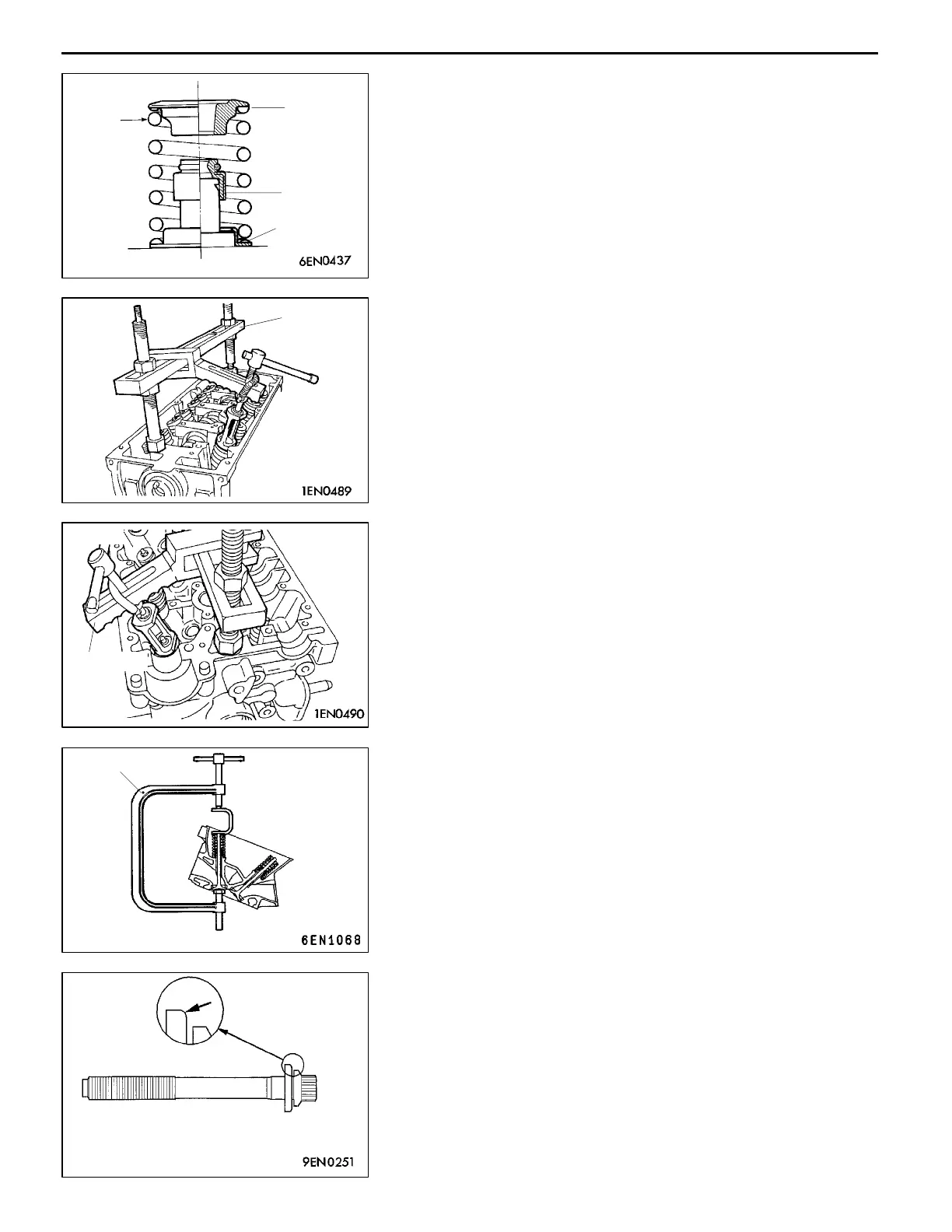

VALVE SPRING INSTALLATION
(1) Install the valve spring such that its painted end is on
the rocker arm side.
"
C
A
RETAINER LOCK INSTALLATION
"
D
A
CYLINDER HEAD BOLT INSTALLATION
(1) Before reusing the cylinder headbolt, check that its nominal
length does not exceed the specified limit. Replace the
bolt if this measurement exceeds the limit.
Limit: 103.2 mm
(2) Fit the washer as shown.
(3) Apply engine oil to the bolt’s thread and washer.
PWEE9520-A
E
Dec. 1998Mitsubishi Motors Corporation Revised
Painted
end
Spring
retainer
Stem seal
Spring seat
MD998772
SOHC
DOHC
MD998772
MD998735
To Next Page
