4G1 ENGINE (E-W) -
Fuel and Emission Control Systems
11A-5-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
5. FUEL AND EMISSION CONTROL SYSTEMS

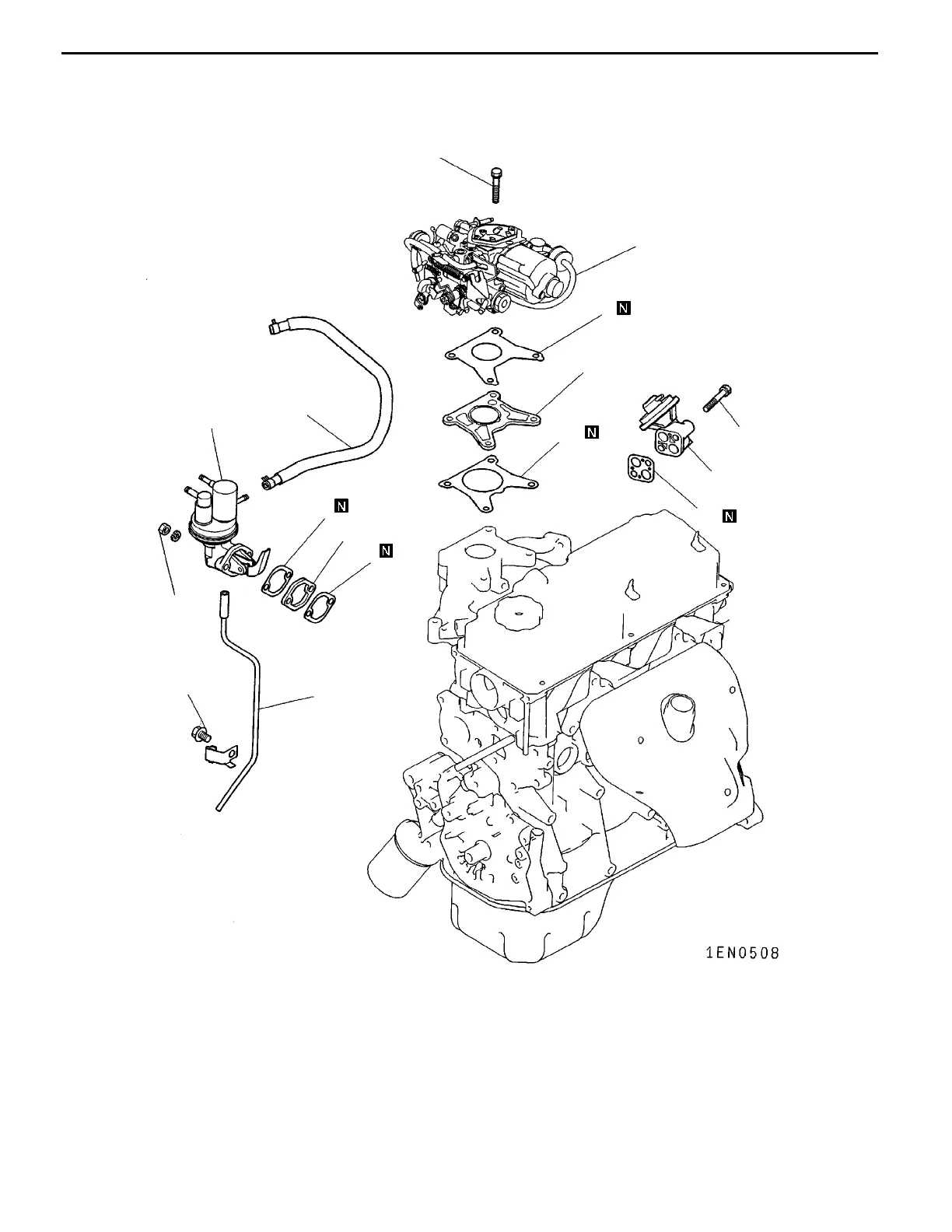

REMOVAL AND INSTALLATION <SOHC-CARBURETOR>
17 Nm
11 Nm
22 Nm
21 Nm
11
12
10
9
8
7
3
2
4
5
6
1
Removal steps
1. Breather tube
2. Fuel hose
3. Fuel pump
4. Gasket
5. Insulator
6. Gasket
7. Carburetor
8. Upper gasket
9. Spacer
10. Lower gasket
11. EGR valve (vehicles with automatic
transmission for GCC only)
12. Gasket
