4G1 ENGINE (E-W) -
Alternator and Ignition System
11A-3-3
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
REMOVAL SERVICE POINT
A
A
"

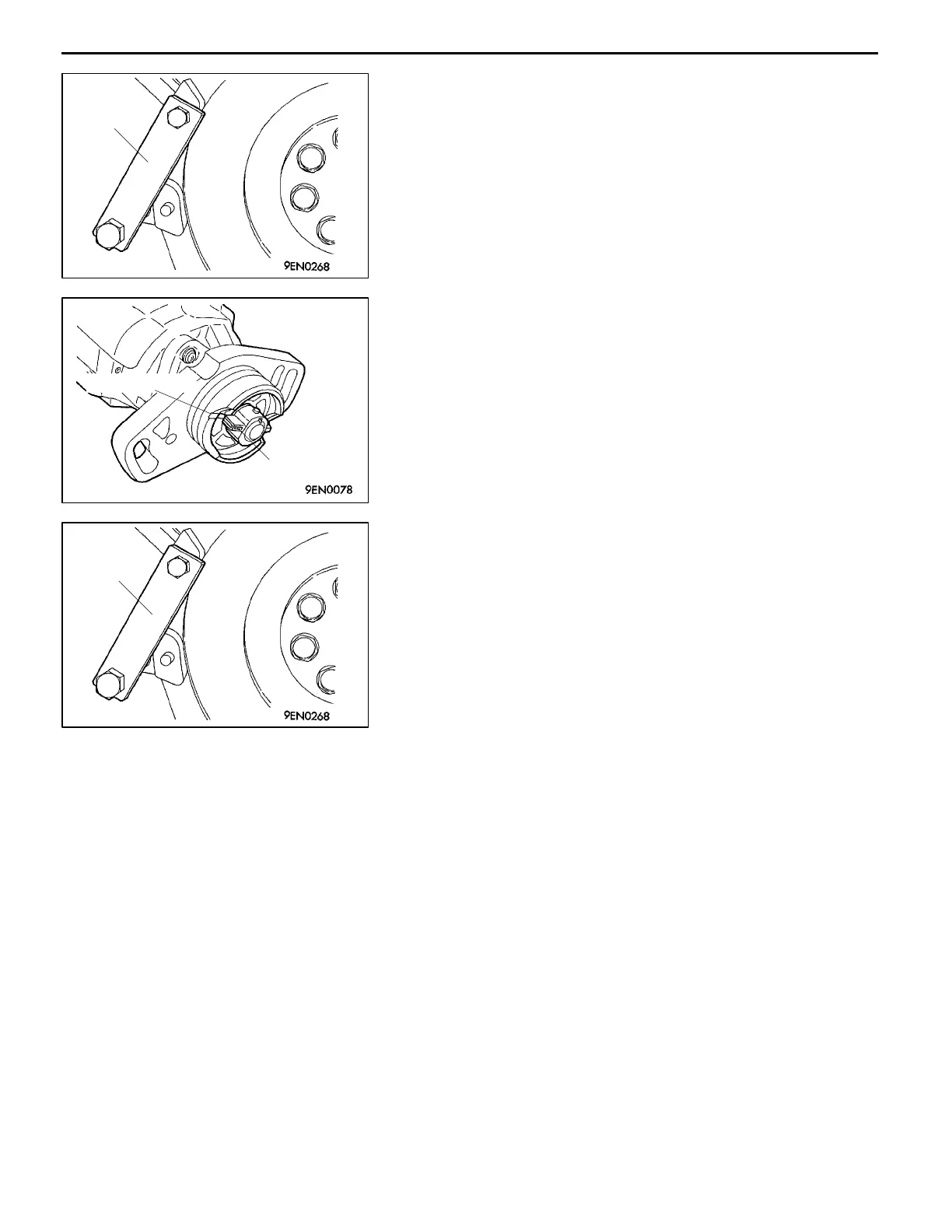

CRANKSHAFT BOLT REMOVAL
(1) Lock the flywheel or drive plate in position using the special
tool shown in the illustration, then loosen the crankshaft
bolts.
INSTALLATION SERVICE POINTS
"
A
A
DISTRIBUTOR INSTALLATION
(1) Turn th e crankshaft clockwise until cylinder No. 1 is at
top dead center on its compression stroke.
(2) Align the alignment marks on the distributor housing and
coupling.
(3) Fit the distributor onto the engine, aligning the stud bolts
with the slots in the distributor mounting flange.
"
B
A
CRANKSHAFT BOLT INSTALLATION
(1) Lock the flywheel or drive plate in position using the special
tool shown in the illustration, then tighten the crankshaft
bolts.
MD998781
Alignment mark
Alignment mark
MD998781
