CRANKSHAFT BEARING INSTALLATION
4G13, 4G15

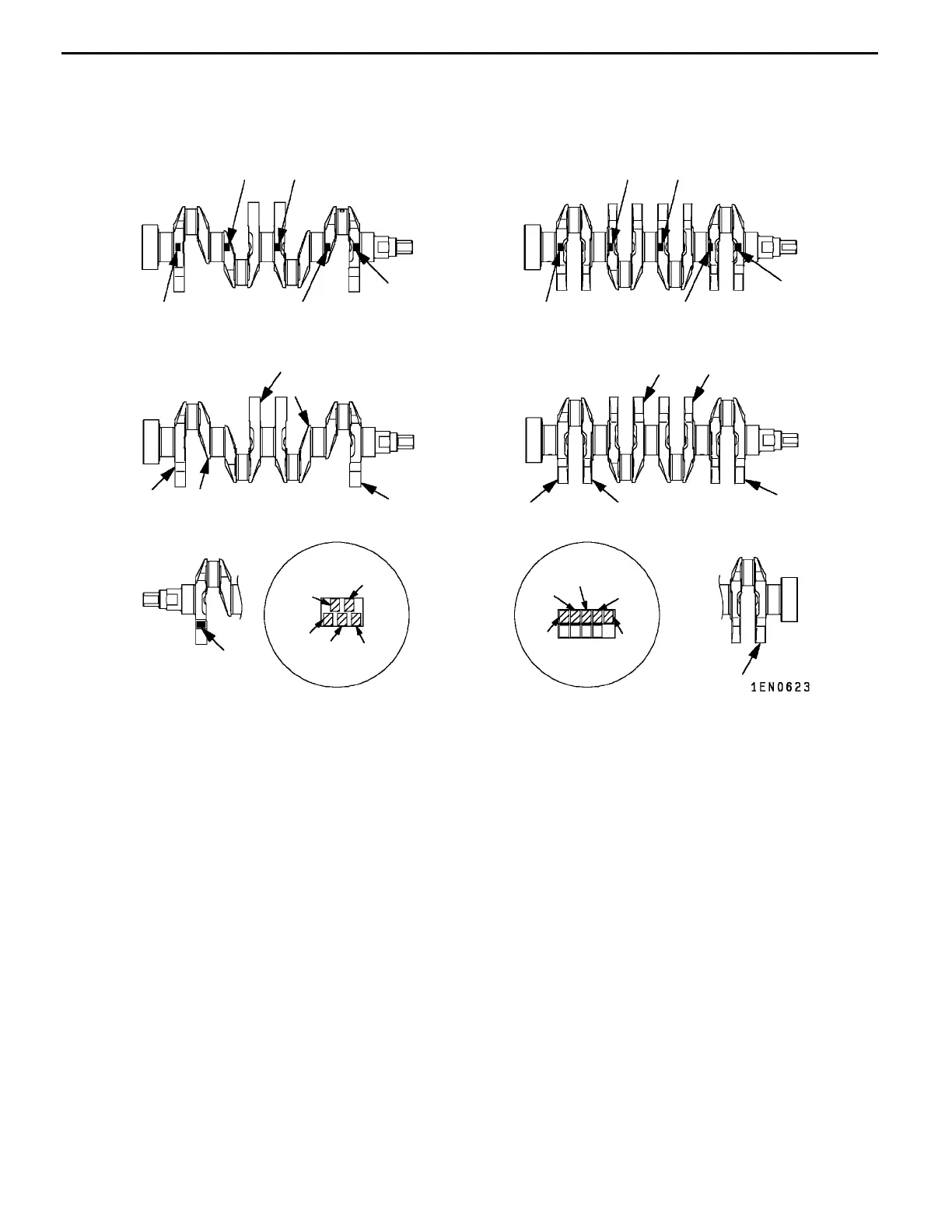

Color code positions (type 1)
No. 5 No. 2
Color code positions (type 2)
No. 4
No. 3
No. 5
No. 2
No. 1
Identification mark positions
No. 4
No. 3
No. 5
No. 2
No. 1
4G18
No. 4 No. 3
No. 5
No. 2
No. 1
No. 4
No. 3
No. 5
No. 2
No. 1
No. 4
No. 3
No. 5
No. 2
No. 1
No. 4
No. 3
No. 1
(1) Select bearings according to the crankshaft identification
marks or color codes, referring to the following table.
If they are not identifiable, measure the crankshaft journals
and choose bearings to match the measurements.
PWEE9520-A
