4G1 ENGINE (E-W) -
Timing Belt
11A-4-4
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

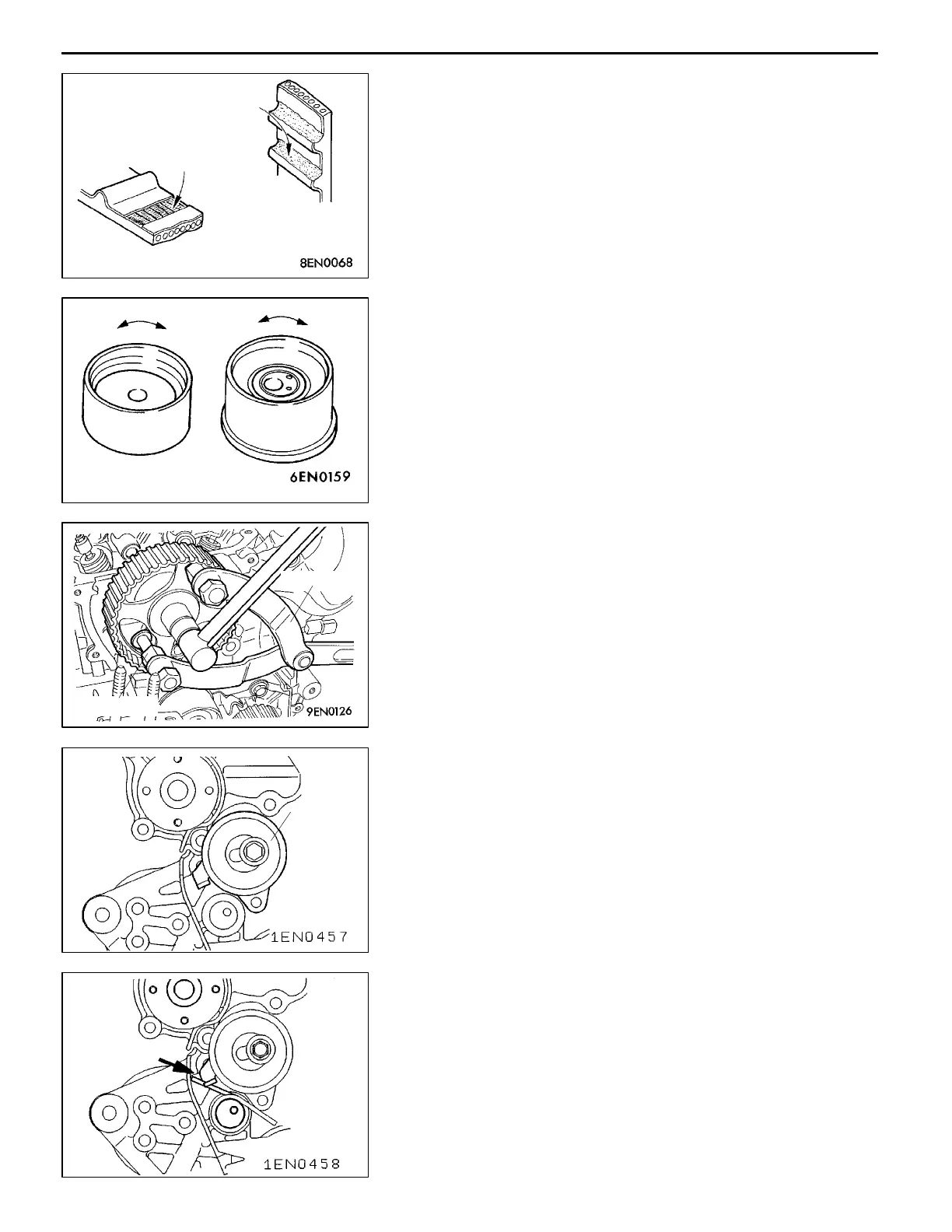

(7) Abnormal wear on teeth
Initial stage:
Canvas worn (fluffy canvas fibers, rubbery texture gone,
white discoloration, canvas texture indistinct)
Final stage:
Canvas worn, exposing rubber (tooth width reduced)
(8) Missing teeth
2. TENSIONER PULLEY AND IDLER PULLEY
(1) Check that the pulleys turn smoothly without play and
are not abnormally noisy. Replace either or both of the
pulleys if necessary.
INSTALLATION SERVICE POINTS
"
A
A
CAMSHAFT SPROCKET BOLT INSTALLATION
(1) Using the special tools shown in the illustration, lock the
camshaft sprocket in position.
(2) Tighten the camshaft sprocket bolt to the specified torque.
"
B
A
TIMING BELT TENSIONER / TENSIONER SPRING
INSTALLATION
(1) Lock th e timing belt tensioner in the illustrated position.
(2) Fit one of the tensioner spring projections over the hooked
portion of the timing belt tensioner and fit the tensioner
onto the oil pump case.
Canvas worn exposing
rubber
Missing tooth
MB990767
MD998715
Timing belt
tensioner
