Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Pistons and Connecting Rods
11A-11-1
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

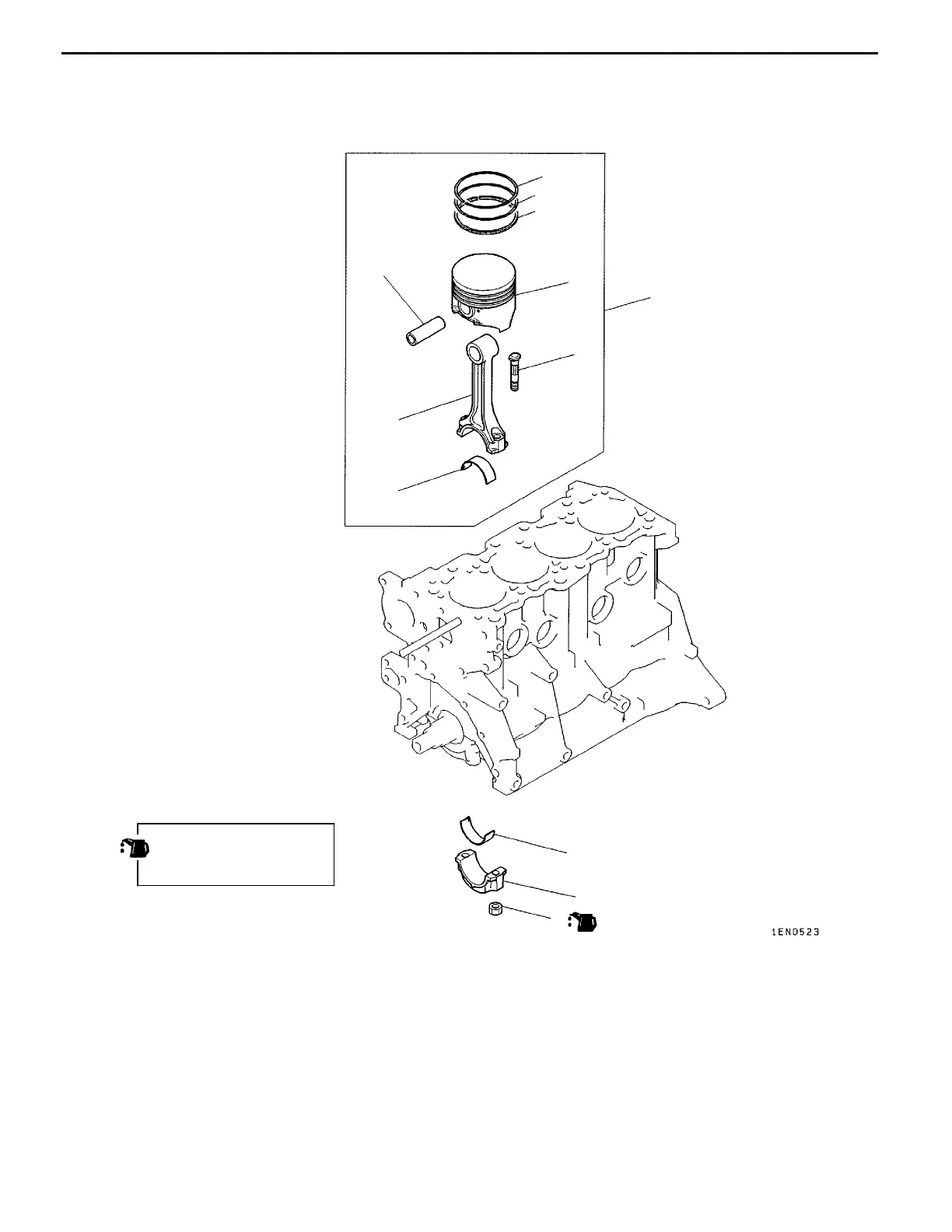

11. PISTONS AND CONNECTING RODS
REMOVAL AND INSTALLATION
6
7
8
10
12
4
9
11
5
1
2
3
Apply engine oil to all
moving parts before
installation.
Removal steps
"
G
A
1. Connecting rod nut
A
A
""
F
A
2. Connecting rod cap
"
E
A
3. Connecting rod bearing
"
D
A
4. Piston and connecting rod assem-
bly
5. Connecting rod bearing
"
C
A
6. Piston ring No. 1
"
C
A
7. Piston ring No. 2
"
B
A
8. Oil ring
A
B
""
A
A
9. Piston pin
10. Piston
11. Connecting rod
12. Bolt
