Mitsubishi 4G1 series Workshop Manual

4G1 ENGINE (E-W) -
Intake and Exhaust Manifolds
11A-7-4
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
INSTALLATION SERVICE POINTS
"
A
A
REED VALVE, BRACKET AND AIR PIPE
INSTALLATION
(1) Insert the lower end of the air pipe into the exhaust
manifold, then tighten the pipe nut temporarily.
(2) Fit the upper en d of the air pipe to the reed valve and
bracket assembly, then tighten the pipe nut temporarily.
(3) Attach the reed valve an d bracket assembly to the reed
valve bracket “B” a n d tighten the mounting bolts
temporarily.
(4) Tighten the nuts on both ends of the air pipe to the specified
torque.
Caution
The tightening torque of the reed valve side nut and
that of the exhaust manifold side nut are different
from each other.
Be sure to tighten each nut correctly to the specified
torque.
(5) Tighten the reed valve and bracket mounting bolts to
the specified torque.
(6) Tighten the pipe clamp bolt.
PWEE9520-B
E
July 1999Mitsubishi Motors Corporation Added

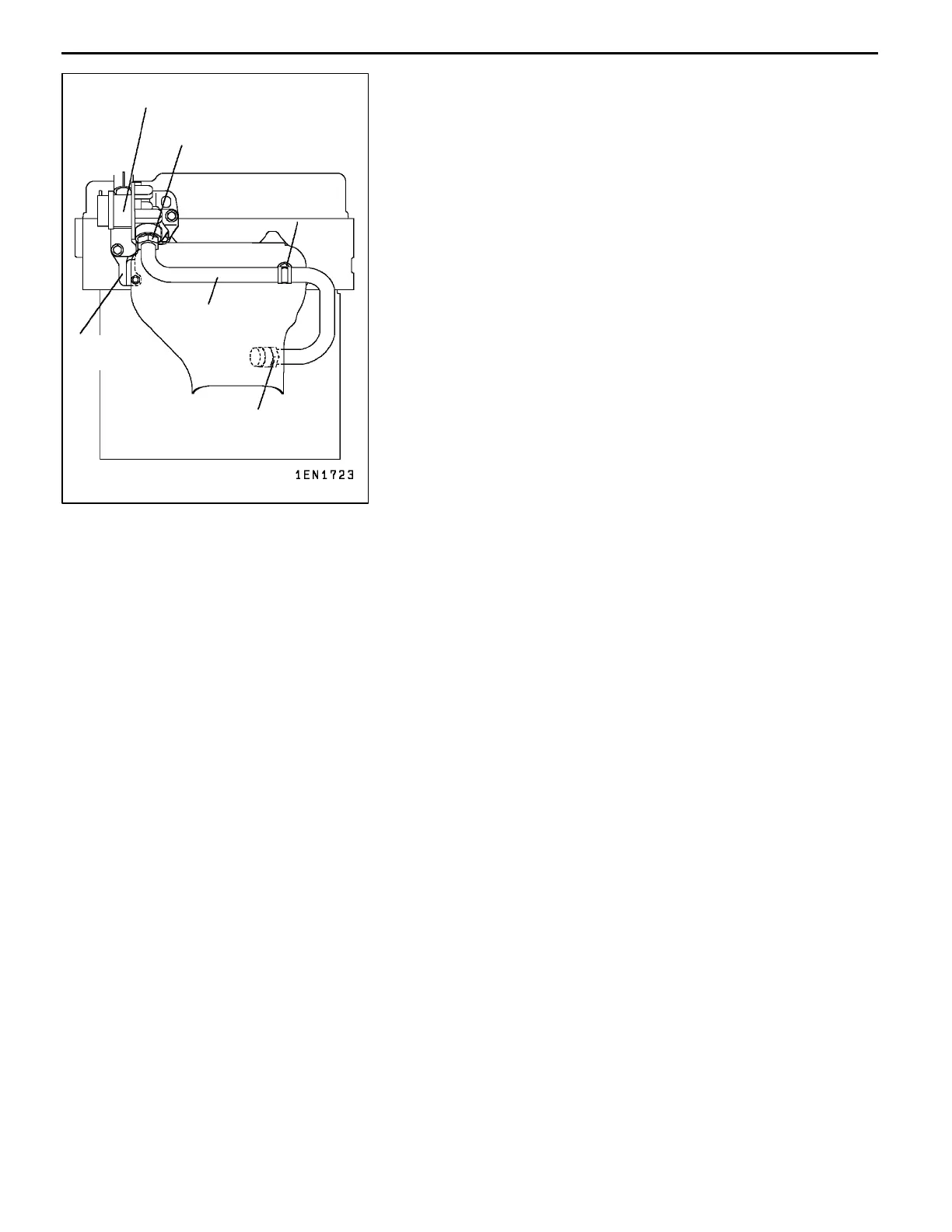

Reed valve and bracket
Pipe nut (reed valve side)
Pipe clamp bolt
Reed valve
bracket “B”
Air pipe
Pipe nut (exhaust
manifold side)
