4G1 ENGINE (E-W) -
Water Pump and Water Hose
11A-6-4
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

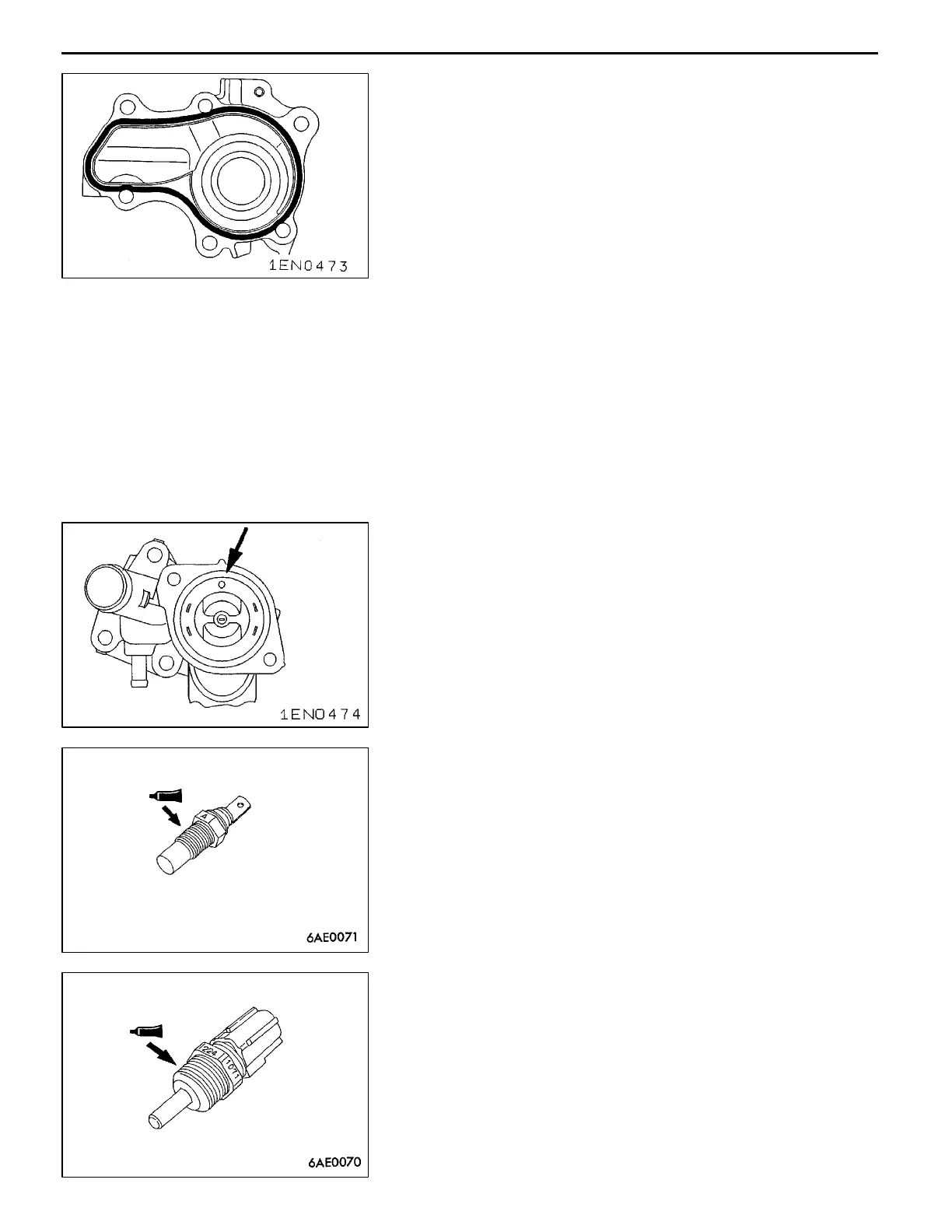

INSTALLATION SERVICE POINTS
"
A
A
WATER PUMP INSTALLATION
(1) Apply a 3 mm bead of form-in-place gasket (FIPG) to
the mounting surface.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"
B
A
O-RING / WATER PIPE INSTALLATION
(1) Replace the water inlet pipe O-rings with new ones, then
apply water to the O-rings so that they can be inserted
easily into the water pump a nd thermostat case.
Caution
1. Do not apply engine oil or any other oily substance
to the O-rings.
2. Secure the water pipe after the thermostat case
has been installed.
"
C
A
THERMOSTAT INSTALLATION
(1) Fit the thermostat such that its jiggle valve is at the top.
"
D
A
WATER TEMPERATURE GAUGE UNIT
INSTALLATION
(1) If the water temperature gauge unit is to be reused, apply
the specified sealant to its thread.
Specified sealant:
3M ATD Part No. 8660 or equivalent.
"
E
A
WATER TEMPERATURE SENSOR INSTALLATION
(1) If t he water temperature sensor is to be reused, apply
the specified sealant to its thread.
Specified sealant:
3M Nut Locking Part No. 4171 or equivalent.
To Next Page
