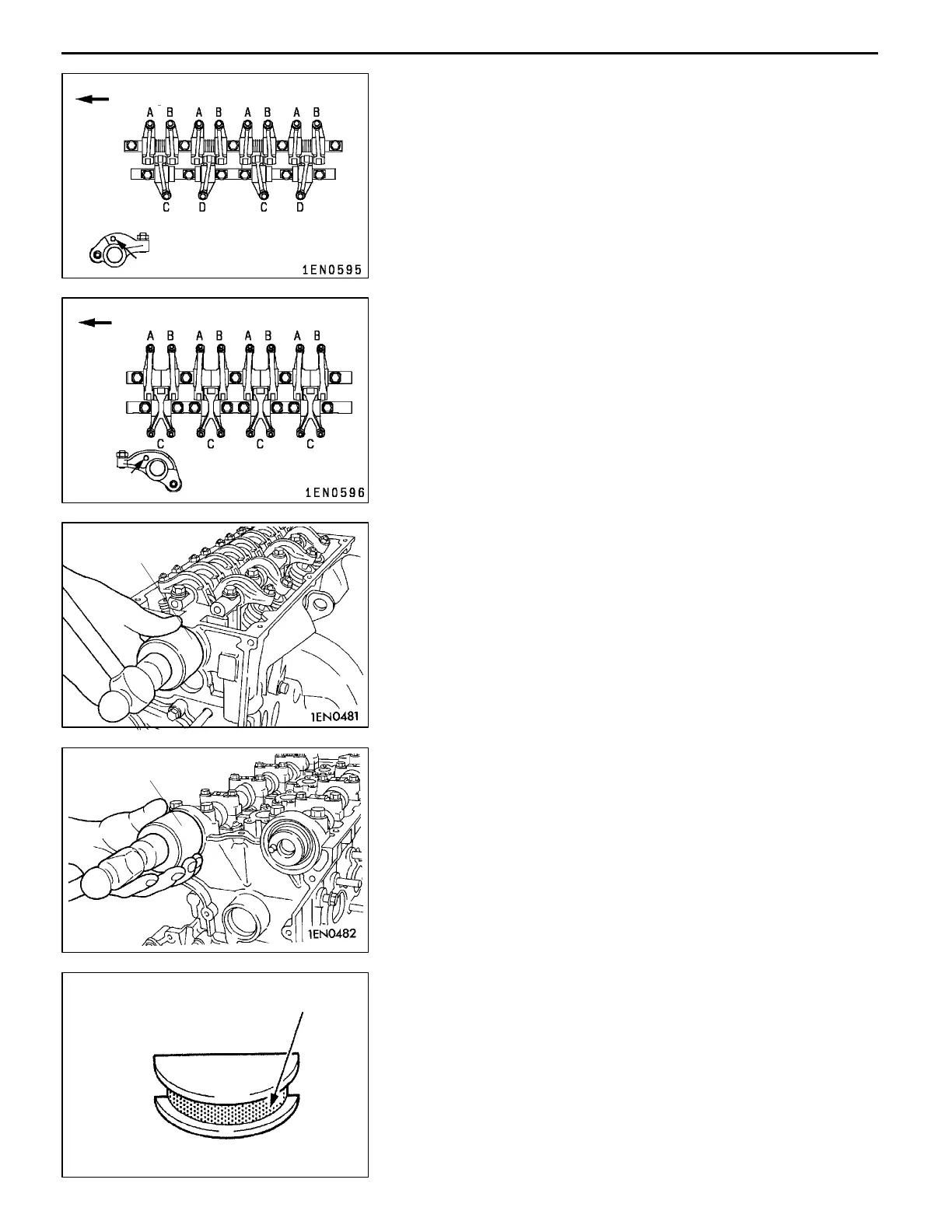

4G1 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-8
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
"
E
A
ROCKER ARM / ROCKER SHAFT ASSEMBLY
INSTALLATION
(1) Assemble the rocker arms and rocker shaft, paying
attention to the identification marks. Then mount the
assembly on the cylinder head.
"
F
A
CAMSHAFT OIL SEAL INSTALLATION
"
G
A
SEMI-CIRCULAR PACKING INSTALLATION
(1) Apply th e specified sealant to the area shown.
Specified sealant:
3M ATD Part No. 8660 or equivalent
PWEE9520-A
E
Dec. 1998Mitsubishi Motors Corporation Added
Timing belt side
SOHC 12-VALVE
Identification mark
Timing belt side
SOHC 16-VALVE
Identification
mark
MD998713
SOHC
MD998713
DOHC
Sealant
DEN0053
