Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Alternator and Ignition System
11A-3-2
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

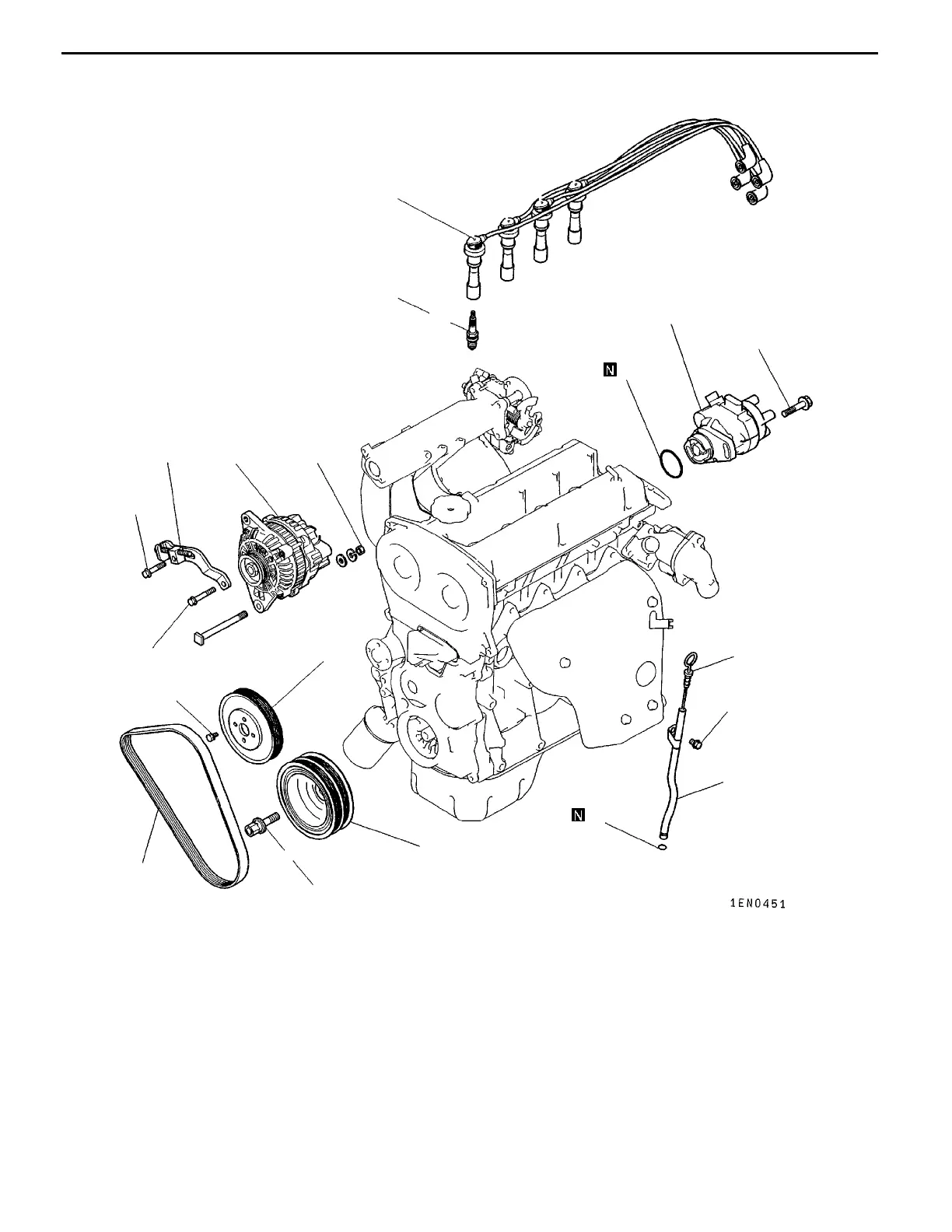

REMOVAL AND INSTALLATION <DOHC>
22 Nm
6
7
44 Nm
23 Nm
4
103 Nm
8
9
3
2
23 Nm
1
25 Nm
10
13
12
11 Nm
9Nm
5
11
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Drive belt*
5. Water pump pulley
6. Alternator brace
7. Alternator
A
A
""
B
A
8. Crankshaft bolt
9. Crankshaft pulley
10. Spark plug cable
11. Spark plug
"
A
A
12. Distributor
13. O-ring
NOTE
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
