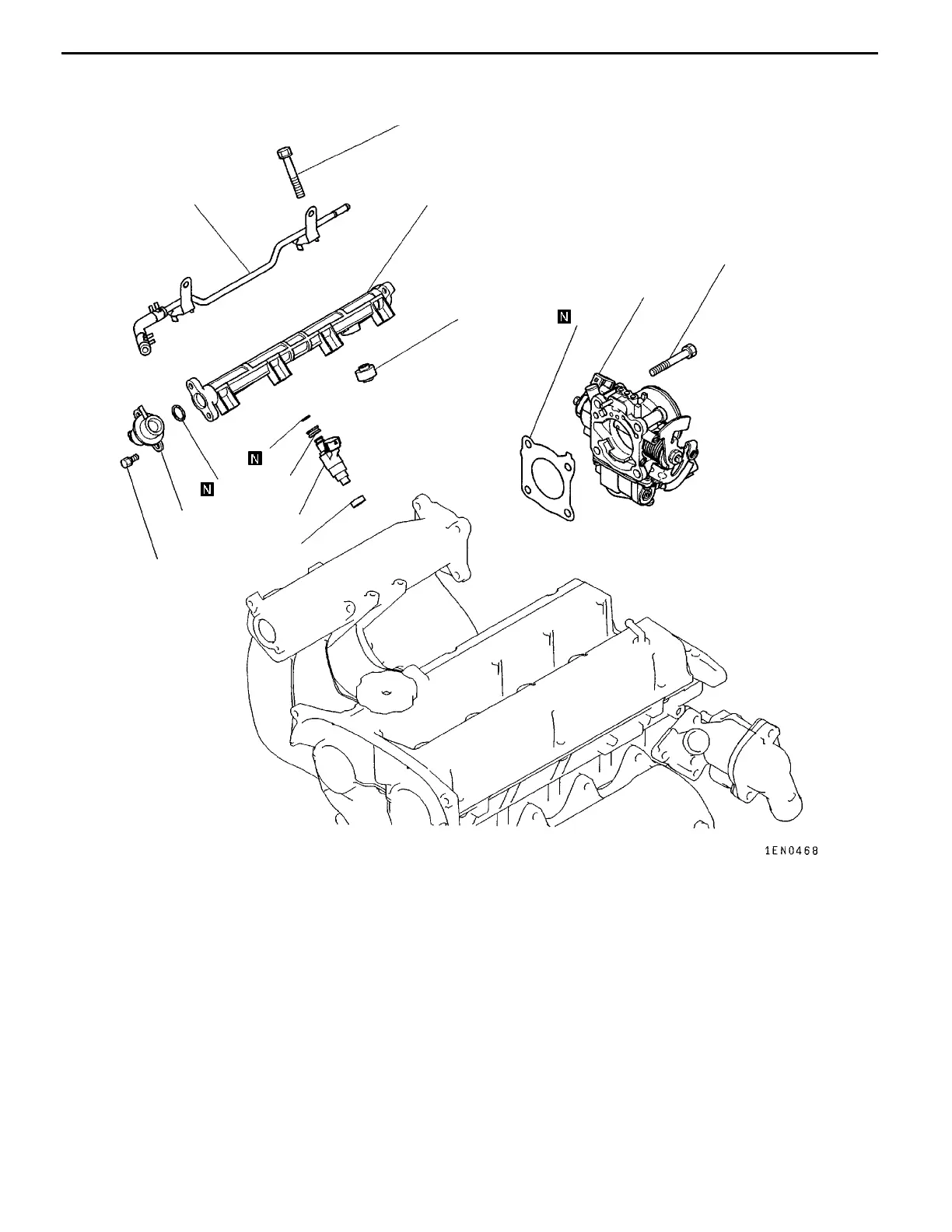

REMOVAL AND INSTALLATION <DOHC>
11 Nm
11
6
2
1
18 Nm
9Nm
3
5
4
9
10
8
7
Removal steps
1. Throttle body assembly
2. Gasket
3. Fuel return pipe
"
B
A
4. Fuel pressure regulator
5. O-ring
6. Insulator
7. Insulator
"
A
A
8. Injector
9. O-ring
10. Grommet
11. Delivery pipe
