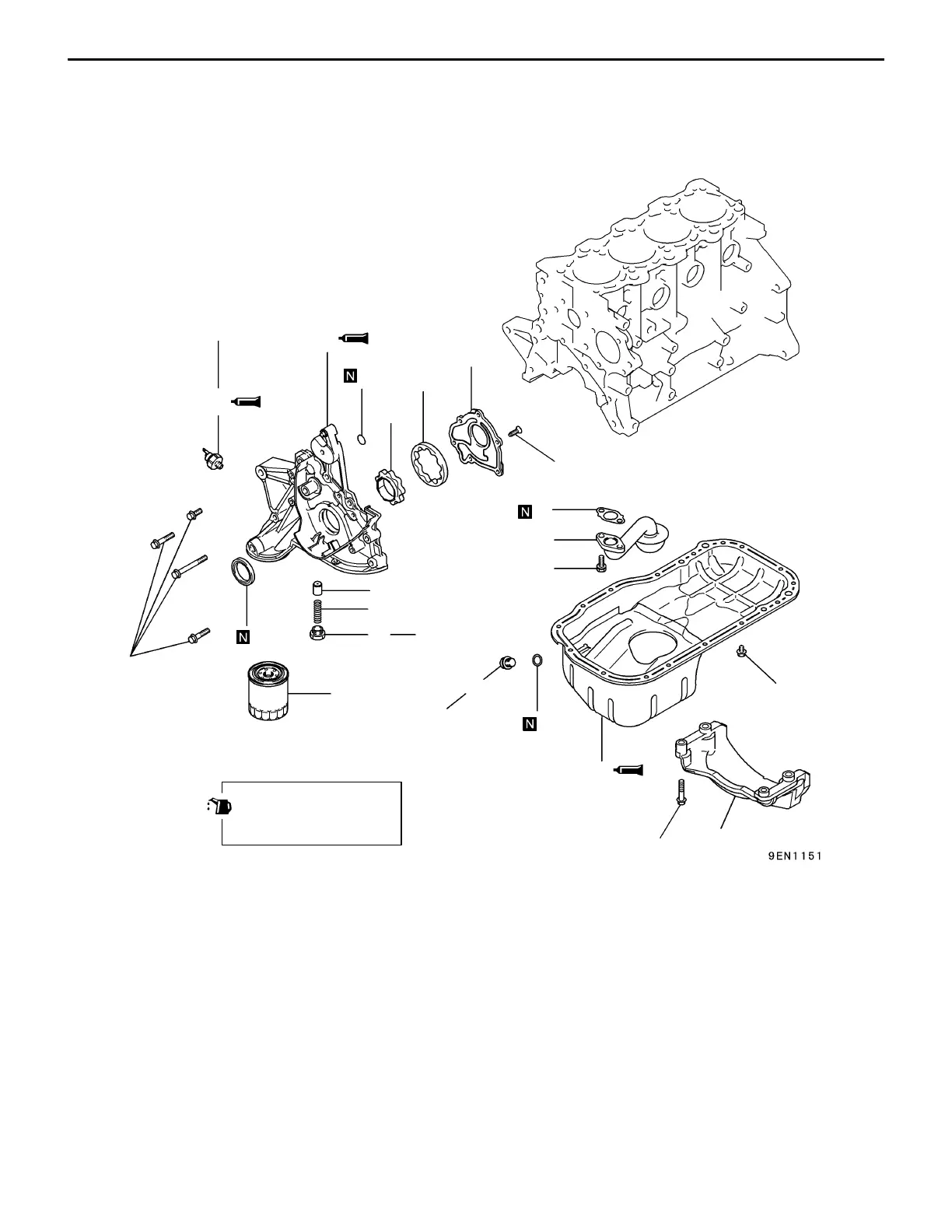

10. FRONT CASE AND OIL PUMP
REMOVAL AND INSTALLATION <SOHC (4G92, 4G93)>
10 Nm
10 Nm
19 Nm
44 Nm
14 Nm
39 Nm
9 Nm
Apply engine oil to all
moving parts before
installation.
5
4
3
2
9
10
1
12
17
16
15
14
8
6
13
11
7
23 Nm
Removal steps
"FA 1. Oil pressure switch
"EA 2. Oil filter
3. Drain plug
4. Drain plug gasket
5. Transmission stay
AA""DA 6. Oil pan
7. Oil screen
8. Oil screen gasket
9. Relief plug
10. Relief spring
11. Relief plunger
"CA 12. Oil seal
"BA 13. Oil pump case
14. O-ring
15. Oil pump case cover
AC""AA 16. Outer rotor
AC""AA 17. Inner rotor
PWEE9502-K
