Mitsubishi 4G9 - Injector and Fuel Pump Assembly (GDI) (from 2001 Model for Carisma, Space Star and Galant)

4G9 ENGINE (E–W) – Injector and Fuel Pump Assembly (GDI)
11A-6c-1a

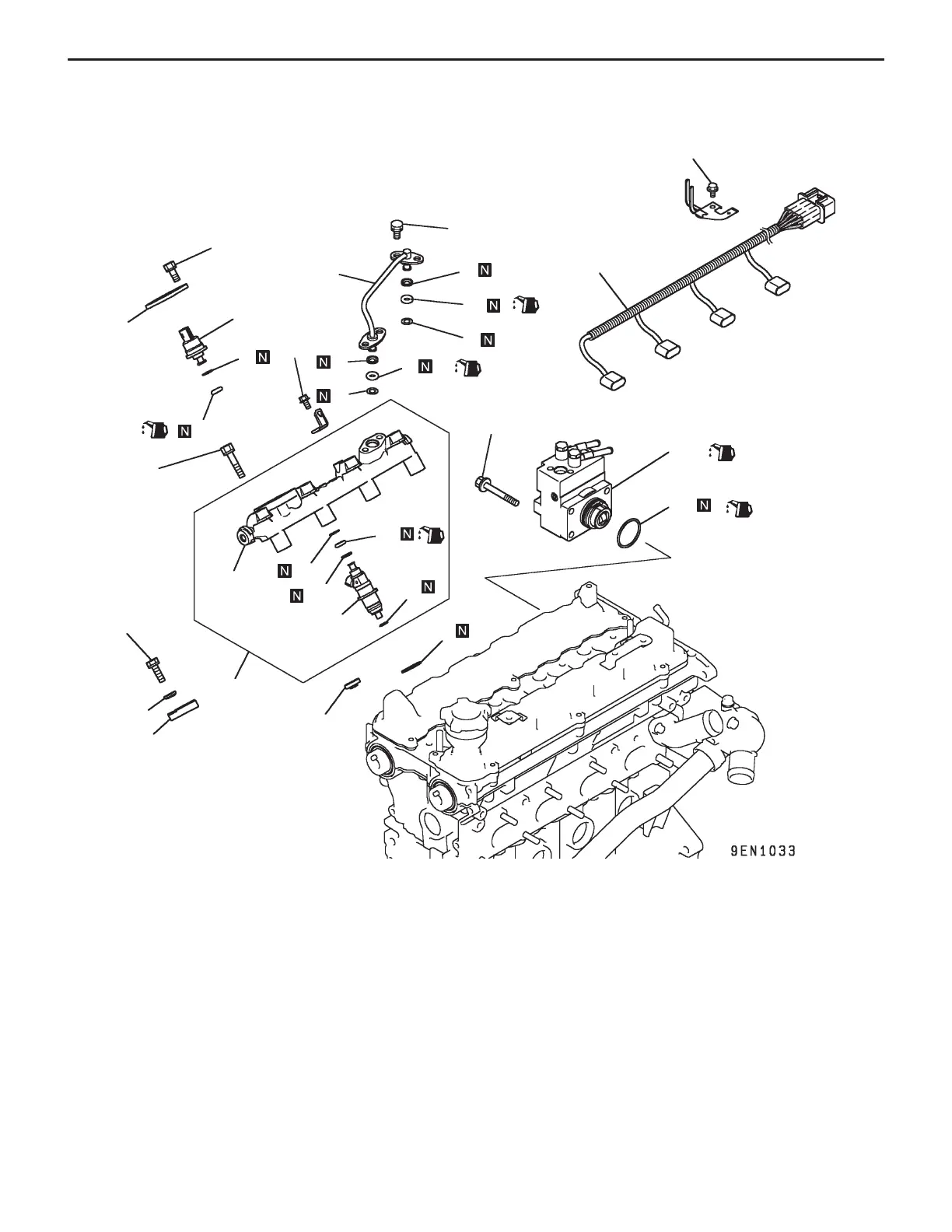

REMOVAL AND INSTALLATION
<From 2001 model for CARISMA, SPACE STAR and GALANT>
14
13
8
10
12
1
9
5
6
3
2
15
4
16
17
21
22
11 Nm
22 Nm
7
11
18
19
20
23 Nm
11 Nm
7
8
9
11 Nm
11 Nm
17 Nm
Removal steps
1. Injector harness
2. Flange
"IA 3. Fuel pressure sensor
"IA 4. Backup ring
"IA 5. O-ring
"HA 6. Fuel pipe
"HA 7. Backup ring
"HA 8. O-ring
"HA 9. Backup ring
"GA 10. Fuel pump
"GA 11. O-ring
12. Washer
13. Injector holder
"BA 14. Delivery pipe and injector
15. Insulator
16. Injector gasket
"AA 17. Corrugated washer
"AA 18. Backup ring
"AA 19. O-ring
"AA 20. Backup ring
21. Injector
22. Delivery pipe
PWEE9502-L
E
Apr. 2003Mitsubishi Motors Corporation Revised
