Mitsubishi 4G9 - Crankshaft Front Oil Seal Installation; Oil Pan;Upper Oil Pan;Lower Oil Pan Installation

4G9 ENGINE (E–W) – Front Case and Oil Pump
11A-10-5
PWEE9502
E
May 1995Mitsubishi Motors Corporation

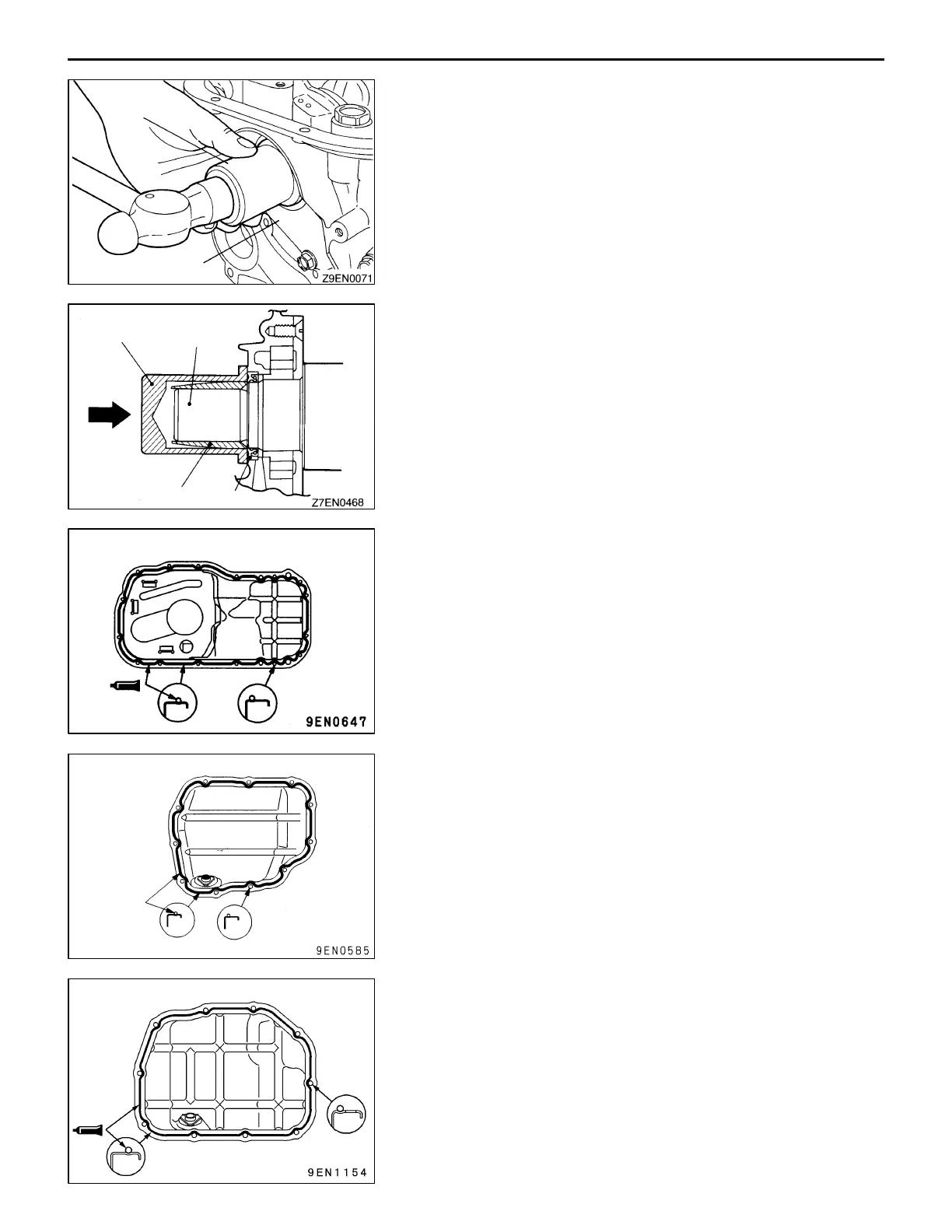

"CA CRANKSHAFT FRONT OIL SEAL INSTALLATION
Using the special tool, knock the oil seal into the oil pump
case.
"DA OIL PAN/UPPER OIL PAN/LOWER OIL PAN
INSTALLATION
(1) Remove all the remaining gasket from the mating surfaces
using a scraper or a wire brush.
(2) Apply a 4 mm diameter bead of sealant to the oil pan
flange.
See “Form-In-Place Gasket” in “SPECIFICATIONS”.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
(3) Install the oil pan within 15 minutes after applying the
sealant.
PWEE9502-K
E
Jun. 2002Mitsubishi Motors Corporation Revised
MD998717
Oil pump case
MD998717
Crankshaft
Guide
Oil seal
OIL PAN, UPPER OIL PAN
Bolt hole
portion
Groove
portion
LOWER OIL PAN <Except for PAJERO io>
Bolt hole
portion
4 mm
diameter
bead
sealant
Groove portion
Bolt hole
portion
Groove
portion
LOWER OIL PAN <For PAJERO io>
