4G9 ENGINE (E–W) – Alternator and Ignition System
11A-3-6
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation Added

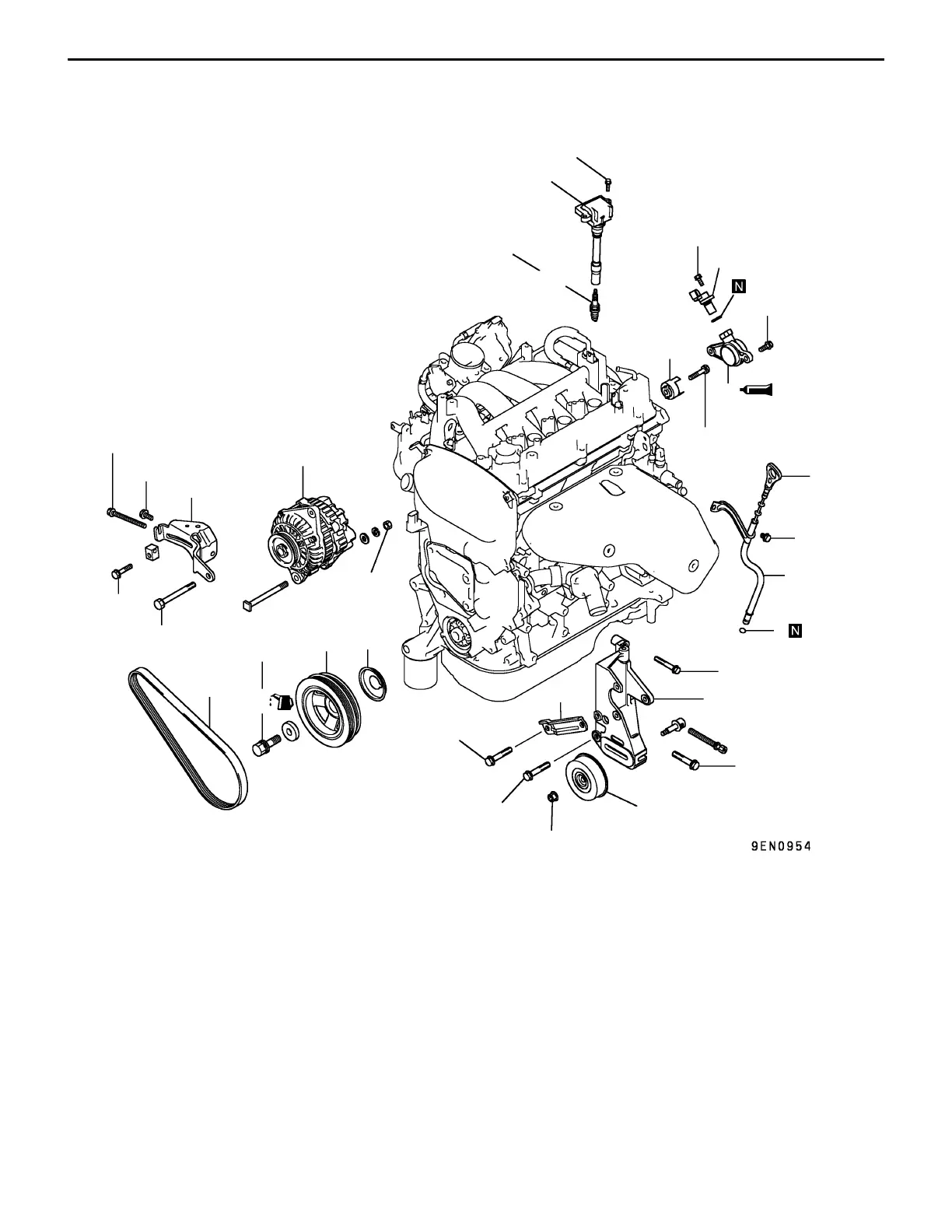

REMOVAL AND INSTALLATION <DOHC–GDI for PAJERO io>
15
21 Nm
9 Nm
23 Nm
5 Nm
44 Nm
182 ± 4 Nm
3
2
8
7
10
4
1
5
6
10 Nm
25 Nm
21 Nm
11
12
13 Nm
9
44 Nm
49 Nm
44 Nm
44 Nm
23 Nm
13 Nm
14
25 Nm
17
16
3
13
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Drive belt*
5. Alternator
6. Alternator brace
AA""BA 7. Crankshaft bolt
"BA 8. Crankshaft pulley
"BA 9. Front flange
10. Power steering pump pulley
11. Power steering pump bracket stay
12. Power steering pump bracket
13. Ignition coil
14. Spark plug
15. Cam position sensor
"AA 16. Cam position sensor support
17. Cam position sensing cylinder
NOTE:
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
PWEE9502-I
E
Mar. 2001Mitsubishi Motors Corporation Revised
