4G9 ENGINE (E–W) – Intake and Exhaust Manifold
11A-6-2e
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Revised
REMOVAL AND INSTALLATION <SOHC–MPI – REAR WHEEL DRIVE (4G94)>

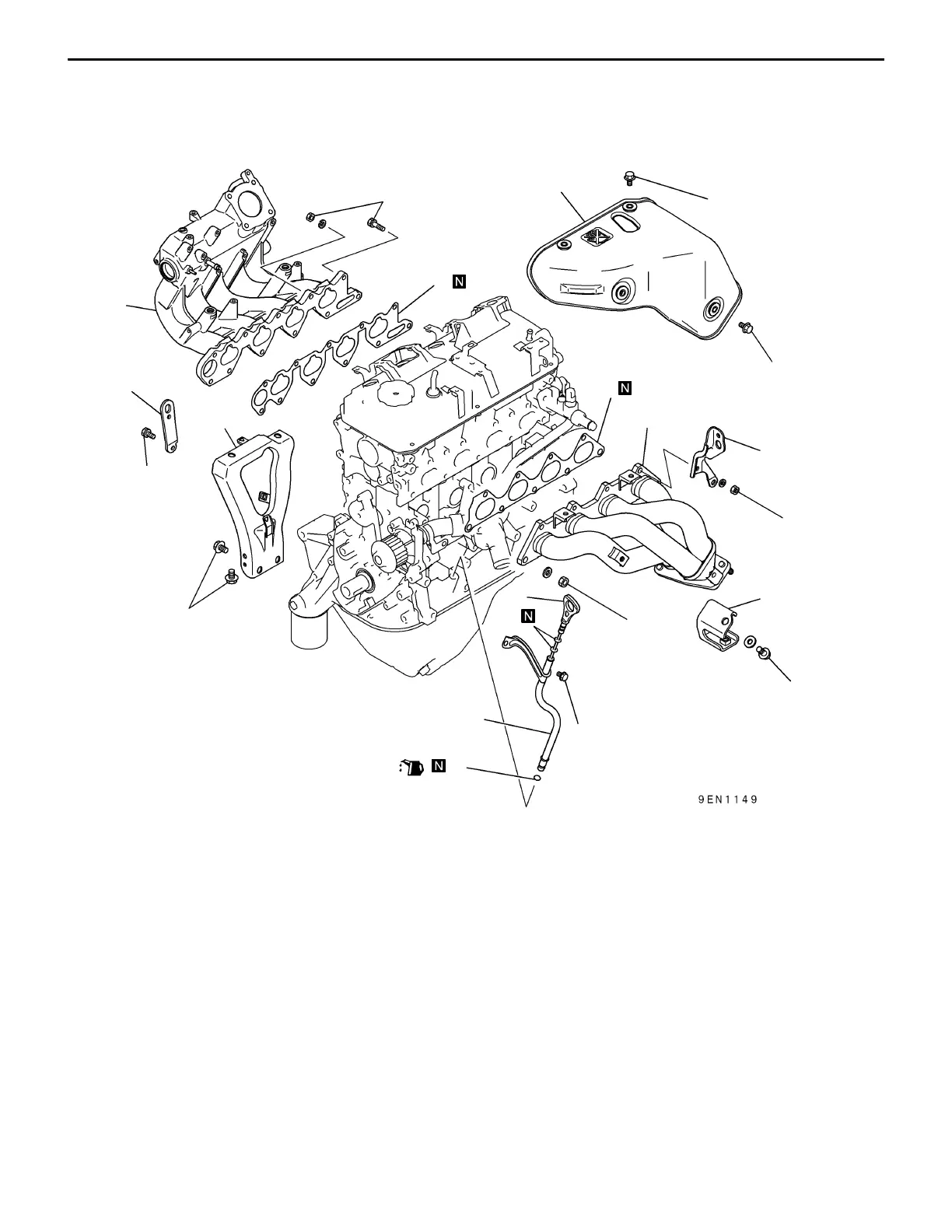

20 Nm
4
6
19 Nm
31 Nm
5
2
3
14 Nm
1
29 Nm
10
18 Nm
9
13 Nm
13 Nm
8
7
12
11
98 Nm
Removal steps
1. Oil level gauge
2. Oil level gauge guide
3. O-ring
4. Engine hanger
5. Intake manifold stay
6. Intake manifold
7. Intake manifold gasket
8. Exhaust manifold cover
9. Engine hanger
"AA 10. Exhaust manifold bracket
11. Exhaust manifold
12. Exhaust manifold gasket
