Mitsubishi 4G9 - Intake and Exhaust Manifold Removal and Installation (SOHC-MPI-Front Wheel Drive (4 G92 and 4 G93- from 2001 Model for Europe))

4G9 ENGINE (E–W) – Intake and Exhaust Manifold
11A-6-2a
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Revised
REMOVAL AND INSTALLATION <SOHC–MPI–FRONT WHEEL DRIVE (4G92 and
4G93–From 2001 model for Europe)>
20 Nm
20 Nm
19 Nm
31 Nm
30 Nm
18 Nm
13 Nm
19 Nm
14 Nm
7
6
5
10
9
14
11
13
4
1
3
2
12
8
44 Nm
35 Nm
19 Nm
13 Nm

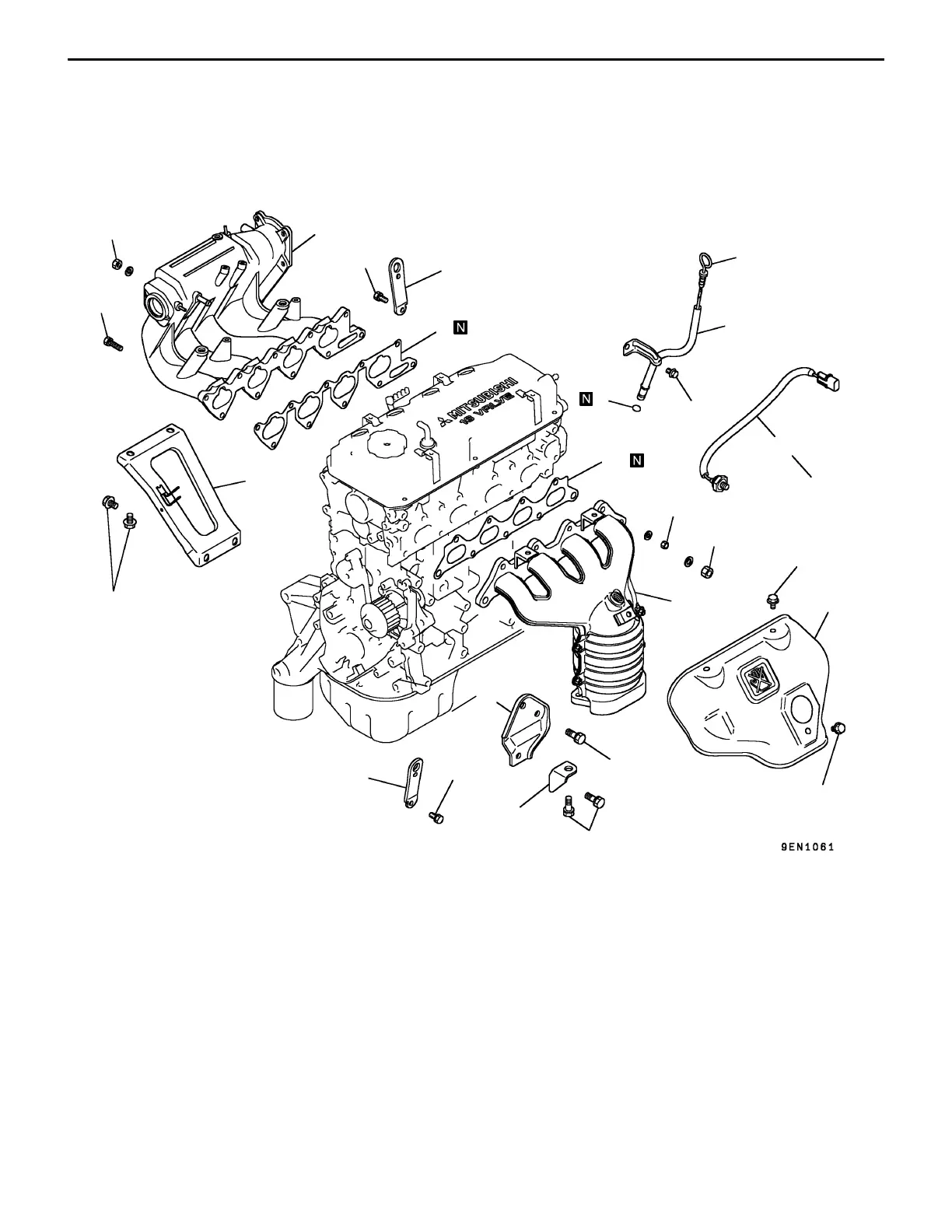

Removal steps
1. Engine hanger
2. Intake manifold stay
3. Intake manifold
4. Intake manifold gasket
5. Oil level gauge
6. Oil level gauge guide
7. O-ring
8. Oxygen sensor
9. Engine hanger
10. Exhaust manifold cover
11. Exhaust manifold bracket B
12. Exhaust manifold
13. Exhaust manifold gasket
14. Exhaust manifold bracket A
PWEE9502-I
E
Mar. 2001Mitsubishi Motors Corporation Revised
