Mitsubishi 4G9 - Intake and Exhaust Manifold <4 G94 - GDI for PAJERO Io> Removal and Installation

4G9 ENGINE (E-W) -
Intake and Exhaust Manifold <4G94- GDI for PAJERO io>
11A-6d-1

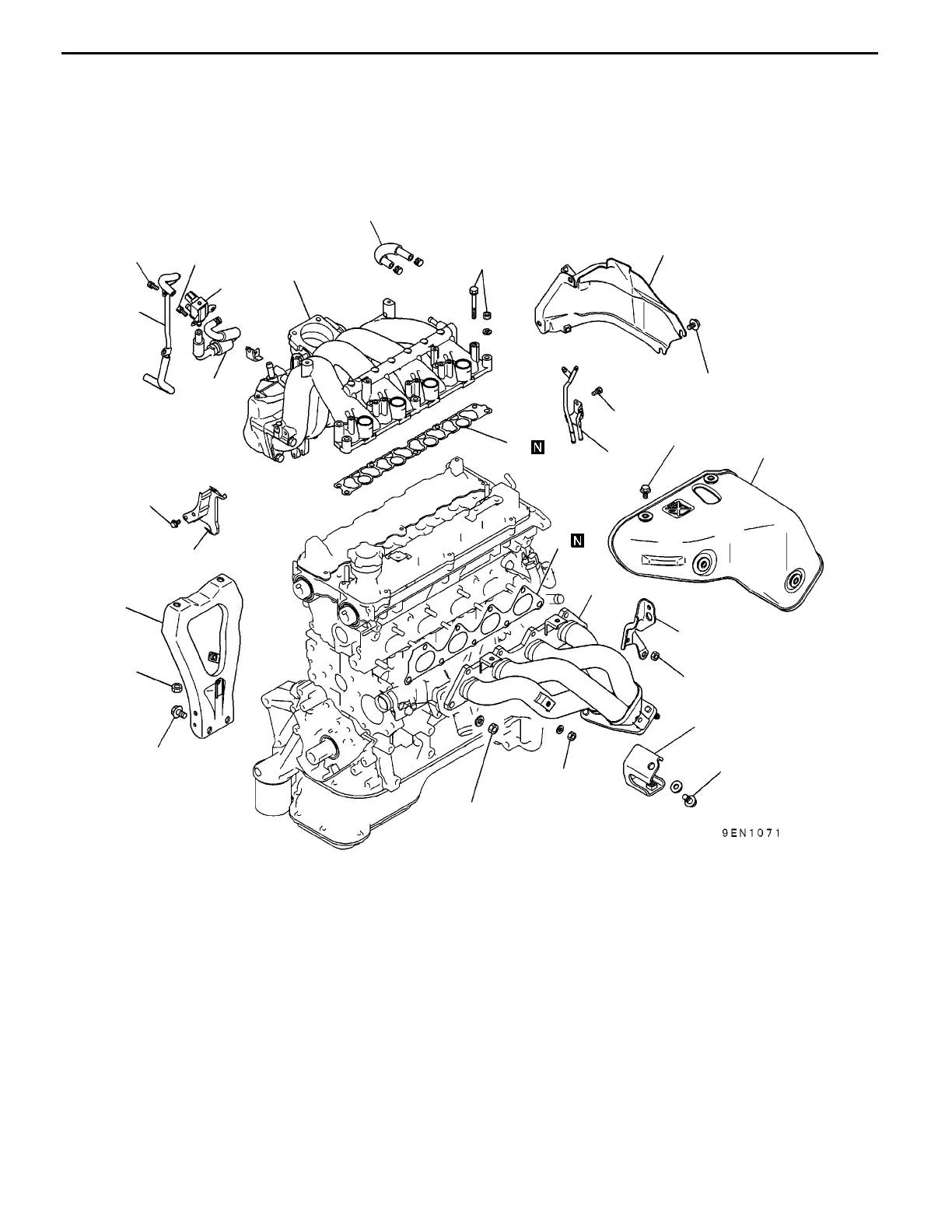

6d. INTAKE AND EXHAUST MANIFOLD
<4G94-GDI for PAJERO io>
REMOVAL AND INSTALLATION
20 Nm
31 Nm
23 Nm
9Nm
14
13
8
11
10
12
1
9
5
6
7
3
2
4
15
11 Nm
98 Nm
13 Nm
18 Nm
9Nm
29 Nm
9Nm
17 Nm
29 Nm
Removal steps
1. P.C.V. hose
2. Purge hose
3. Vacuum pipe and hose
4. Solenoid valve
5. Fuel pump protector
6. Connector bracket
"
B
A
7. Intake manifold stay
8. Low pressure fuel pipe
9. Intake manifold
10. Intake manifold gasket
11. Exhaust manifold cover
12. Engine hanger
"
A
A
13. Exhaust manifold bracket
14. Exhaust manifold
15. Exhaust manifold gasket
PWEE9502-H
E
July 2000Mitsubishi Motors Corporation Added
